9.4

Internal SCSI Data Cable

9.4.1

Removing the Internal SCSI Cable

1. Shut down and power off the system.
See Section 6.1 "Powering Off the System."
2. Detach all external cables from the rear panel except the power cord.
3. Remove the cover and attach a wrist strap.
See Chapter 7.
4. Unplug the DC power, SCSI data, diskette data, speaker/LED, and CD-ROM
audio cables from the system board.
See
FIGURE 9-12
See Section 11.1.1 "Removing an SBus Card."
Metal cable clips
on chassis floor
Metal cable clips
on chassis wall
Diskette data connector
SCSI data connector
DC power connector

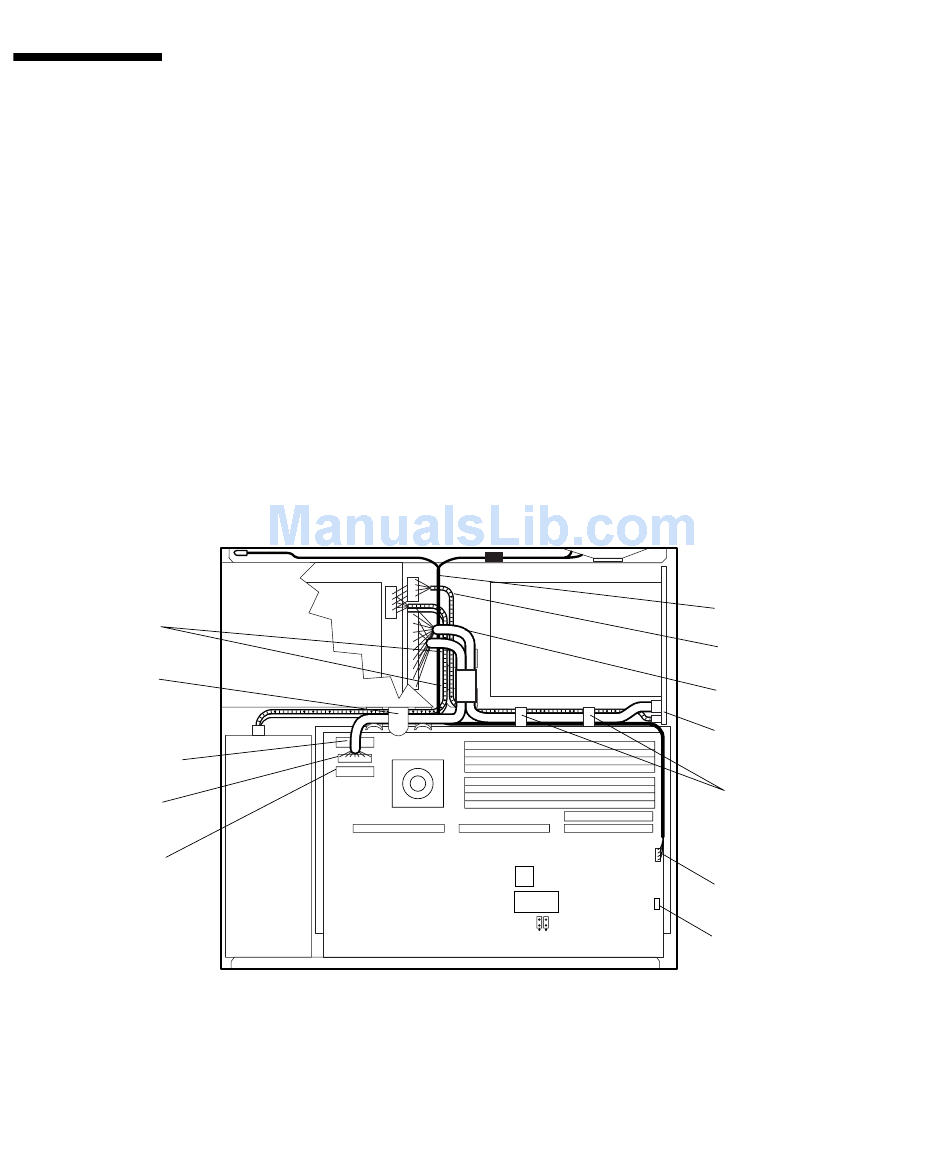

FIGURE 9-12
9-14 SPARCstation 5 Model 110 Service Manual • November 1996
. You may need to remove an SBus card to access the audio connector.
System Board Cable Connections
Speaker/LED cable
DC power harness
SCSI data cable
SCSI backplane
Card guide
cable clips
Speaker/LED
connector
CD-ROM audio
connector
