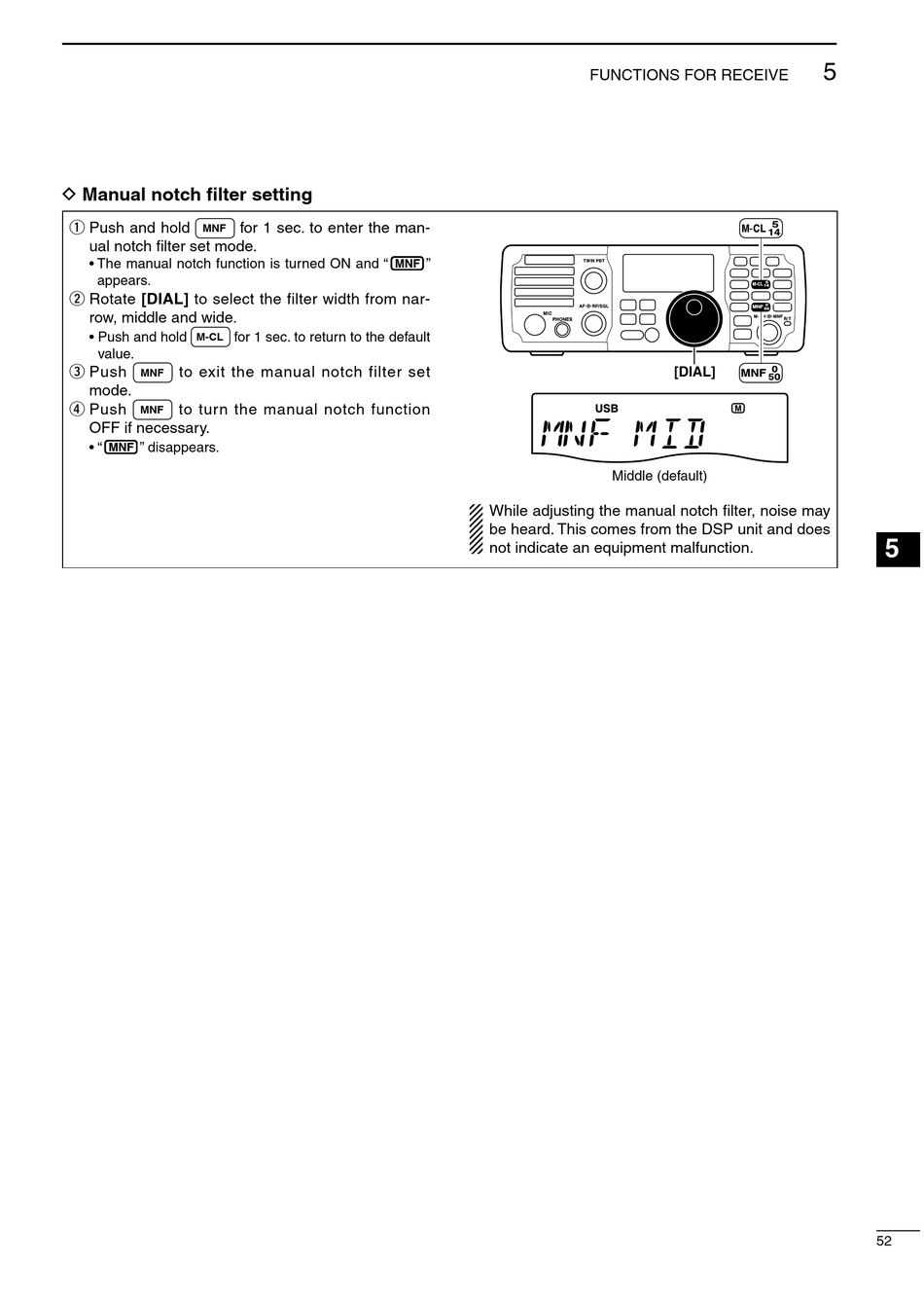

D Manual notch filter setting

q Push and hold
MNF
ual notch filter set mode.
• The manual notch function is turned ON and "
appears.
w Rotate [DIAL] to select the filter width from nar-
row, middle and wide.
• Push and hold for 1 sec. to return to the default
M-CL
value.
e Push to exit the manual notch filter set
MNF
mode.
r Push to turn the manual notch function
MNF
OFF if necessary.
• " " disappears.
for 1 sec. to enter the man-

FUNCTIONS FOR RECEIVE

"
While adjusting the manual notch filter, noise may
be heard. This comes from the DSP unit and does
not indicate an equipment malfunction.
NB NR ANF
METER
V/M 1 A/B 2
SPLIT
= 3.5
1.8
4 5
MW M-CL AGC
10 14 18
7 8
COMP SCAN VOX
21 24 28
.
MODE TS
0
F-INP ENT
RIT MNF
GENE 50
BAND
TUNER FILTER
P.AMP
ATT
M-CH/RIT
SPCH
SET
[DIAL]
Middle (default)
