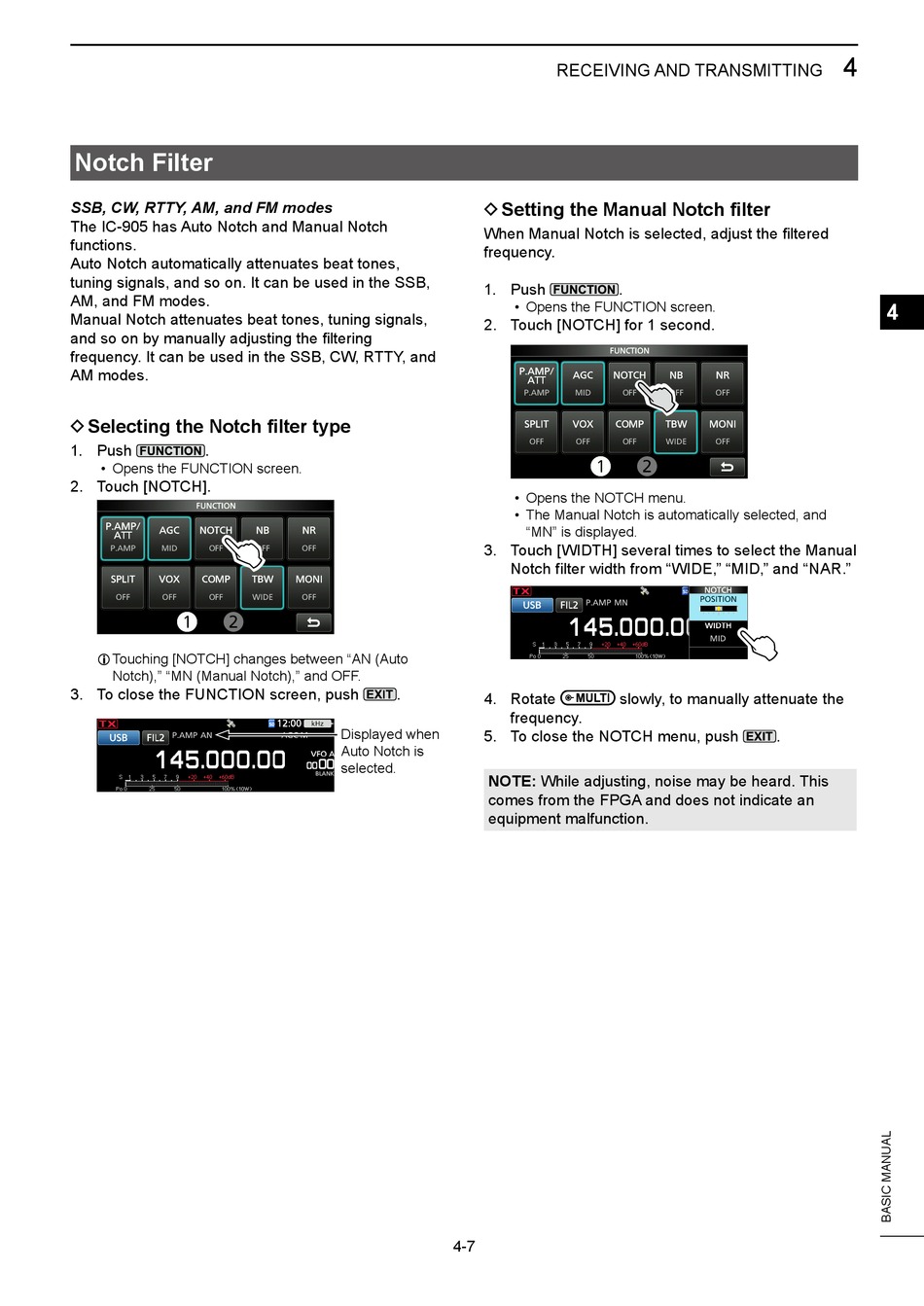

Notch Filter
SSB, CW, RTTY, AM, and FM modes
The IC-905 has Auto Notch and Manual Notch
functions.
Auto Notch automatically attenuates beat tones,
tuning signals, and so on. It can be used in the SSB,
AM, and FM modes.
Manual Notch attenuates beat tones, tuning signals,
and so on by manually adjusting the filtering
frequency. It can be used in the SSB, CW, RTTY, and
AM modes.
D Selecting the Notch filter type
1. Push .
• Opens the FUNCTION screen.
2. Touch [NOTCH].
L Touching [NOTCH] changes between "AN (Auto
Notch)," "MN (Manual Notch)," and OFF.
3. To close the FUNCTION screen, push

D Setting the Manual Notch filter

When Manual Notch is selected, adjust the filtered
frequency.
1. Push
• Opens the FUNCTION screen.
2. Touch [NOTCH] for 1 second.
• Opens the NOTCH menu.
• The Manual Notch is automatically selected, and
3. Touch [WIDTH] several times to select the Manual
Notch filter width from "WIDE," "MID," and "NAR."
.
4. Rotate
frequency.
Displayed when
5. To close the NOTCH menu, push
Auto Notch is
selected.
NOTE: While adjusting, noise may be heard. This
comes from the FPGA and does not indicate an
equipment malfunction.
4-7
RECEIVING AND TRANSMITTING
.
"MN" is displayed.
slowly, to manually attenuate the
4
4
.
