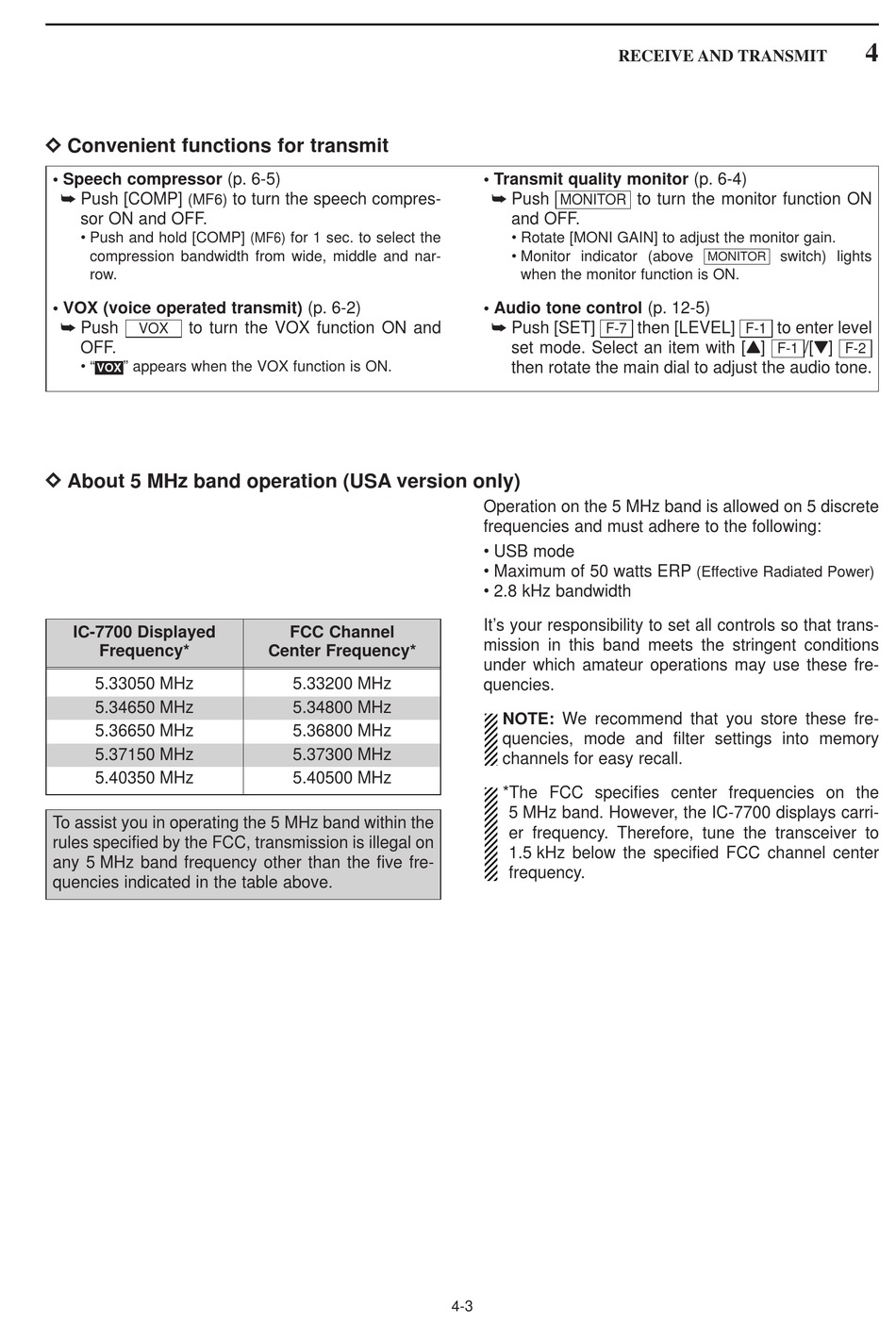

D D Convenient functions for transmit
• Speech compressor (p. 6-5)
➥ Push [COMP]
(MF6)
sor ON and OFF.
• Push and hold [COMP]
compression bandwidth from wide, middle and nar-
row.
• VOX (voice operated transmit) (p. 6-2)
➥ Push
to turn the VOX function ON and
VOX
OFF.
• " " appears when the VOX function is ON.
VOX
D D About 5 MHz band operation (USA version only)
IC-7700 Displayed
Frequency*
5.33050 MHz
5.34650 MHz
5.36650 MHz
5.37150 MHz
5.40350 MHz
To assist you in operating the 5 MHz band within the
rules specified by the FCC, transmission is illegal on
any 5 MHz band frequency other than the five fre-
quencies indicated in the table above.
to turn the speech compres-
for 1 sec. to select the
(MF6)
FCC Channel
Center Frequency*
5.33200 MHz
5.34800 MHz
5.36800 MHz
5.37300 MHz
5.40500 MHz
RECEIVE AND TRANSMIT
• Transmit quality monitor (p. 6-4)
➥ Push
MONITOR
and OFF.
• Rotate [MONI GAIN] to adjust the monitor gain.
• Monitor indicator (above
when the monitor function is ON.
• Audio tone control (p. 12-5)
➥ Push [SET]
F-7
set mode. Select an item with [Y]
then rotate the main dial to adjust the audio tone.
Operation on the 5 MHz band is allowed on 5 discrete
frequencies and must adhere to the following:
• USB mode
• Maximum of 50 watts ERP
• 2.8 kHz bandwidth
It's your responsibility to set all controls so that trans-
mission in this band meets the stringent conditions
under which amateur operations may use these fre-
quencies.
NOTE: We recommend that you store these fre-
quencies, mode and filter settings into memory
channels for easy recall.
*The FCC specifies center frequencies on the
5 MHz band. However, the IC-7700 displays carri-
er frequency. Therefore, tune the transceiver to
1.5 kHz below the specified FCC channel center
frequency.
