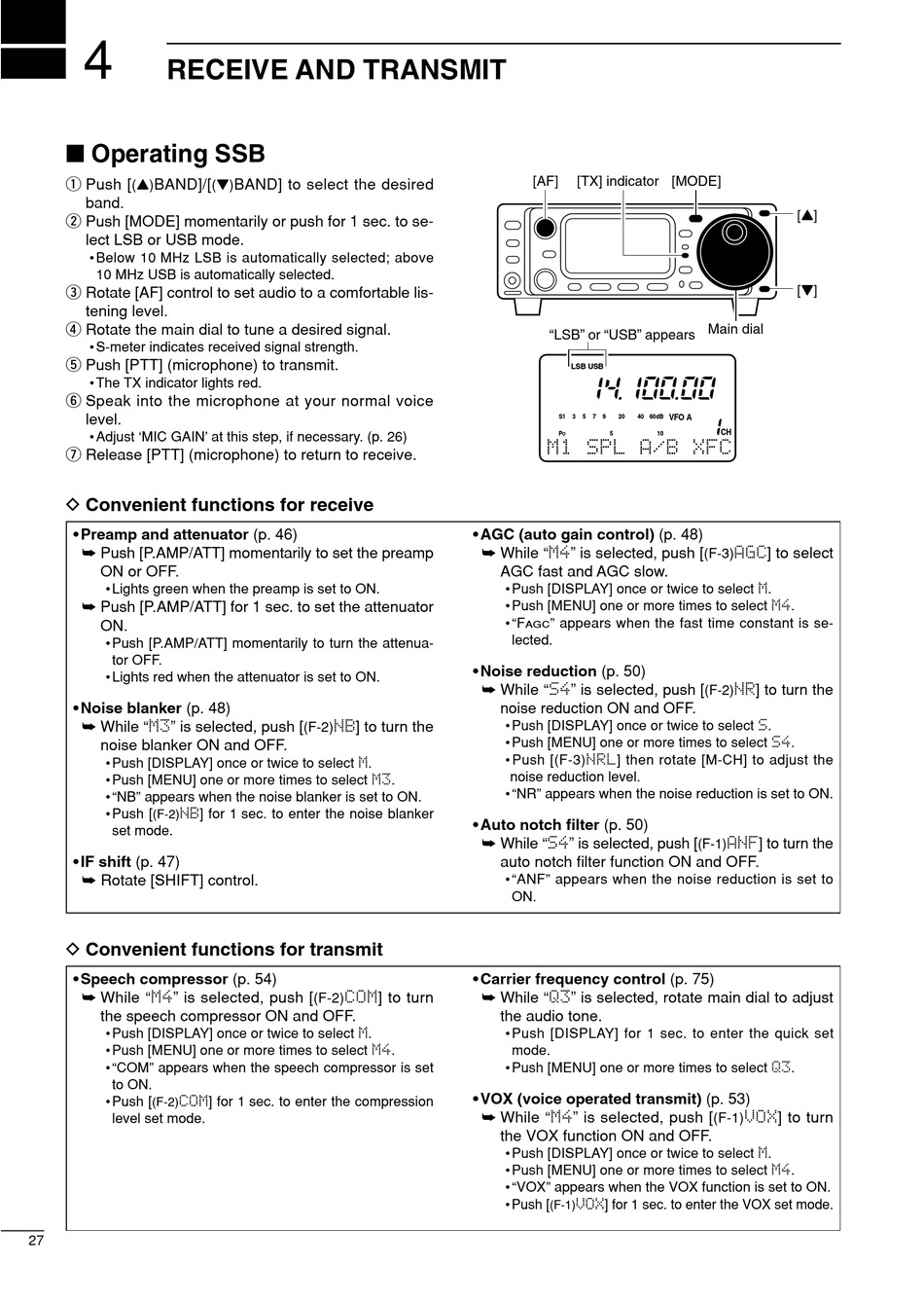

RECEIVE AND TRANSMIT

I Operating SSB

q Push
[ BAND]/[
(Y)
band.
w Push [MODE] momentarily or push for 1 sec. to se-
lect LSB or USB mode.
• Below 10 MHz LSB is automatically selected; above
10 MHz USB is automatically selected.
e Rotate [AF] control to set audio to a comfortable lis-
tening level.
r Rotate the main dial to tune a desired signal.
• S-meter indicates received signal strength.
t Push [PTT] (microphone) to transmit.
• The TX indicator lights red.
y Speak into the microphone at your normal voice
level.
• Adjust 'MIC GAIN' at this step, if necessary. (p. 26)
u Release [PTT] (microphone) to return to receive.
D
Convenient functions for receive
• Preamp and attenuator (p. 46)
➥ Push [P.AMP/ATT] momentarily to set the preamp
ON or OFF.
• Lights green when the preamp is set to ON.
➥ Push [P.AMP/ATT] for 1 sec. to set the attenuator
ON.
• Push [P.AMP/ATT] momentarily to turn the attenua-
tor OFF.
• Lights red when the attenuator is set to ON.
• Noise blanker (p. 48)
➥ While "
" is selected, push [
noise blanker ON and OFF.
• Push [DISPLAY] once or twice to select .
• Push [MENU] one or more times to select
• "NB" appears when the noise blanker is set to ON.
• Push [ ] for 1 sec. to enter the noise blanker
(F-2)
set mode.
• IF shift (p. 47)
➥ Rotate [SHIFT] control.
D
Convenient functions for transmit
• Speech compressor (p. 54)
➥ While "
" is selected, push [
the speech compressor ON and OFF.
• Push [DISPLAY] once or twice to select .
• Push [MENU] one or more times to select
• "COM" appears when the speech compressor is set
to ON.
• Push [
(F-2)
level set mode.
