240 Chapter 9: Meridian Link/CCR interface cabling

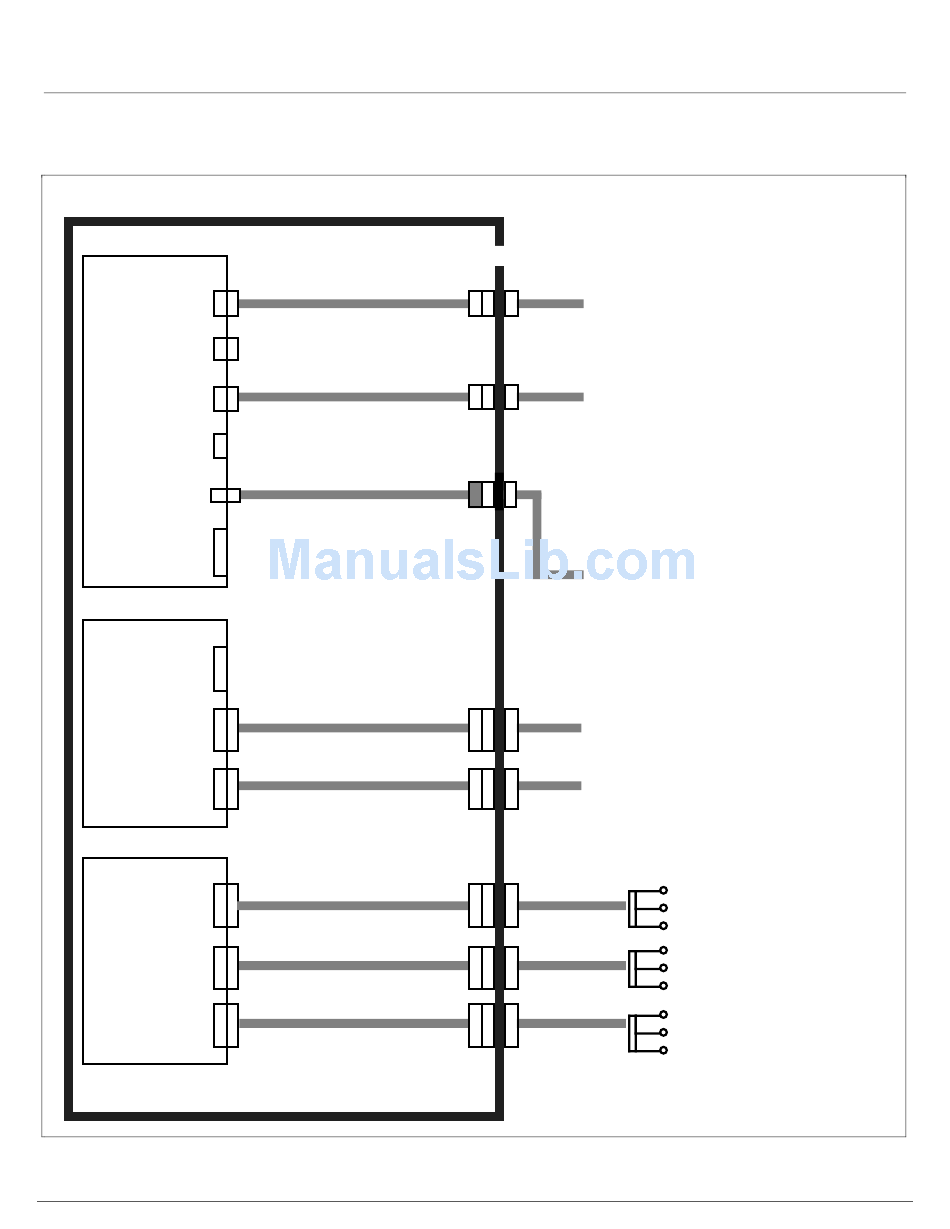

Figure 68
Application Module MVME712AM, MVME705B, NT6D51AA cablingÑI/O subpanel (CCR)
Application Module
MVME712AM Transition card
SP1, Console
SP2, TTY
SP3
SP4
Teledapt
Printer
MVME705B Transition card
SP5
SP3
SP1
NT6D51AA Transition card
SP3
SP2
SP1
553-3202-210 Standard October 1998
(INTERNAL CABLING)
DB9 NT7D79AA
DB9 NT7D46AA
Undefined port
RJ11 NT7D60AA
(MVME712AM)
Not used with AM
DB25 NT7D48AA
DB25 NT7D48AA
DB25 NT7D95AA
DB25 NT7D95AA
DB25 NT7D95AA
(EXTERNAL CABLING)
I/O sub-panel
Customer-supplied
J7
(or NT7D61 cable)
to system console
NT7D61 to SDI
J8
(NT7D46 to SDI Paddle Board)
NT7D71BA to MDF or RJ11
J3
J2
NT7D58 to ESDI or MSDL
J6 NT8D96AE
J5 NT8D96AE
J4 NT8D96AE
A (Port 7)
B (Port 8)
(Not used)
A (Port 4)
To terminals
B (Port 5) and/or
printers
C (Port 6)
A (Port 1)
B (Port 2)
C (Port 3)
