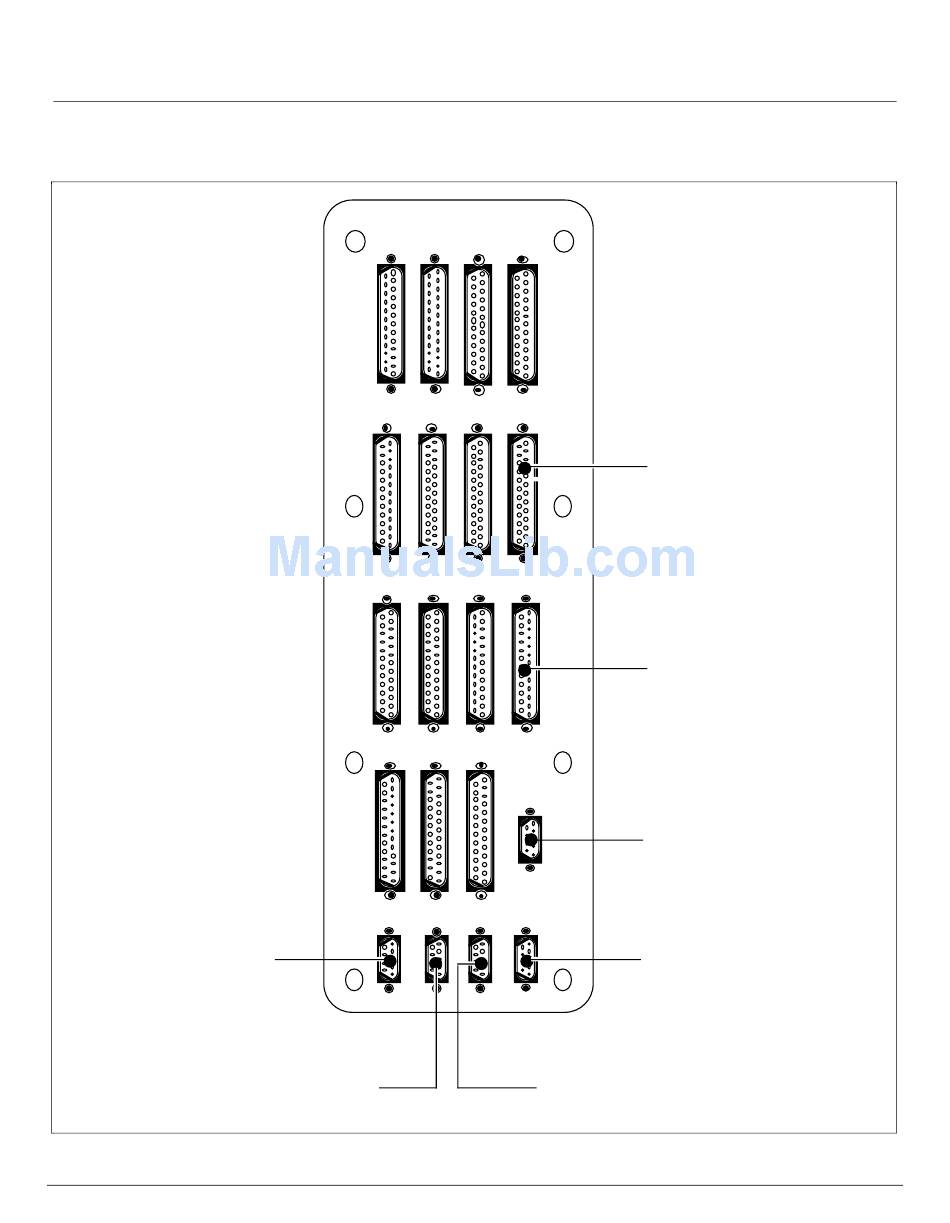

Figure 63
Generic I/O panel (Meridian Link and co-residency)
Meridian Mail
connection
(Link 2)
CARD 5
CONN 3
CARD 5
CONN 2
CARD 5
CONN 1
CARD 6
CONN 3
CARD 1
CONN 4
Meridian 1
OA&M (Conshare)
Meridian Link Release 5C/CCR Release 3C Installation and Upgrade Guide
Chapter 9: Meridian Link/CCR interface cabling 235
CARD 4 CARD 3 CARD 2
CONN 3 CONN 3 CONN 3
CARD 4 CARD 3 CARD 2
CONN 2 CONN 2 CONN 2
CARD 4 CARD 3 CARD 2
CONN 1 CONN 1 CONN 1
CARD 6 CARD 6
CONN 2 CONN 1
ETHERNET
CARD 1 CARD 1 CARD 1
CONN 3 CONN 2 CONN 1
MODEM SYS CONS
External Modem
X.25 host
connection
(Link 1)
Meridian 1
connection
(Link 0)
TCP/IP host
connection
(Link 1) or
LAN-based PC
Console
