170 Chapter 9: Meridian Link/CCR interface cabling
Figure 43

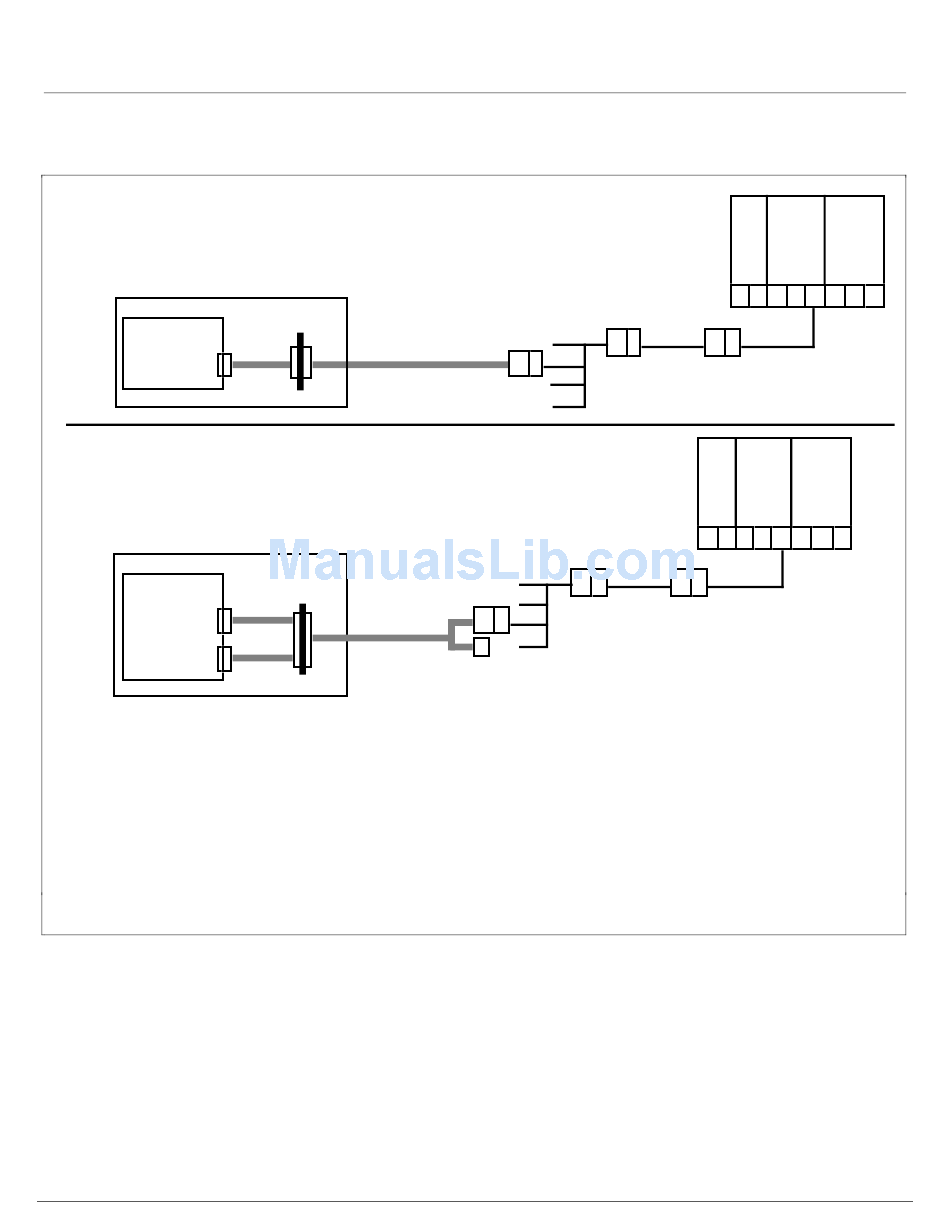

IPE Module Option 11 connections (Part 1)
Meridian 1 Option 11
NTAK01
CPU/Conf
port 0
NTAK03
TDS/DTR
(Note 3)
port 0
port 1
553-3202-210 Standard October 1998
Method 1
Internal
bus
A0368901
SDI
Method 2
J1 (Note 1)
Internal
bus
NTAK19AA
(2-port
cable)
1
3
NT1R03AA
5
Note 4
(octopus
7
cable)
1
Note 4
3
NT1R03AA
5
(octopus
7
cable)
Note 1:
It is recommended that the TDS/DTR card be
installed in position 1. The SDI/DCH card may be
installed in any other position except position 0
(for the CPU/Conf card).
Note 2:
Refer to the Meridian 1 Option 11 Installation
Guide (NTP 553-3011-210) for cross connections.
Note 3:
The NTAK03 TDS/DTR card is not available for Option
11E.
Note 4:
Use an NT1R03D extension cable if you need
additional length.
IPE
Module
Connector
Panel
NT1R03CA
(extension
cable)
IPE
Module
Connector
Panel
NT1R03CA
(extension
cable)
