Hard Drive LED Indicators

The hard drive LEDs, located on each physical drive, are visible on the front
of the server or on the front of the storage enclosure. They provide activity,
online, and fault status for each corresponding drive when configured as a part
of an array and connected to a powered-up controller. LED behavior can vary
depending on the status of other drives in the array.
This section provides the following information about hard drive LEDs:
An illustration detailing the location of each LED
A table of the possible LED configurations and what each combination
means
CAUTION: Read "Hot-Plug Drive Replacement Guidelines" in the Compaq
Servers Troubleshooting Guide before removing a hard drive.
For additional information on troubleshooting hard drive problems, refer to
"Hard Drive Problems" and "SCSI Device Problems" in the Compaq Servers
Troubleshooting Guide.
Use the following illustration in conjunction with Table 6-2 to analyze current
statuses for hot-plug hard drives that are connected to a Compaq Smart Array
Controller.

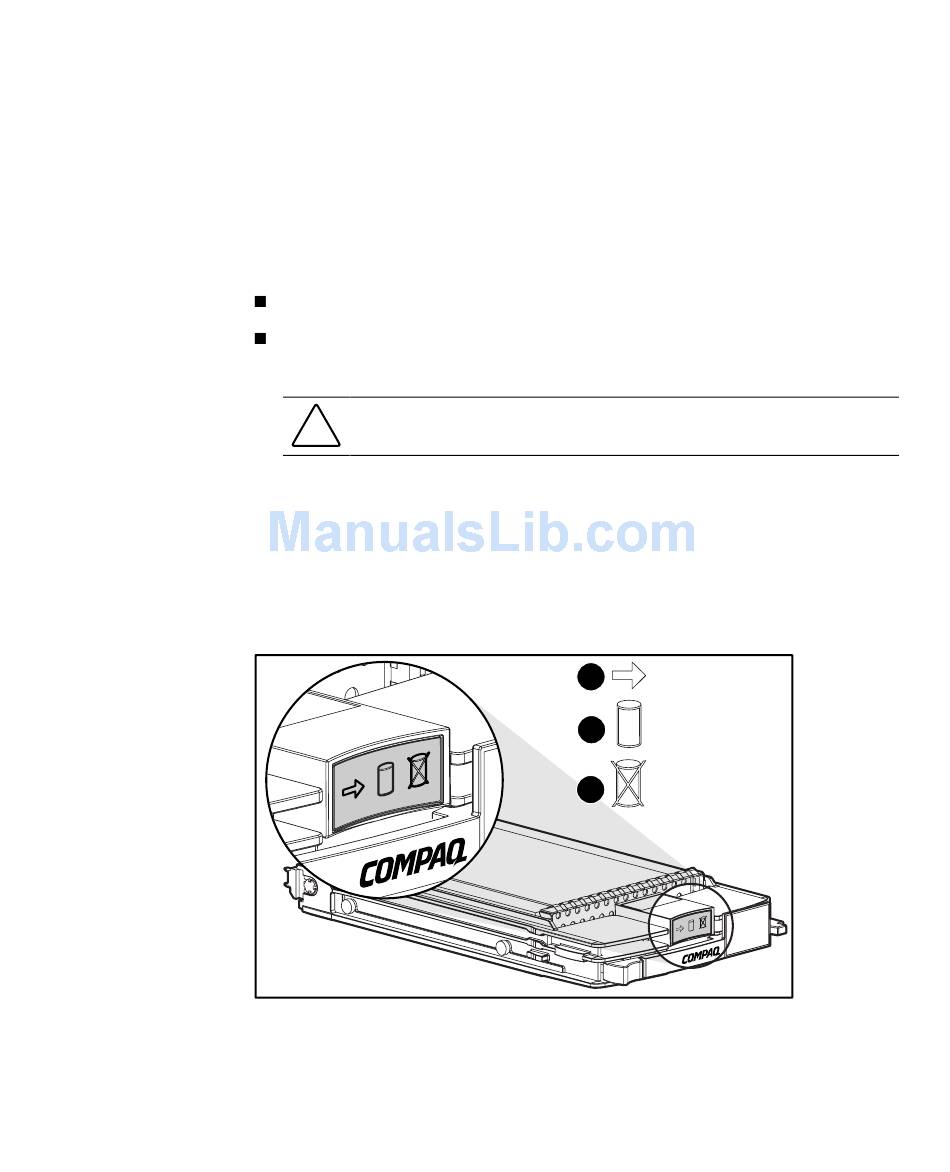

Figure 6-12. Hot-plug hard drive LED indicators,
Drive activity LED
1
Online LED
2
Drive failure LED
3
