Removing And Installing Rear View Camera System - Skoda Octavia III 2013 Workshop Manual

Octavia III 2013 ➤ , Octavia III 2014 ➤
Electrical system - Edition 12.2014

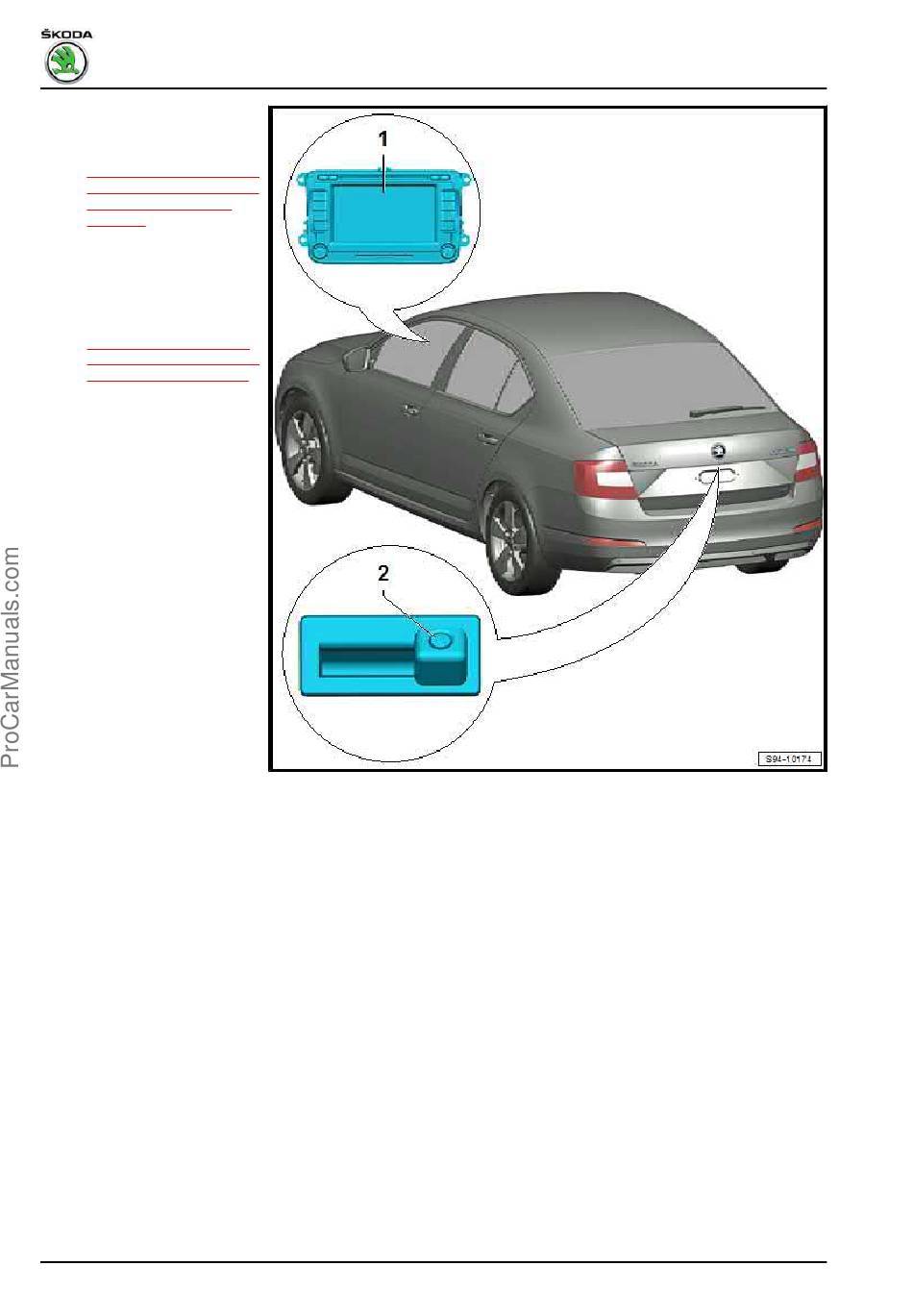

1 - Control unit with display for
radio and navigation - J503-
❑ Removing and installing
⇒ "1.6 Removing and in‐
stalling the Infotainment
display/control unit",
page 33
2 - Rear view camera system -
R189-
❑ firmly connected with
the grip strip
❑ Removing and installing
⇒ "12.3 Removing and
installing rear view cam‐
era system", page 142
12.3 Removing and installing rear view cam‐
era system
Rear view camera - R189- is installed in the grip strip of the lug‐
gage compartment and firmly connected with the grip strip.
The grip strip must be replaced when replacing the rear view
camera.
Removing
– Switch off the ignition and all electrical components.
– Remove the bottom tailgate trim panel ⇒ Body Work; Rep. gr.
70 .
– Disconnect the connectors on the tailgate and release the ca‐
bles leading to the rear view camera.
