Skoda Octavia III 2013 Workshop Manual page 174

Octavia III 2013 ➤ , Octavia III 2014 ➤
Electrical system - Edition 12.2014

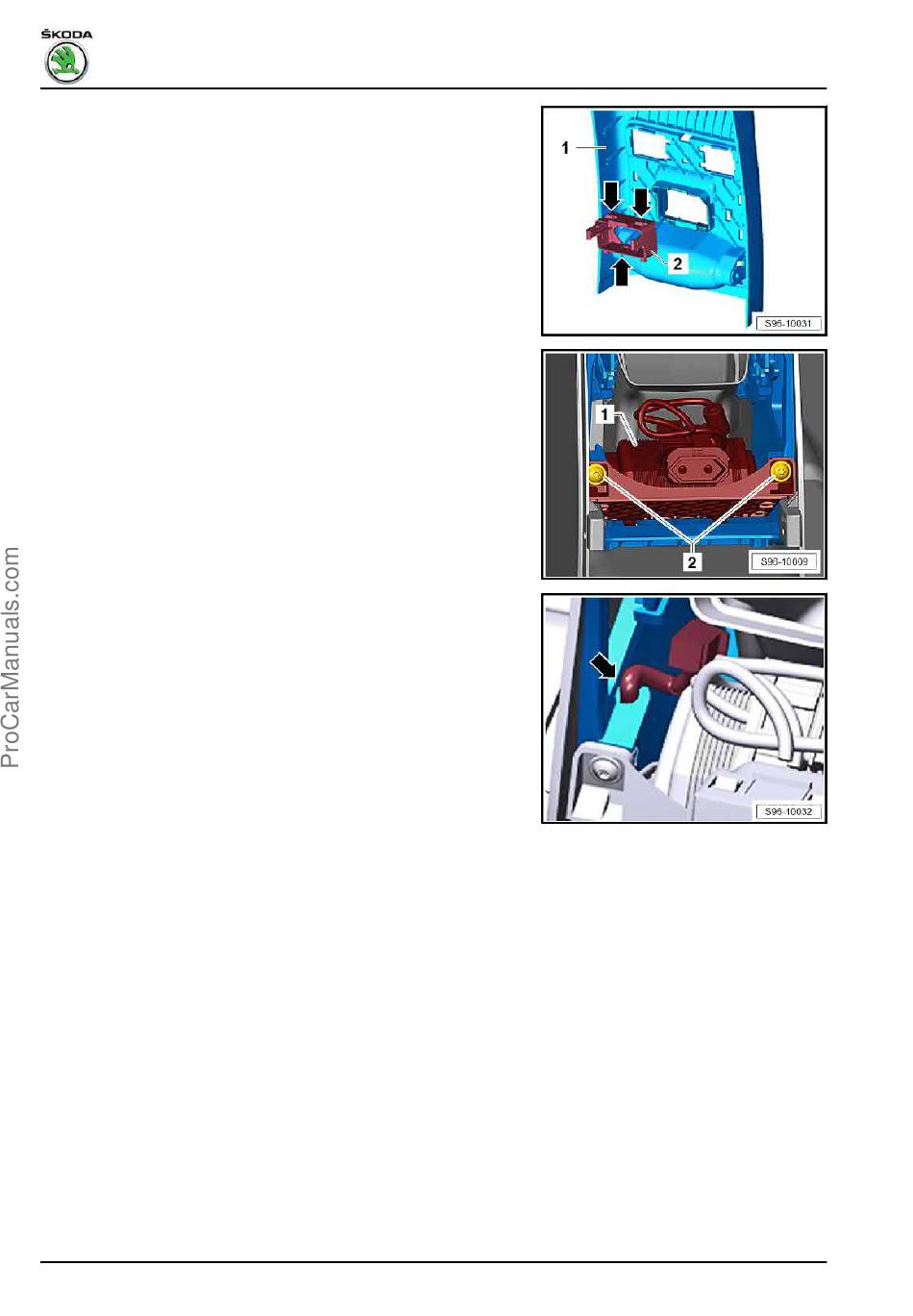

– If required, separate from the latching mechanism -arrow- and
remove socket outlet bracket -2- from the trim -1-.
– Screw out screws -2-, slightly lift inverter with socket -1- and
push it out of the centre console.
– Release connector and pull it off.
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
– Before inserting the trim with the socket outlet into the centre
console, clip the wiring harness into the clip -arrow-.
166
Rep. gr.96 - Lights, bulbs, switches - interior
