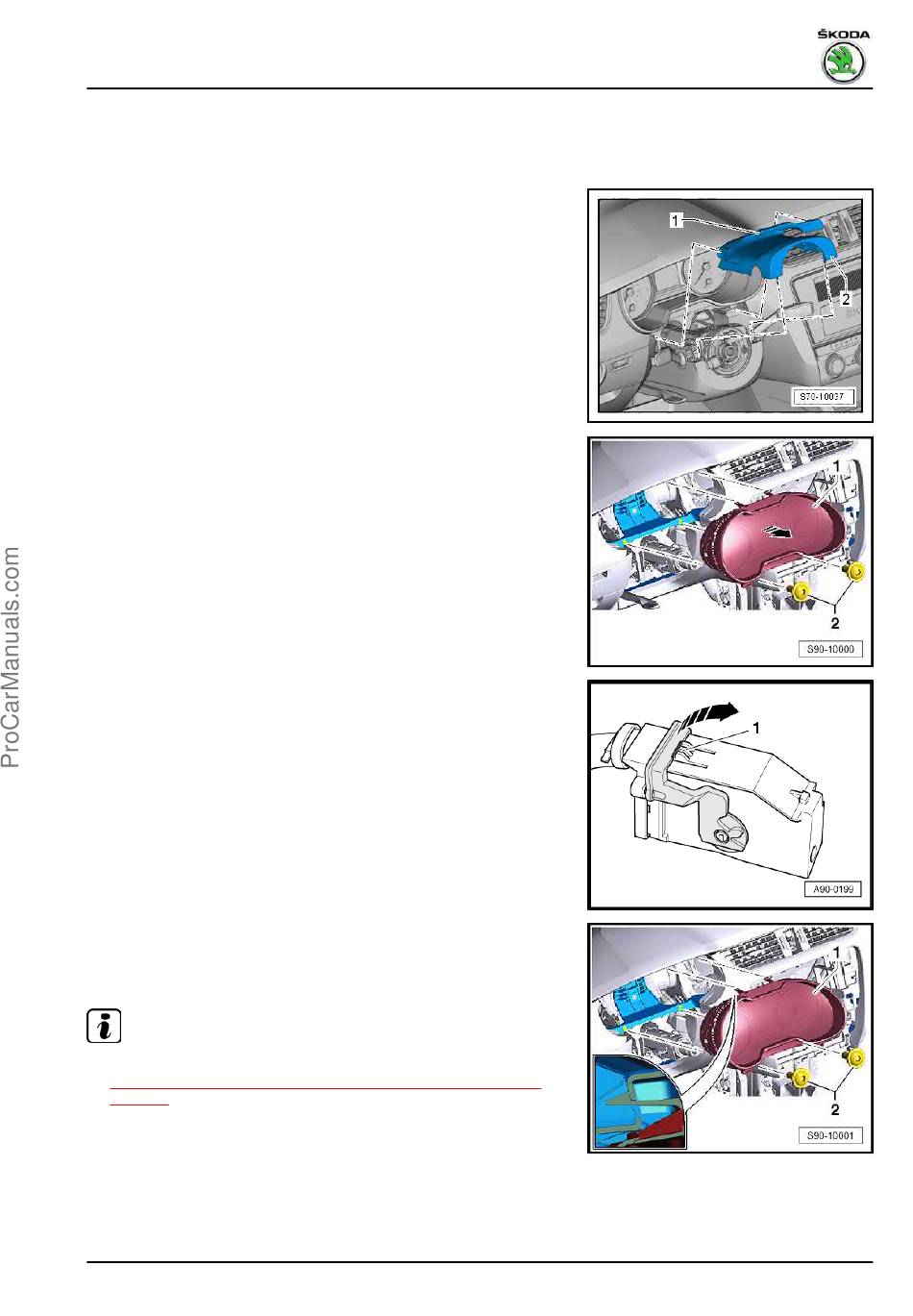

Removing
– Switch off the ignition and all electrical components.
– Pull steering wheel out fully and lock it in its lowest position.
– Take hold of the bottom cover of the control panel -1- and un‐
clip it from the catches.
– Unscrew screws -2- and push out the dash panel insert -1-
-arrow-.
– Press the catch -1- and disconnect the plug connection by tilt‐
ing out the clamp -arrow-.
Installing
– Attach the plug connection and insert the dash panel insert
until it locks into the assembly opening -Detail-.
– Screw in screws -2- (1.5 Nm) and install the lower cover.
Note
For fault finding perform self-diagnosis
♦
⇒ "1.5 The self-diagnostic function of the dash panel insert",
page 27 .
Contact assignment of plug connection ⇒ Current flow dia‐
♦
grams, Electrical fault finding and Fitting locations.
