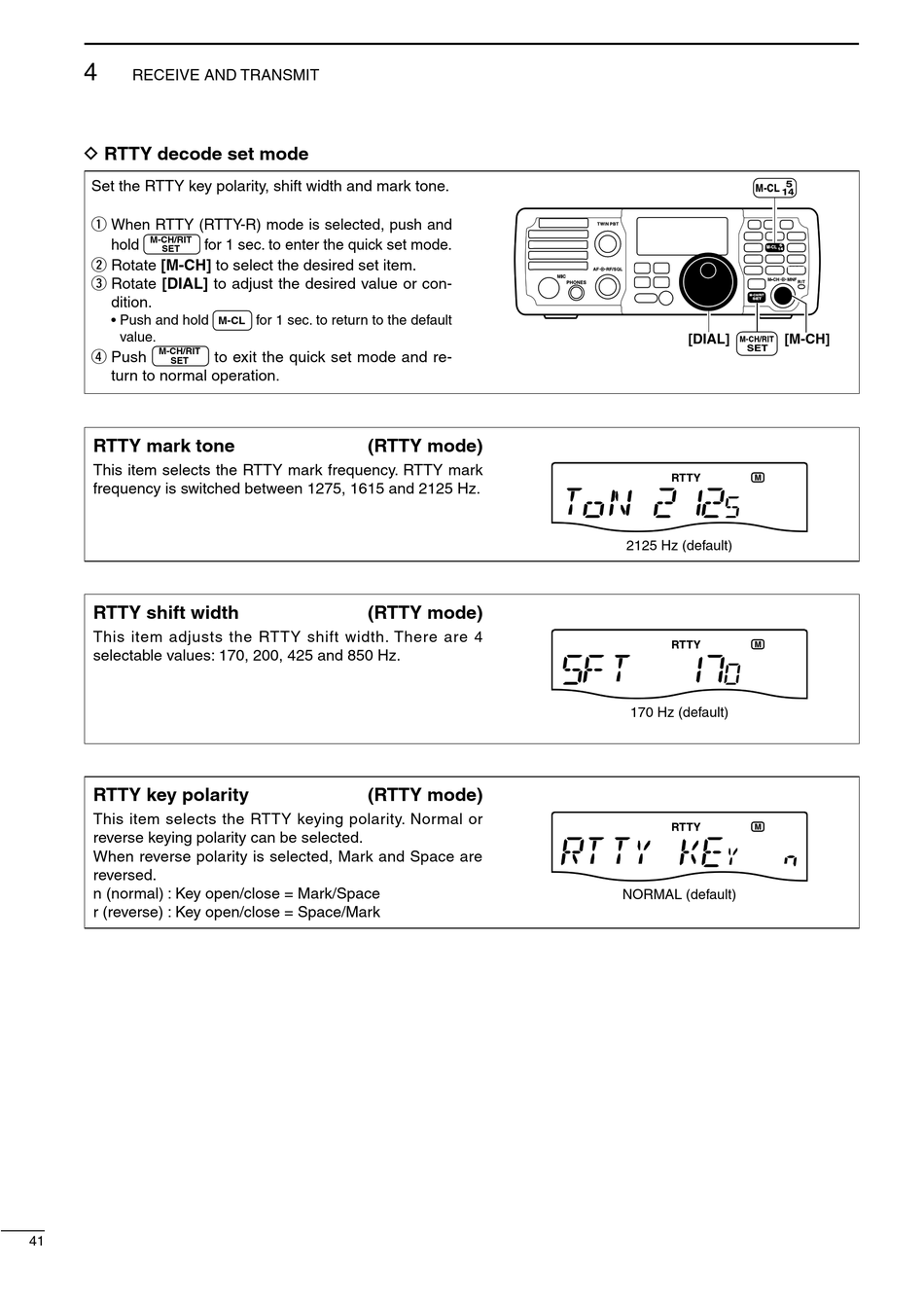

D RTTY decode set mode

Set the RTTY key polarity, shift width and mark tone.
q When RTTY (RTTY-R) mode is selected, push and
M-CH/RIT
hold
SET
w Rotate [M-CH] to select the desired set item.
e Rotate [DIAL] to adjust the desired value or con-
dition.
• Push and hold
value.
M-CH/RIT
r Push
SET
turn to normal operation.
RTTY mark tone
This item selects the RTTY mark frequency. RTTY mark
frequency is switched between 1275, 1615 and 2125 Hz.
RTTY shift width
This item adjusts the RTTY shift width. There are 4
selectable values: 170, 200, 425 and 850 Hz.
RTTY key polarity
This item selects the RTTY keying polarity. Normal or
reverse keying polarity can be selected.
When reverse polarity is selected, Mark and Space are
reversed.
n (normal) : Key open/close = Mark/Space
r (reverse) : Key open/close = Space/Mark
