Commissioning
TIG welding
6.9.1

Welding torch connection

Item Symbol Description
1
2
3
4
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the welding current plug on the combi torch into the "-" welding current connection socket and
lock by turning to the right.
Only for machines with integrated cooling module:
• Lock connecting nipples of the cooling water tubes into the corresponding rapid-action closure
couplings:
Return line red to rapid-action closure coupling, red (coolant return) and
supply line blue to rapid-action closure coupling, blue (coolant supply).
108
0
Euro-central connector (welding torch connection)
Welding current, shielding gas and torch trigger included
Rapid-action closure coupling, blue (coolant supply)
Rapid-action closure coupling, red (coolant return)
Connection socket, "-" welding current
• MIG/MAG welding:
• TIG welding:
• MMA welding:

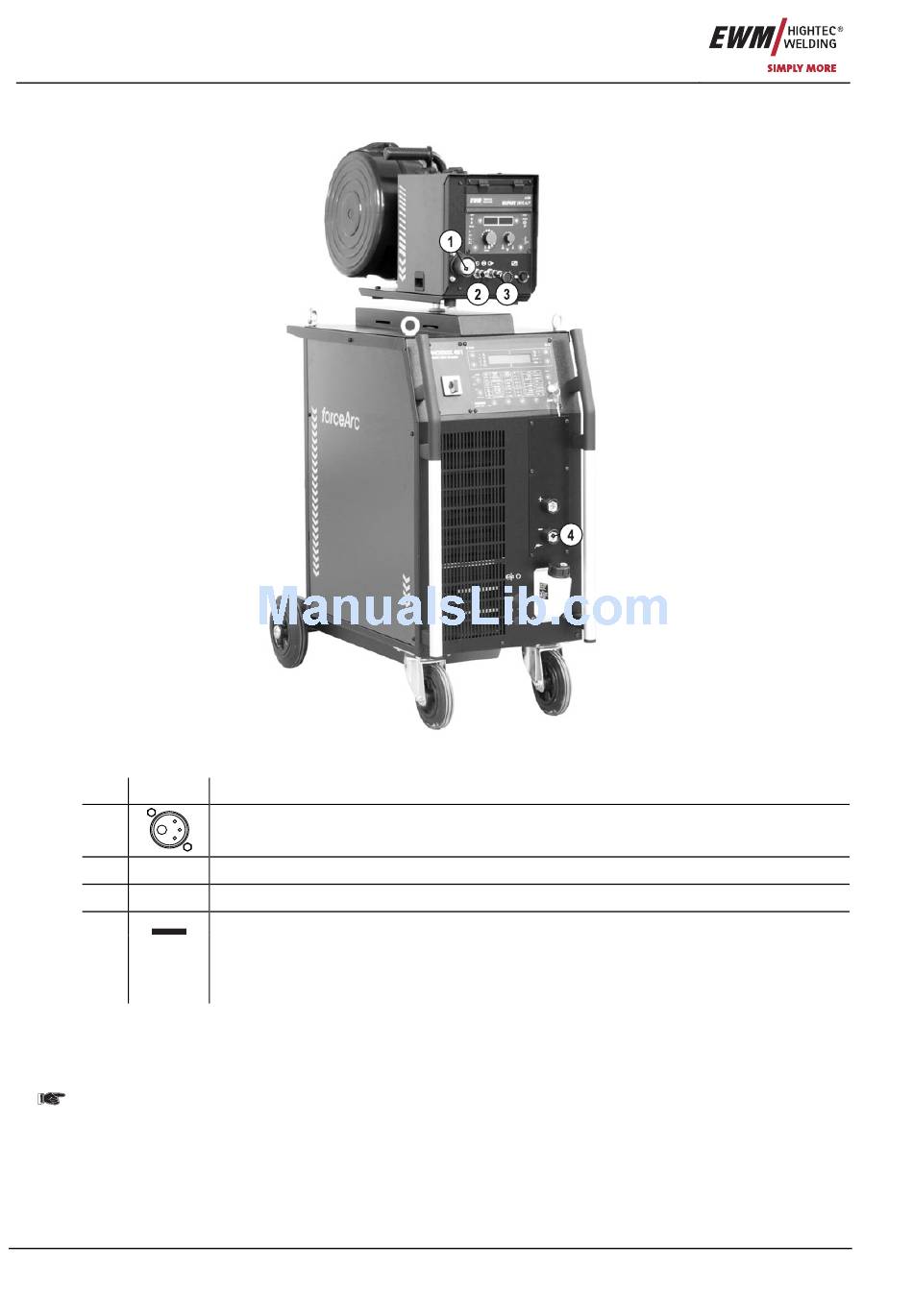

Figure 6-11
Workpiece connection
Welding current connection for welding torch
Workpiece or electrode holder connection
