6.8.3

Connection for workpiece lead

Item Symbol Description
1
2
• Insert the workpiece lead connector plug into the welding current connection socket and lock by
turning to the right:
−
MIG/MAG cored wire: Welding current "+" connection socket
−
MIG/MAG standard: Welding current "-" connection socket
Item No.: 099-004833-EWM01
0
Connection socket, "+" welding current
• MIG/MAG cored wire welding:
• TIG welding:
• MMA welding:
Connection socket, "-" welding current
• MIG/MAG welding:
• TIG welding:
• MMA welding:

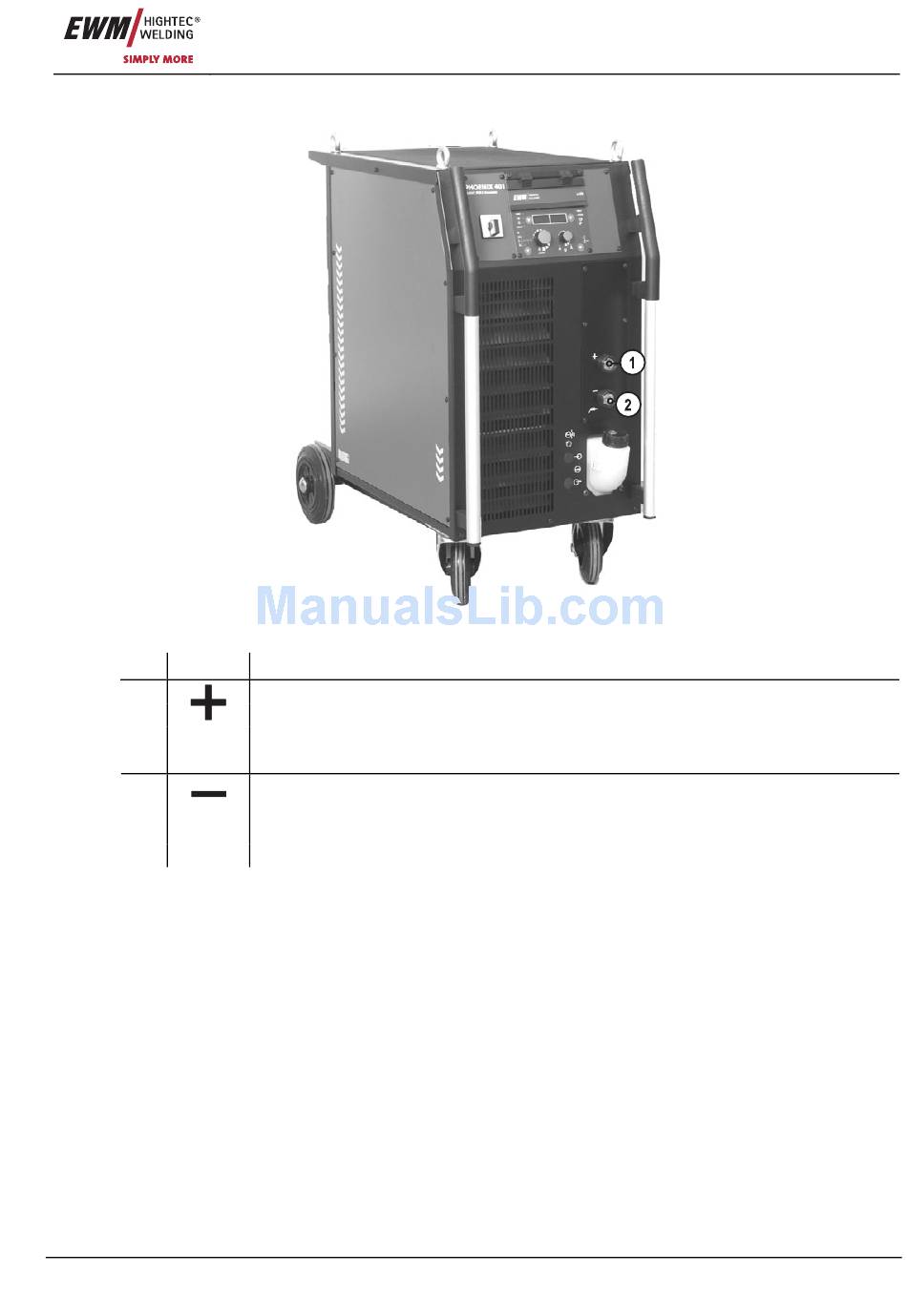

Figure 6-5
Workpiece connection
Workpiece connection
Workpiece or electrode holder connection
Workpiece connection
Welding current connection for welding torch
Workpiece or electrode holder connection
Commissioning
MIG/MAG welding
103
