5.2.11 MIG/MAG Push/Pull welding torch

The most important requirement for the greatest degree of efficiency and weld seam quality is the smooth
conveyance of the wire electrode. This is particularly problematic when:
• Longer tube packages are used,
• Wire electrodes have poor sliding properties,
• Wire electrodes have poor bending strength and
• An especially even wire outlet speed is required.
In this process, additional conveying aids in the torch produce significant improvements in comparison
with pure feed wire conveyors. In addition to a pushing wire feed (PUSH) in the power source / wire feed
case, a pulling wire feed (PULL) is used in the torch.
The two feed motors are synchronised by a current regulator.
Welding torches without potentiometers
Operating elements
1 torch trigger
Push/Pull torch with one potentiometer
Infinitely adjustable setting of welding performance (Up/Down function)
Changeover switch in WF unit to "Up / Down" (see "Internal operating elements" chapter)
Operating elements
1 torch trigger
1 rotary dial

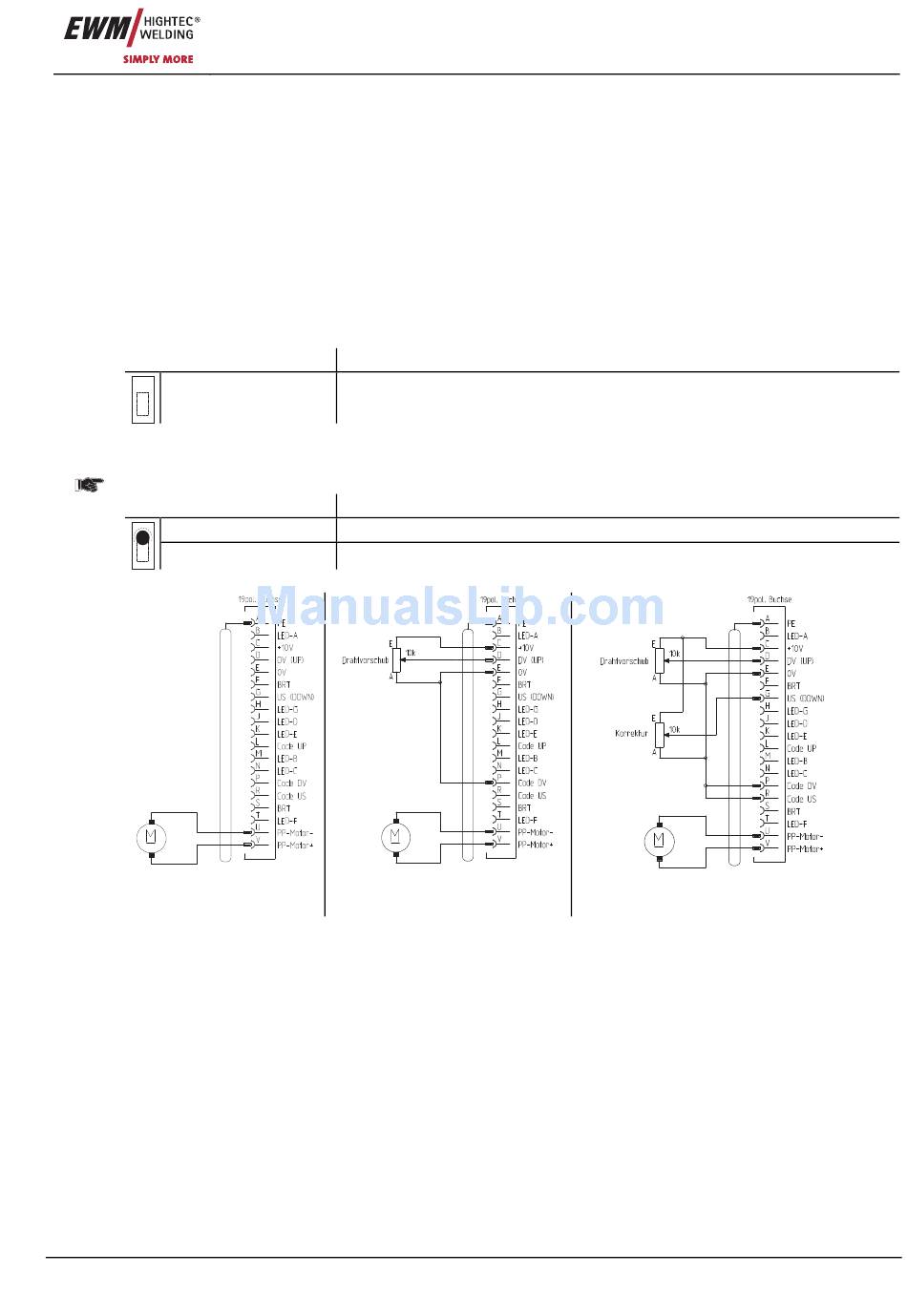

5.2.11.1 Pin assignments

No potentiometers
Item No.: 099-004833-EWM01
Functions
Welding On/Off
Functions
Welding On/Off
Infinite adjustment of the wire speed
With potentiometer for wire
feeding speed
Figure 5-29
Functional characteristics
With potentiometers for wire feeding
speed and arc length correction
MIG/MAG welding
67
