Commissioning

Shielding gas supply

6.11 Shielding gas supply

6.11.1 Connecting the shielding gas supply

Item Symbol Description
1
2
3
4
5
6
7
No dirt must be allowed to enter the shielding gas supply as this would cause blockages.
All shielding gas connections must be gastight!
• Place the shielding gas cylinder in the cylinder holder and secure it from tipping over using the
securing chain!
• Before connecting the pressure reducer to the gas cylinder, open the cylinder valve briefly to blow out
any dirt.
• Mount the pressure reducer onto the gas cylinder valve.
• Fit the gas hose and G1/4" crown nut onto the relevant connection on the pressure reducer.
• Fit the gas hose and G1/4" crown nut onto the relevant connection on the welding machine, and fit the
wire feed unit (if present on this version).
112
0
Cylinder bracket
Safety chain
Pressure reducer
Shielding gas cylinder
Cylinder valve
G ¼" crown nut
Connecting nipple G¼, shielding gas connection

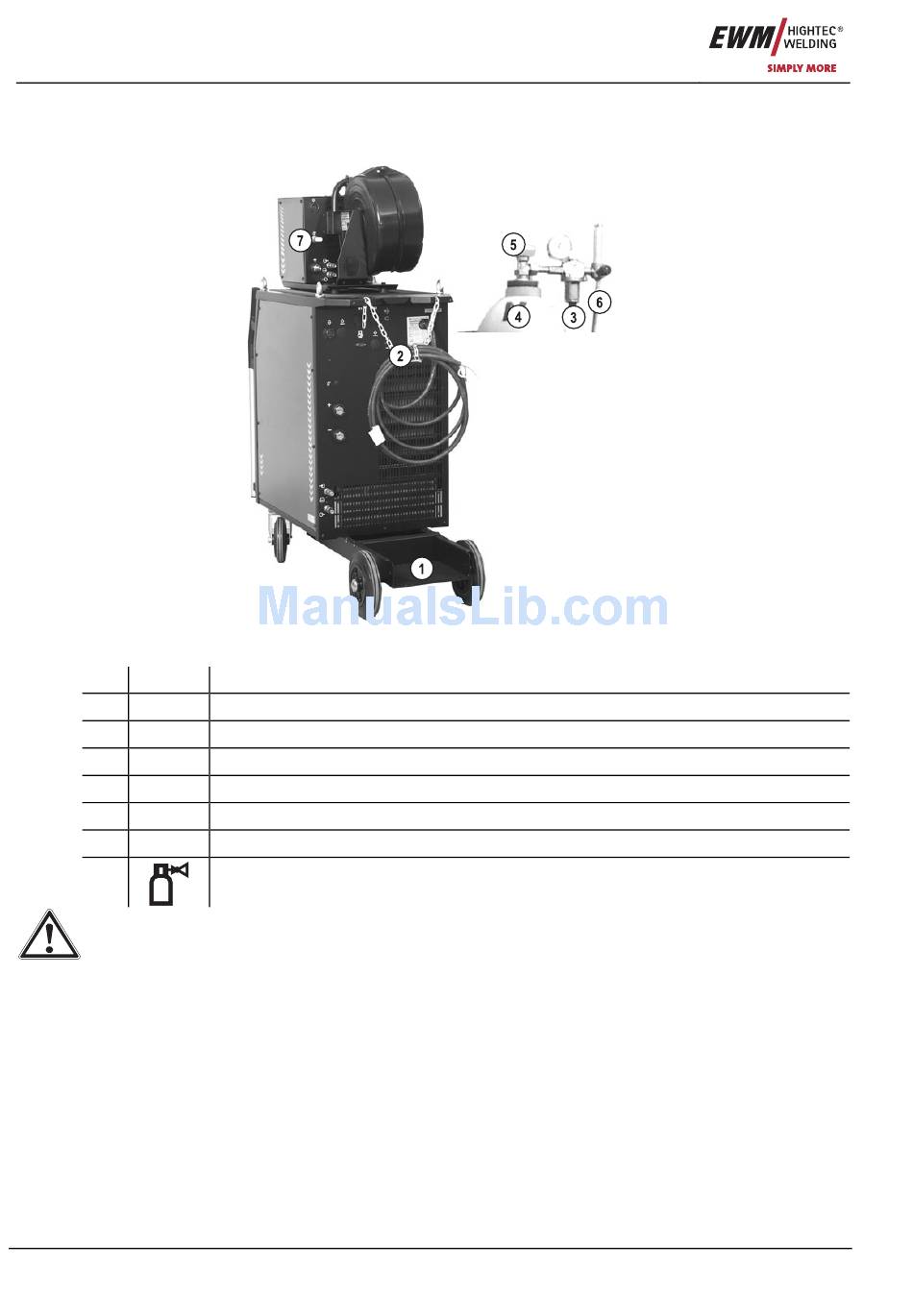

Figure 6-14
Item No.: 099-004833-EWM01
