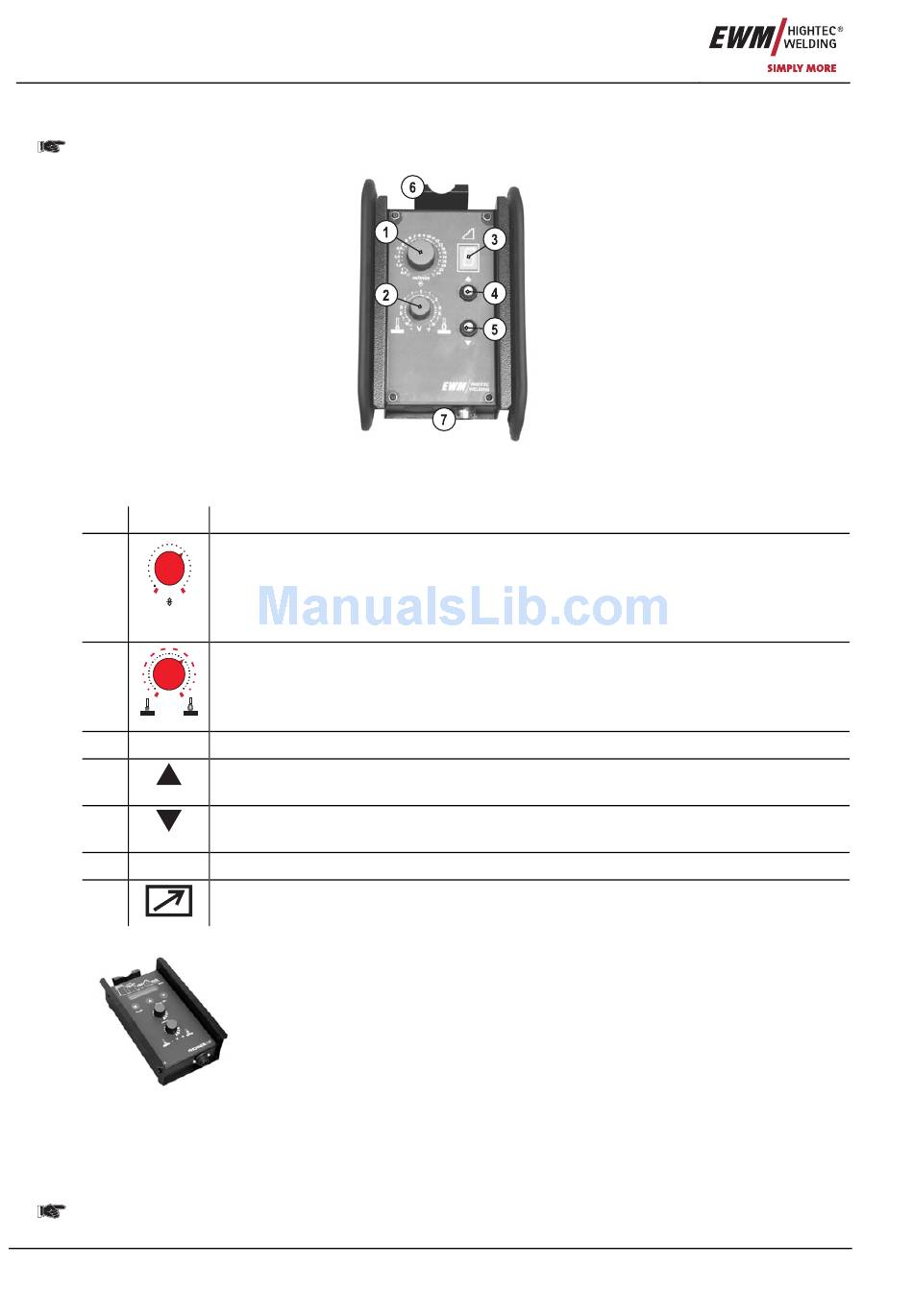

Manual remote control R20

Manual remote controls R20 can only be used together with controls M3.70 or M3.71!
Item Symbol Description
6 7 8 9 10
1
5
4 11
3,5 12
3
2,5
2
1,5
18
1
0,5 20
m/min
0
1 1
2
2 2
3
5
7
10
10
- V +
3
4
5
6
7
5.8.3

R40 manual remote control

Detailed information can be found in the relevant operating instructions.
84
0
"Wire speed" rotary dial
13
14 • Infinitely adjustable setting of the wire speed from min. to max.
15
16
(welding output, one-dial operation).
• The wire correction value is set in the correction operation with welding programs
(key switch set to "0").
"Arc length correction" rotary dial
3
• Arc length correction from -10V to +10V
5
7
• The arc correction value is set in the correction operation with welding programs
(key switch set to "0").
Display for showing the current program number
Program switching "Up" button
Select program number up
Program switching "Down" button
Select program number down
Holder for suspending the remote control
19-pole connection socket (analogue)
For connecting the control lead.
Functions
• Create and retrieve up to 16 operating points/main programs
• Set program sequence
• Superpulse function "ON/OFF"
• MIG standard/MIG pulse arc welding switching
(EXPERT PULSE only)
• Preset number of main programs (PA1 to PA16)
• LCD display (16-digit ) for displaying the welding parameters
• LED for displaying the Hold function
• The remote control is connected to the digital remote control connection socket
on the welding machine (7-pole) via an extension cable
Figure 5-39
