6.9.2

Connection for workpiece lead

Item Symbol Description
1
2
• Insert cable plug on the workpiece lead into the welding current socket "+" and lock by turning to the
right.
Item No.: 099-004833-EWM01
0
Connection socket, "+" welding current
• MIG/MAG cored wire welding:
• TIG welding:
• MMA welding:
Connection socket, "-" welding current
• MIG/MAG welding:
• TIG welding:
• MMA welding:

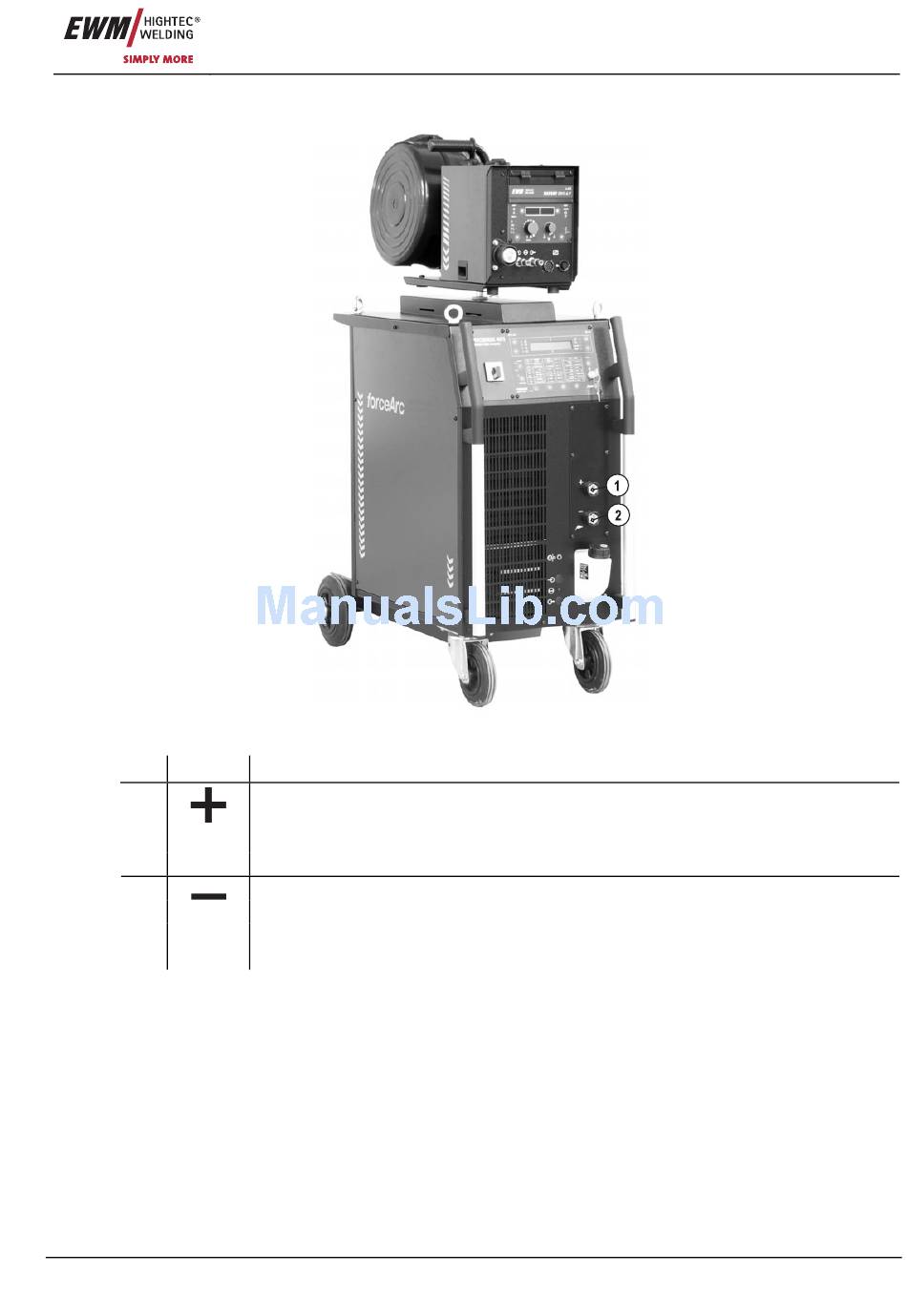

Figure 6-12
Workpiece connection
Workpiece connection
Workpiece or electrode holder connection
Workpiece connection
Welding current connection for welding torch
Workpiece or electrode holder connection
Commissioning
TIG welding
109
