Machine Description - EWM PHOENIX 301 EXPERT forceArc Operating Instructions Manual

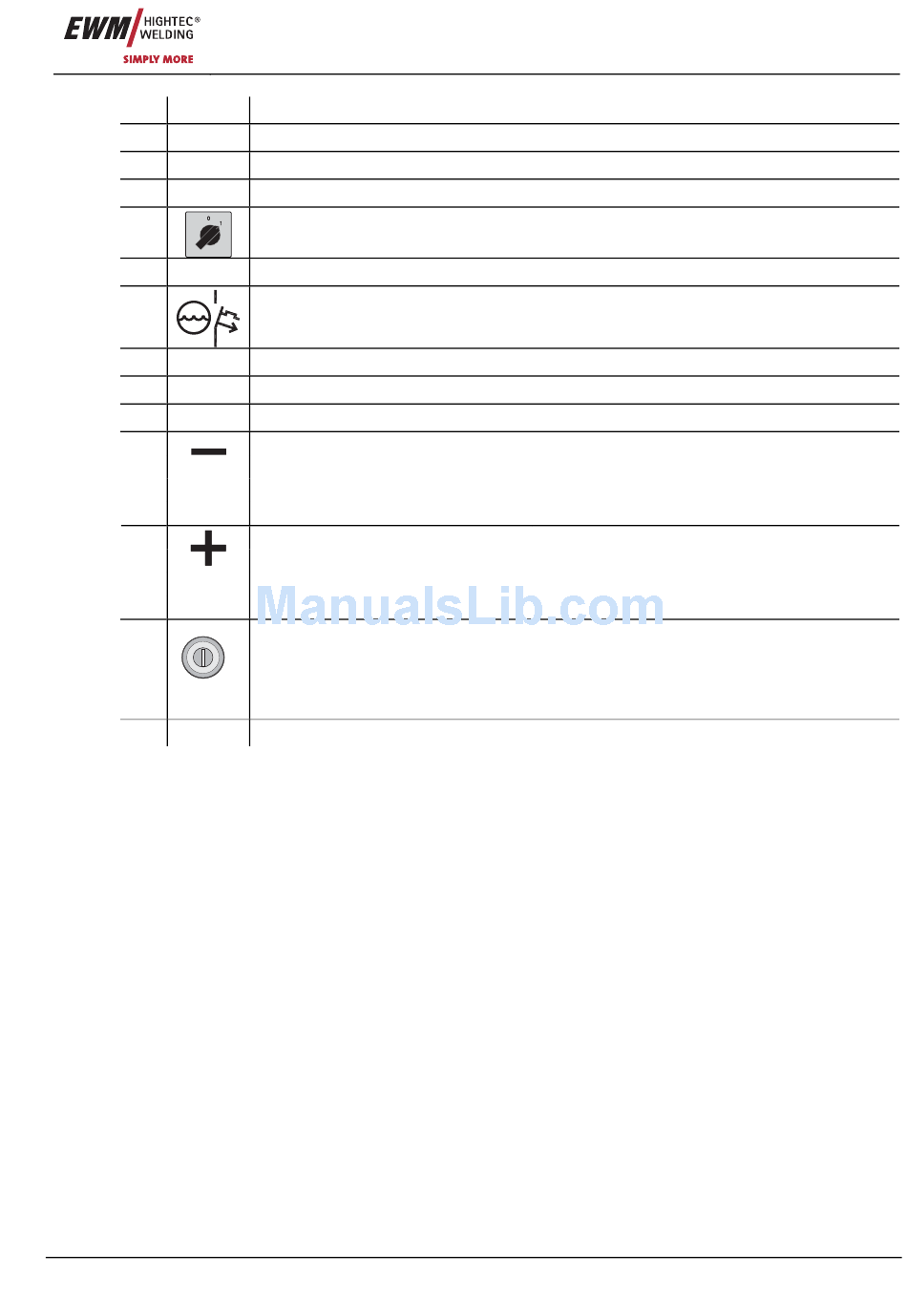

Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
0
12
13
Item No.: 099-004833-EWM01
0
Wire feed unit
Lifting lug
Carrying handle
Main switch, machine on/off
Cooling air inlet
"Automatic cut-out of coolant pump" key button
(press to reset a triggered fuse)
Conveyor rolls, guide castors
Coolant tank
Coolant tank cap
Connection socket, "-" welding current
• MIG/MAG welding:
• TIG welding:
• MMA welding:
Connection socket, "+" welding current
• MIG/MAG cored wire welding:
• TIG welding:
• MMA welding:
Key switch for protection against unauthorised use
1 Position "1" > changes possible,
Position "0" > changes not possible.
Please take note of chapter "Key switch"
Control / Operating elements (see chapter Function specification)

Machine description

PHOENIX 301; 351; 421; 521 EXPERT forceArc
Workpiece connection
Welding current connection for welding torch
Workpiece or electrode holder connection
Workpiece connection
Workpiece connection
Workpiece or electrode holder connection
17
