Inserting The Wire Spool; Changing The Wire Feed Rollers - EWM PHOENIX 301 EXPERT forceArc Operating Instructions Manual

6.8.5

Inserting the wire spool

The pretensioning of the pin reel shall be checked before each wire spool replacement and before
the adjustment of the spool brake, see chapter on fixing of the pin reel (adjustment of the
pretensioning)!
Standard D300 pin reels can be used. Adapters (see accessories) are required when using
standardised basket coils (DIN 8559).
Item Symbol Description
1
2
• Loosen knurled nut from spool holder.
• Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
• Fasten wire spool using knurled nut.
6.8.6

Changing the wire feed rollers

To ensure optimum wire feed, it is essential that the wire feed rollers match the wire electrode
diameter used (change if necessary).
The wire feed rollers are only suitable for two wire diameters (factory setting 0.8 mm or 1.0 mm).
Turning the WF rollers changes between the two wire diameters.
• Slide new drive rollers into place so that the diameter of the wire electrode printed on the wire feed
roller is visible. Screw the drive rollers in place with knurled screws.
Item No.: 099-004833-EWM01
0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool

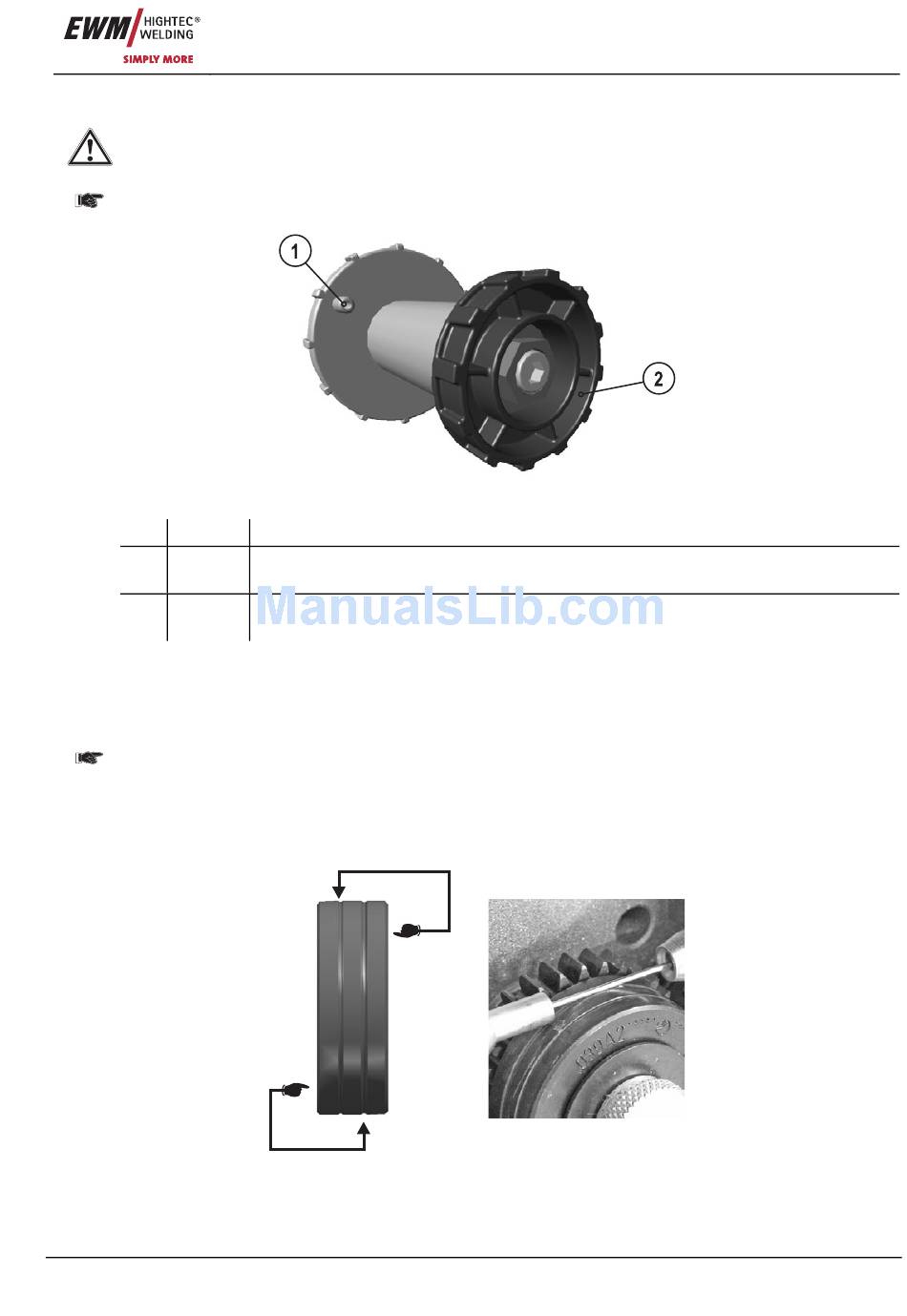

Figure 6-7
Figure 6-8
Commissioning
MIG/MAG welding
105
