ENGINE DISASSEMBLY / ASSEMBLY

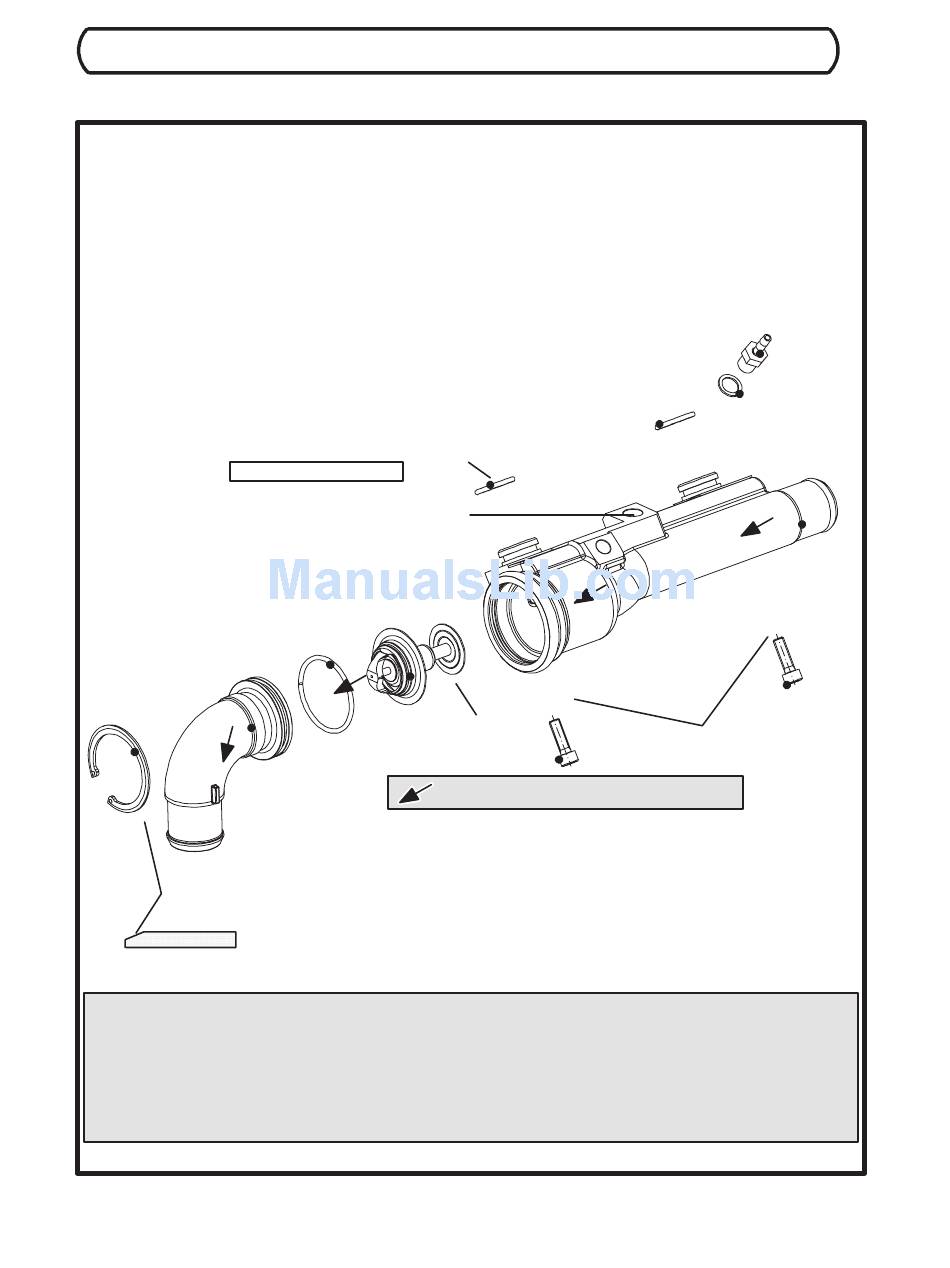

THERMOSTAT HOUSING ASSEMBLY
INTAKE- -SIDE OF ENGINE
ELBOW PIPE
SNAP RING
(CHAMFER FACES OUT)
ASSEMBLY NOTES
Water Pipe Fastener Torque: 7 ft.lbs. (10 Nm)
Thermostat Opening Temperature: 180_F / 82_C
Snap ring chamfer faces outward, towards rear of engine.
Always use new o- -rings during installation and reassembly.
Elbow pipe points down and toward the heat exchanger.
4.12
O- -RING
BLEED HOSE FITTING
THERMOSTAT
O- -RING
= COOLANT FLOW WHEN THERMOSTAT OPENS
O- -RING
WATER PIPE
WATER PIPE FASTENERS
M6 X 20
