FUEL INJECTION / IGNITION / EXHAUST SYSTEMS

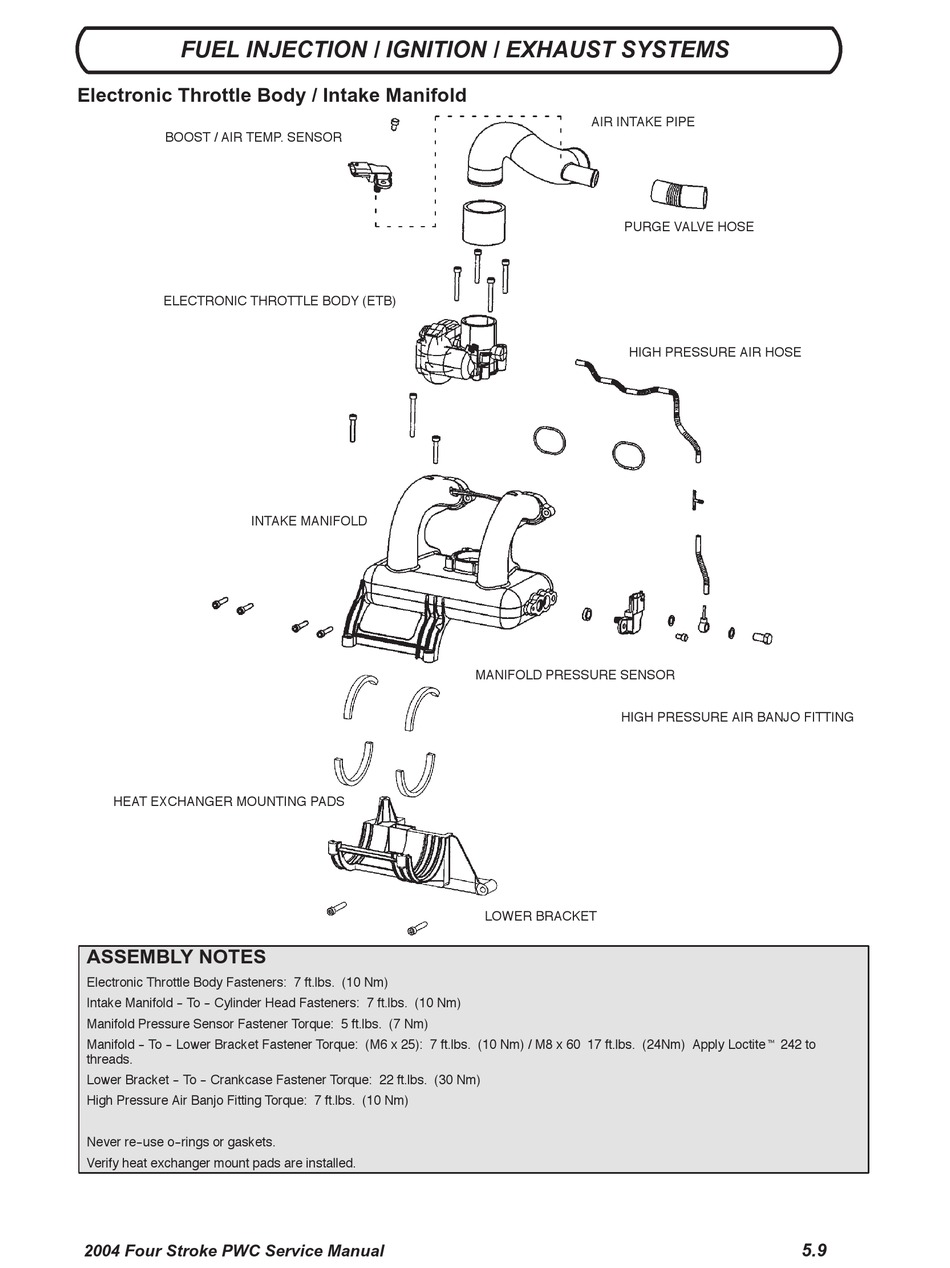

Electronic Throttle Body / Intake Manifold
AIR INTAKE PIPE
BOOST / AIR TEMP. SENSOR
PURGE VALVE HOSE
ELECTRONIC THROTTLE BODY (ETB)
HIGH PRESSURE AIR HOSE
INTAKE MANIFOLD
MANIFOLD PRESSURE SENSOR
HIGH PRESSURE AIR BANJO FITTING
HEAT EXCHANGER MOUNTING PADS
LOWER BRACKET
ASSEMBLY NOTES
Electronic Throttle Body Fasteners: 7 ft.lbs. (10 Nm)
Intake Manifold - - To - - Cylinder Head Fasteners: 7 ft.lbs. (10 Nm)
Manifold Pressure Sensor Fastener Torque: 5 ft.lbs. (7 Nm)
Manifold - - To - - Lower Bracket Fastener Torque: (M6 x 25): 7 ft.lbs. (10 Nm) / M8 x 60 17 ft.lbs. (24Nm) Apply Loctitet 242 to
threads.
Lower Bracket - - To - - Crankcase Fastener Torque: 22 ft.lbs. (30 Nm)
High Pressure Air Banjo Fitting Torque: 7 ft.lbs. (10 Nm)
Never re- -use o- -rings or gaskets.
Verify heat exchanger mount pads are installed.
