HULL AND BODY

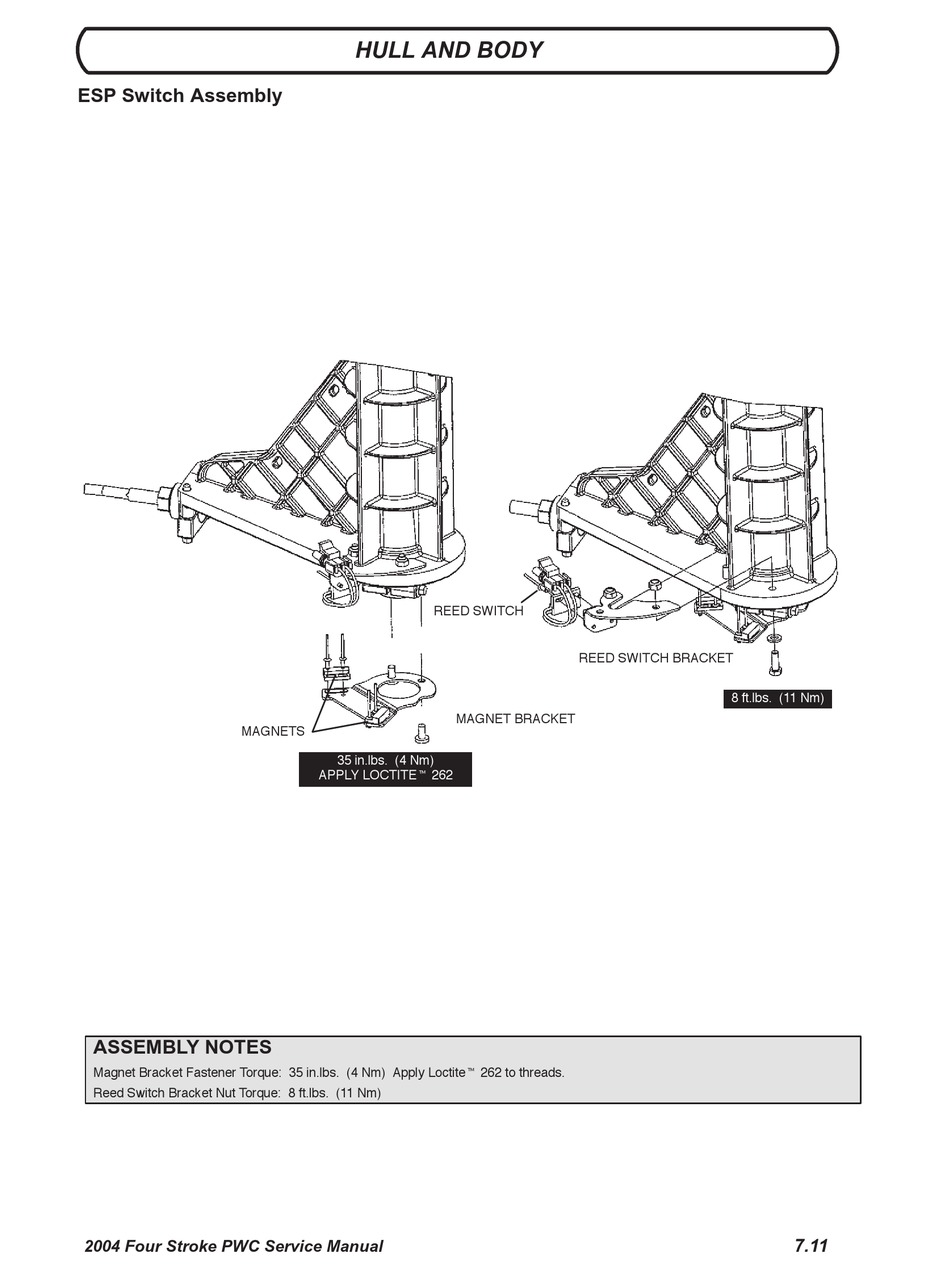

ESP Switch Assembly
REED SWITCH
REED SWITCH BRACKET
8 ft.lbs. (11 Nm)
MAGNET BRACKET
MAGNETS
35 in.lbs. (4 Nm)
APPLY LOCTITEt 262
ASSEMBLY NOTES
Magnet Bracket Fastener Torque: 35 in.lbs. (4 Nm) Apply Loctitet 262 to threads.
Reed Switch Bracket Nut Torque: 8 ft.lbs. (11 Nm)
7.11
2004 Four Stroke PWC Service Manual
