Pump Assembly - Polaris msx 110 Service Manual

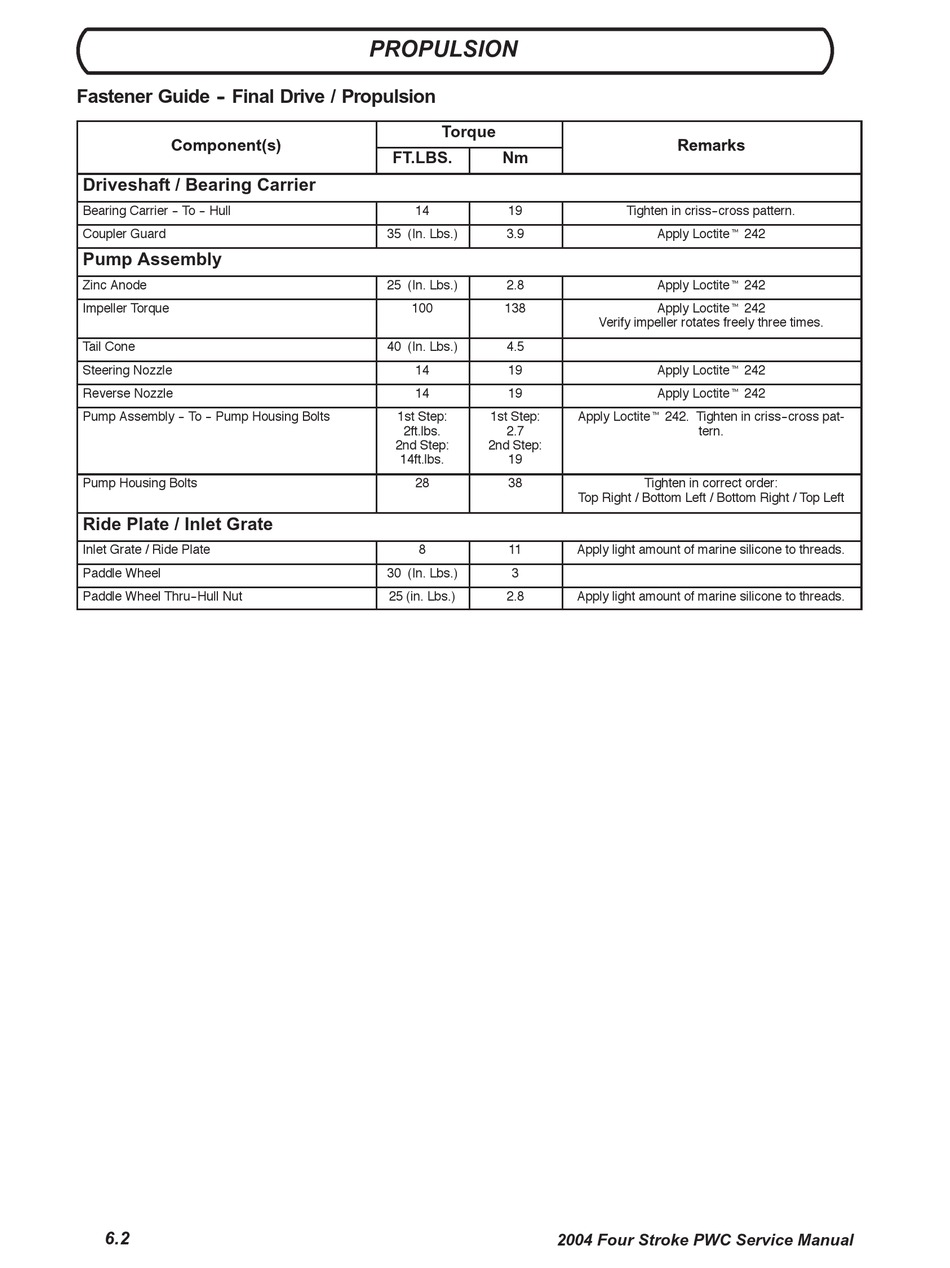

Fastener Guide - - Final Drive / Propulsion
Component(s) Component(s)
Driveshaft / Bearing Carrier
Bearing Carrier - - To - - Hull
Coupler Guard

Pump Assembly

Zinc Anode
Impeller Torque
Tail Cone
Steering Nozzle
Reverse Nozzle
Pump Assembly - - To - - Pump Housing Bolts
Pump Housing Bolts
Ride Plate / Inlet Grate
Inlet Grate / Ride Plate
Paddle Wheel
Paddle Wheel Thru- -Hull Nut
6.2
PROPULSION
Torque
FT.LBS. Nm
14 19
35 (In. Lbs.) 3.9
25 (In. Lbs.) 2.8
100 138
40 (In. Lbs.) 4.5
14 19
14 19
1st Step: 1st Step:
2ft.lbs. 2.7
2nd Step: 2nd Step:
14ft.lbs. 19
28 38
8 11
30 (In. Lbs.) 3
25 (in. Lbs.) 2.8
Remarks Remarks
Tighten in criss- -cross pattern.
Apply Loctitet 242
Apply Loctitet 242
Apply Loctitet 242
Verify impeller rotates freely three times.
Apply Loctitet 242
Apply Loctitet 242
Apply Loctitet 242. Tighten in criss- -cross pat-
tern.
Tighten in correct order:
Top Right / Bottom Left / Bottom Right / Top Left
Apply light amount of marine silicone to threads.
Apply light amount of marine silicone to threads.
