ELECTRICAL SYSTEMS

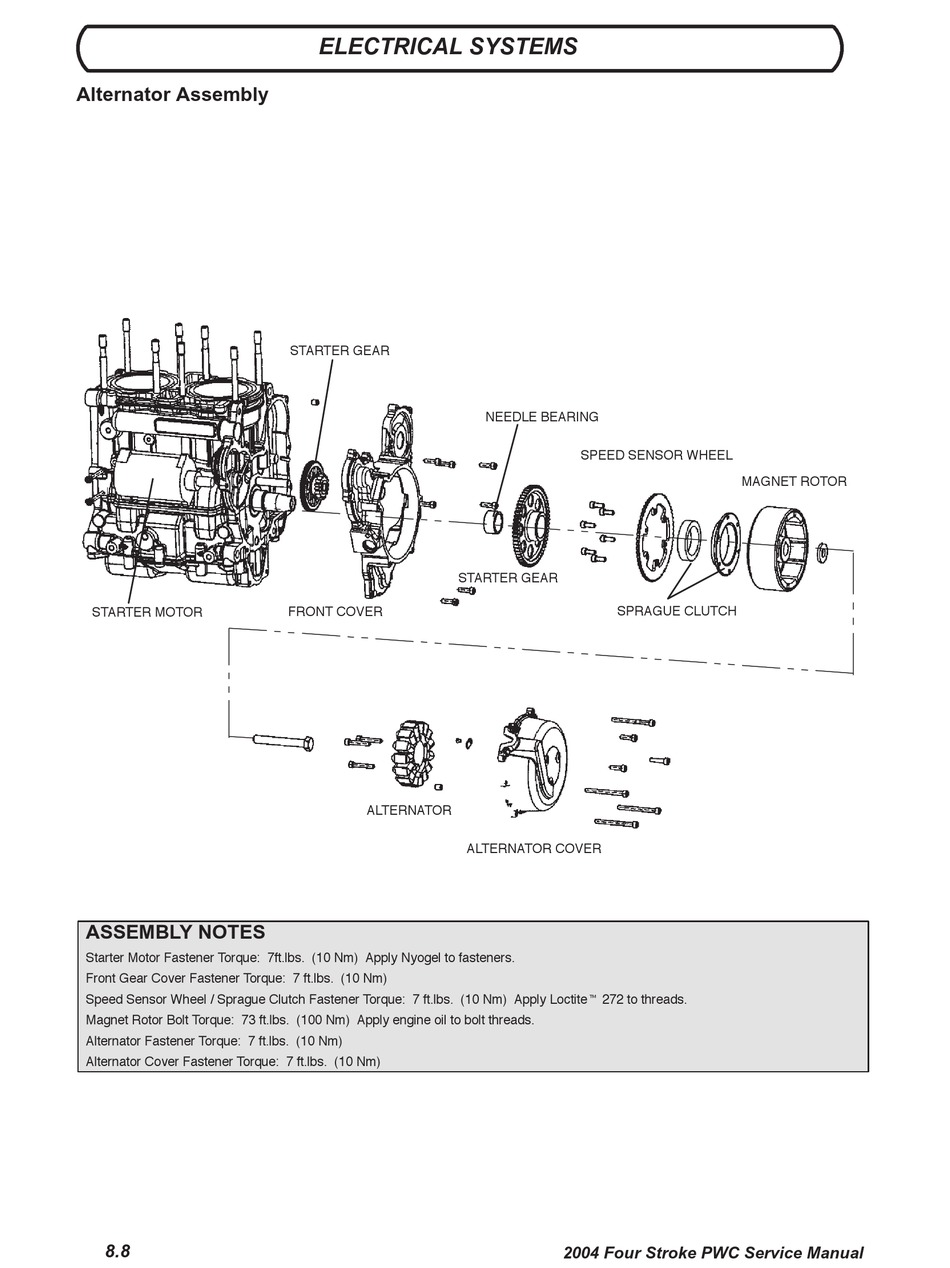

Alternator Assembly

STARTER GEAR
NEEDLE BEARING
SPEED SENSOR WHEEL
MAGNET ROTOR
STARTER GEAR
FRONT COVER SPRAGUE CLUTCH
STARTER MOTOR
ALTERNATOR
ALTERNATOR COVER
ASSEMBLY NOTES
Starter Motor Fastener Torque: 7ft.lbs. (10 Nm) Apply Nyogel to fasteners.
Front Gear Cover Fastener Torque: 7 ft.lbs. (10 Nm)
Speed Sensor Wheel / Sprague Clutch Fastener Torque: 7 ft.lbs. (10 Nm) Apply Loctitet 272 to threads.
Magnet Rotor Bolt Torque: 73 ft.lbs. (100 Nm) Apply engine oil to bolt threads.
Alternator Fastener Torque: 7 ft.lbs. (10 Nm)
Alternator Cover Fastener Torque: 7 ft.lbs. (10 Nm)
8.8
