ENGINE DISASSEMBLY / ASSEMBLY

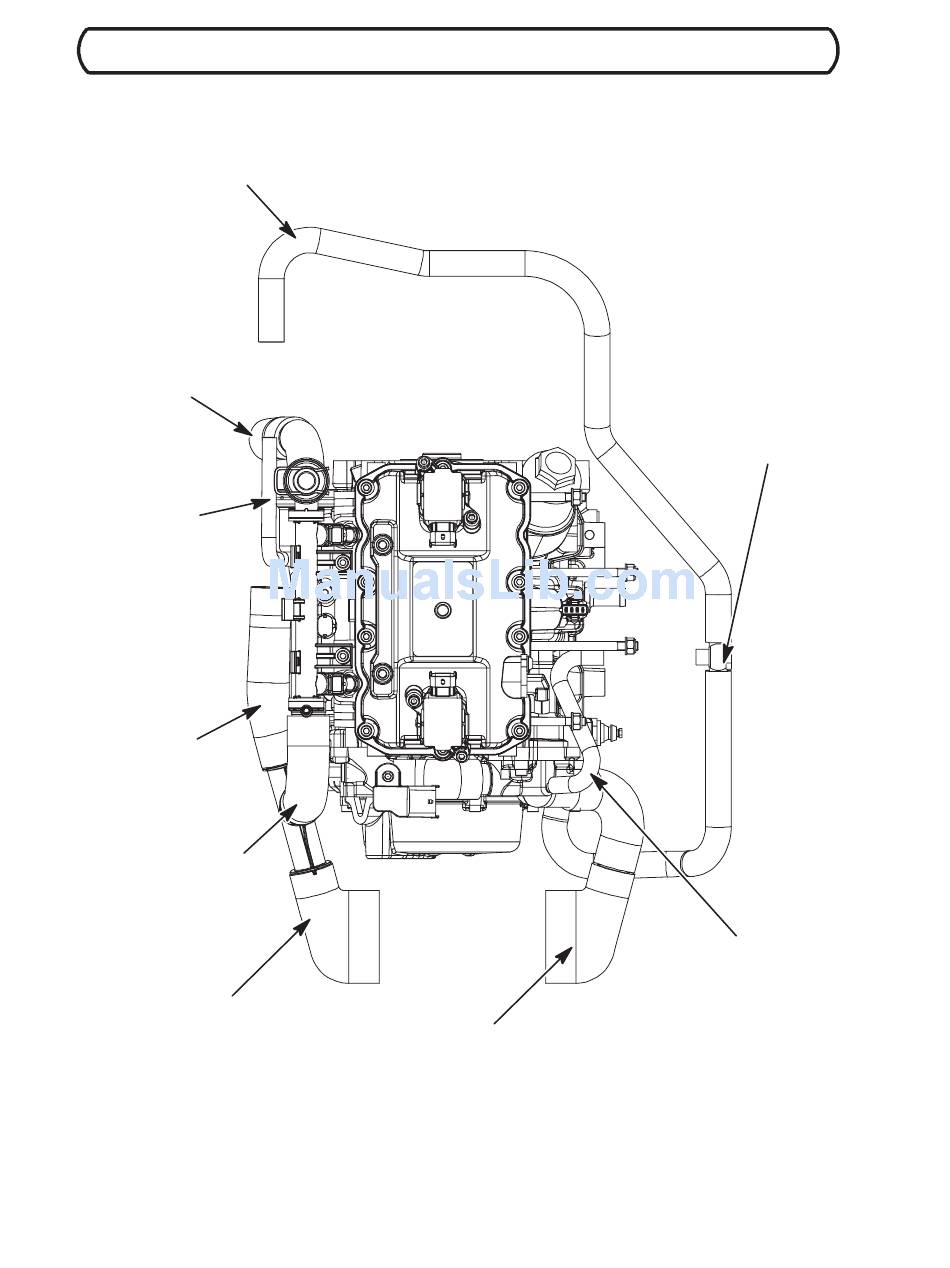

Internal Engine Coolant Hose Routing - - Top View
ENGINE COOLANT HOSE
(FROM EXPANSION TANK TO WATER PUMP HOUSING)
ENGINE COOLANT
HOSE (FROM WATER
OUTLET RAIL TO
HEAT EXCHANGER - -
THERMOSTAT OPEN)
ENGINE COOLANT
HOSE (FROM WA-
TER OUTLET RAIL
TO EXPANSION
TANK)
ENGINE COOLANT
HOSE (FROM HEAT EX-
CHANGER TO OIL
COOLER - - THERMO-
STAT OPEN)
ENGINE COOLANT HOSE
(FROM HEAT EXCHANGER
TO OIL COOLER - - THERMO-
STAT CLOSED)
ENGINE COOLANT HOSE
(FROM WATER OUTLET RAIL TO OIL COOLER)
4.62
ENGINE COOLANT HOSE
(FROM OIL COOLER TO WATER PUMP HOUSING)
2004 Four Stroke PWC Service Manual
ENGINE COOLANT HOSE (FROM
TURBO TO WATER PUMP)
ENGINE COOLANT HOSE (FROM
WATER PUMP TO TURBO)
