Driveshaft Shim Procedure

The driveshaft must be shimmed to prevent driveline damage.
NOTE: The NOMINAL number of shims = 2.
1. Install tapered spacer over driveshaft end. Verify
beveled edge is flush with driveshaft bevel.
2. Install two shims, then hand thread coupler on to
driveshaft.
3. Push couplers together with rubber dampener
installed.

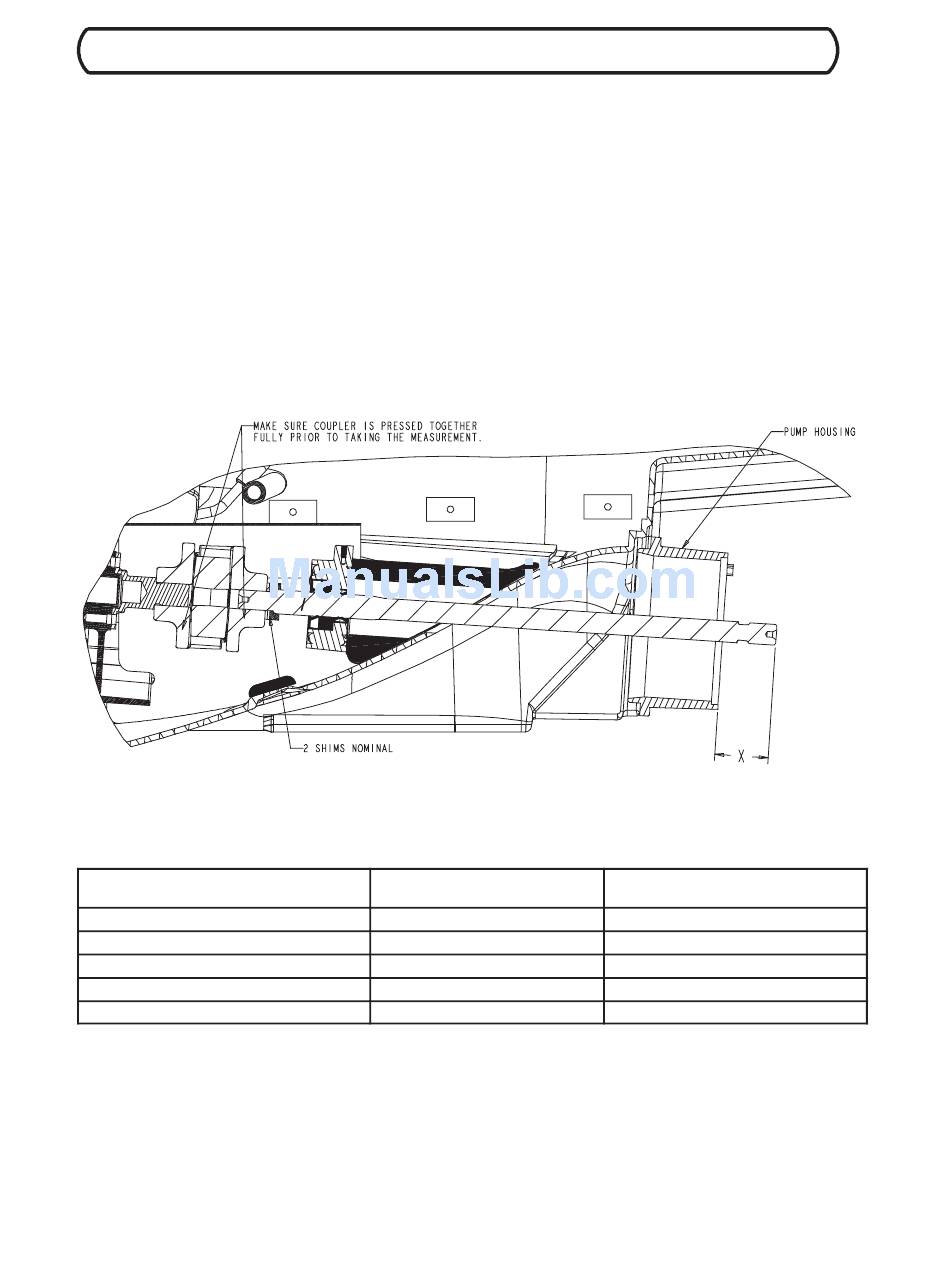

4. Measure "X" as outlined in illustration below.
5. Reference specification table and remove or add
shims.
Pump Housing - - To - - End of Driveshaft
(INCHES)
X < 2.110
2.110 < X < 2.195
2.195 < X < 2.280
2.280 < X < 2.365
X > 2.365
6.10
PROPULSION
Number of Shims From NOMINAL
+2
+1
0
- -1
- -2
Total Number of Shims
4
3
2
1
0
2004 Four Stroke PWC Service Manual
