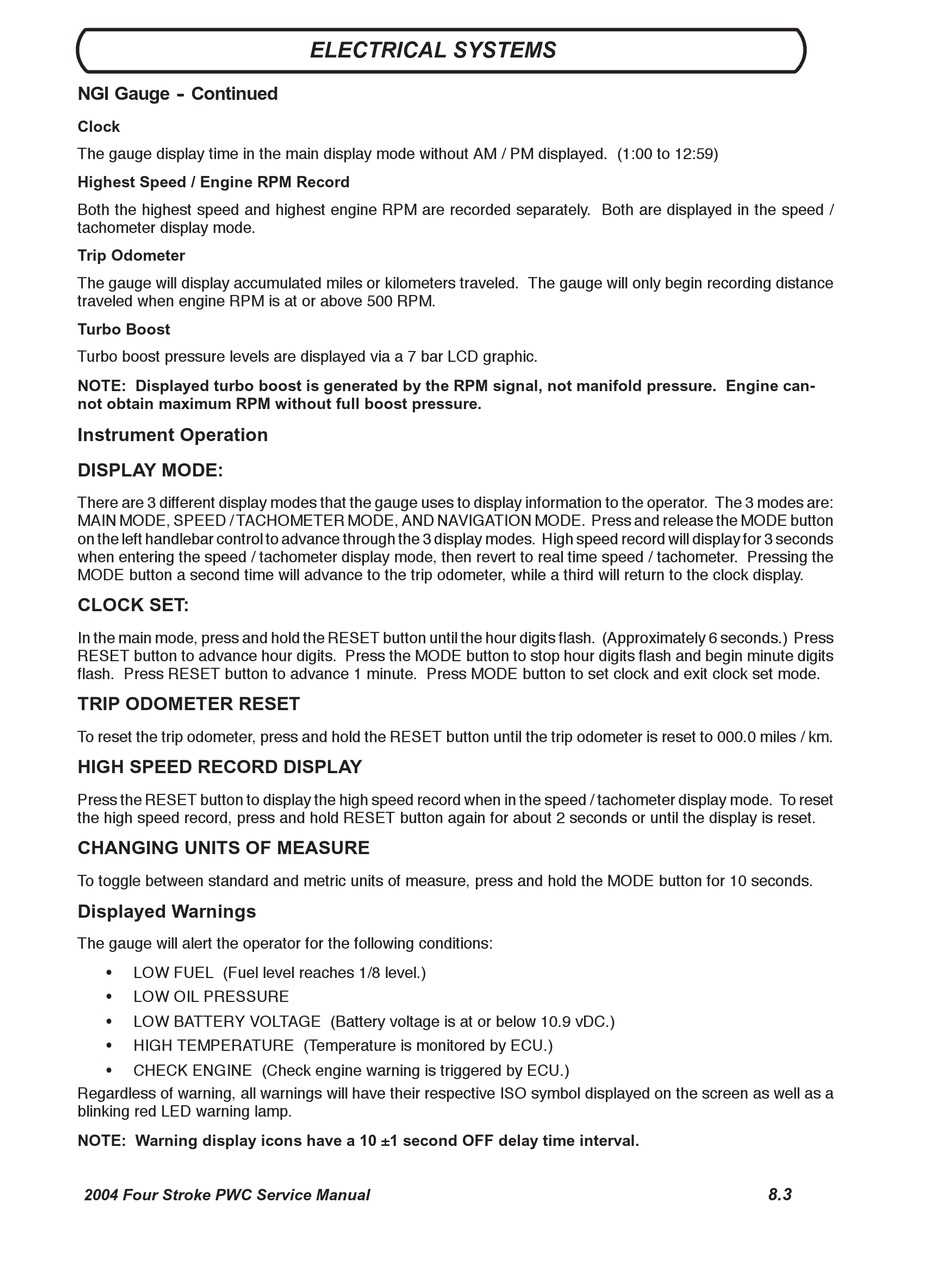

NGI Gauge - - Continued
Clock
The gauge display time in the main display mode without AM / PM displayed. (1:00 to 12:59)
Highest Speed / Engine RPM Record
Both the highest speed and highest engine RPM are recorded separately. Both are displayed in the speed /
tachometer display mode.
Trip Odometer
The gauge will display accumulated miles or kilometers traveled. The gauge will only begin recording distance
traveled when engine RPM is at or above 500 RPM.
Turbo Boost
Turbo boost pressure levels are displayed via a 7 bar LCD graphic.
NOTE: Displayed turbo boost is generated by the RPM signal, not manifold pressure. Engine can-
not obtain maximum RPM without full boost pressure.

Instrument Operation

DISPLAY MODE:
There are 3 different display modes that the gauge uses to display information to the operator. The 3 modes are:
MAIN MODE, SPEED / TACHOMETER MODE, AND NAVIGATION MODE. Press and release the MODE button
on the left handlebar control to advance through the 3 display modes. High speed record will display for 3 seconds
when entering the speed / tachometer display mode, then revert to real time speed / tachometer. Pressing the
MODE button a second time will advance to the trip odometer, while a third will return to the clock display.
CLOCK SET:
In the main mode, press and hold the RESET button until the hour digits flash. (Approximately 6 seconds.) Press
RESET button to advance hour digits. Press the MODE button to stop hour digits flash and begin minute digits
flash. Press RESET button to advance 1 minute. Press MODE button to set clock and exit clock set mode.
TRIP ODOMETER RESET
To reset the trip odometer, press and hold the RESET button until the trip odometer is reset to 000.0 miles / km.
HIGH SPEED RECORD DISPLAY
Press the RESET button to display the high speed record when in the speed / tachometer display mode. To reset
the high speed record, press and hold RESET button again for about 2 seconds or until the display is reset.
CHANGING UNITS OF MEASURE
To toggle between standard and metric units of measure, press and hold the MODE button for 10 seconds.
Displayed Warnings
The gauge will alert the operator for the following conditions:
LOW FUEL (Fuel level reaches 1/8 level.)
S
LOW OIL PRESSURE
S
LOW BATTERY VOLTAGE (Battery voltage is at or below 10.9 vDC.)
S
HIGH TEMPERATURE (Temperature is monitored by ECU.)
S
CHECK ENGINE (Check engine warning is triggered by ECU.)
S
Regardless of warning, all warnings will have their respective ISO symbol displayed on the screen as well as a
blinking red LED warning lamp.
NOTE: Warning display icons have a 10 ±1 second OFF delay time interval.
