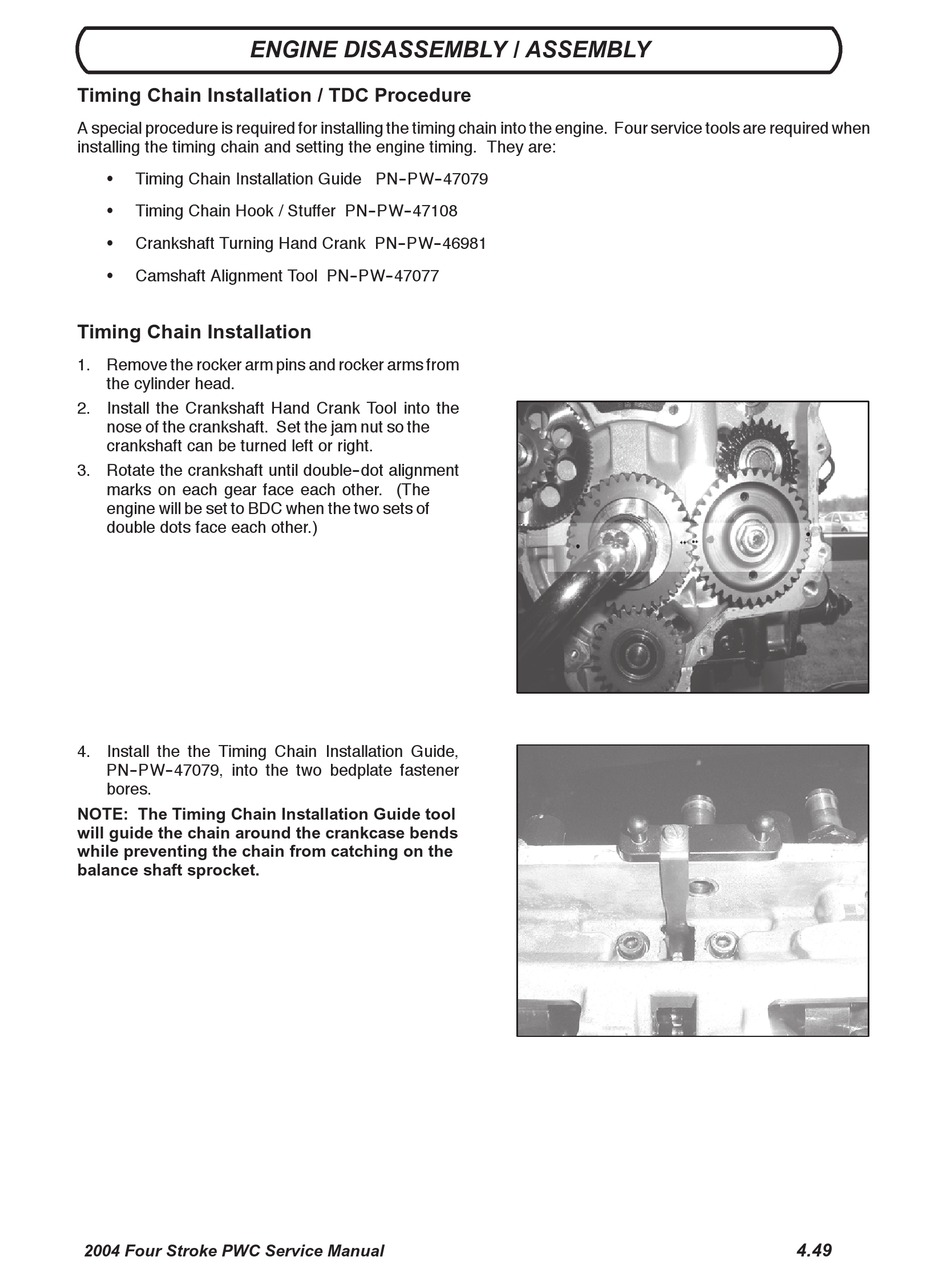

ENGINE DISASSEMBLY / ASSEMBLY
Timing Chain Installation / TDC Procedure
A special procedure is required for installing the timing chain into the engine. Four service tools are required when
installing the timing chain and setting the engine timing. They are:
Timing Chain Installation Guide PN--PW--47079
S
Timing Chain Hook / Stuffer PN--PW--47108
S
Crankshaft Turning Hand Crank PN--PW--46981
S
Camshaft Alignment Tool PN--PW--47077
S
Timing Chain Installation
1. Remove the rocker arm pins and rocker arms from
the cylinder head.
2. Install the Crankshaft Hand Crank Tool into the
nose of the crankshaft. Set the jam nut so the
crankshaft can be turned left or right.
3. Rotate the crankshaft until double--dot alignment
marks on each gear face each other. (The
engine will be set to BDC when the two sets of
double dots face each other.)
4. Install the the Timing Chain Installation Guide,
PN--PW--47079, into the two bedplate fastener
bores.
NOTE: The Timing Chain Installation Guide tool
will guide the chain around the crankcase bends
while preventing the chain from catching on the
balance shaft sprocket.
