ENGINE DISASSEMBLY / ASSEMBLY

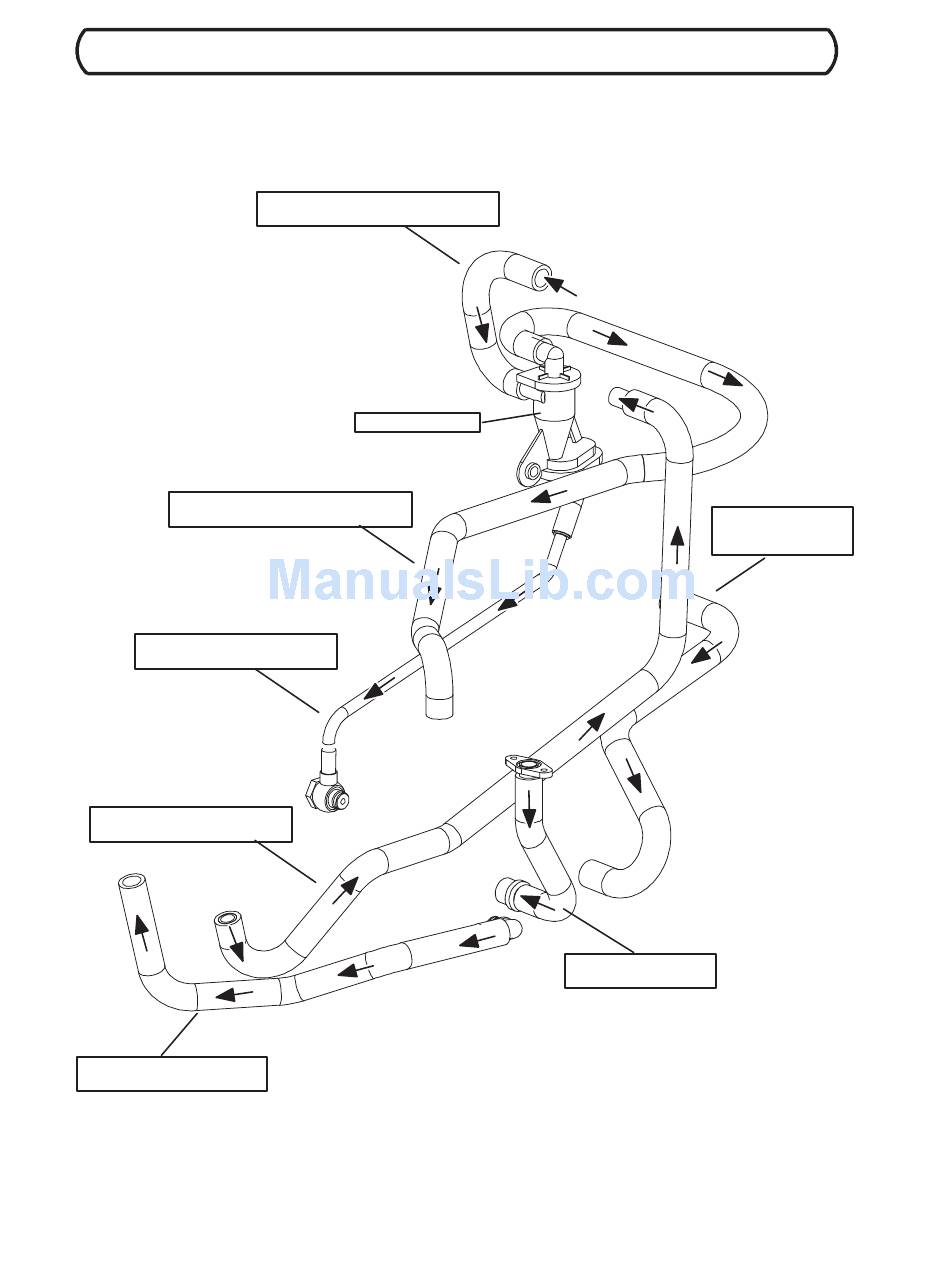

Oil Lubrication System Hose Routings
SUPPLY HOSE - - BLOW BY
OIL - - TANK - -TO - - OIL SEPARATOR
RIGHT SIDE
STERN
OIL SEPARATOR
SUPPLY HOSE - - BLOW BY
SUPPLY HOSE - - OIL
OIL SEPARATOR - - TO - - AIR INTAKE
OIL TANK - - TO - - OIL
PRESSURE PUMP
RETURN HOSE - - OIL
OIL SEPARATOR - - TO - - SUMP
BOW
SUPPLY HOSE - - OIL
OIL COOLER - - TO - - OIL TANK
RETURN HOSE - - OIL
TURBO- -TO- -SUMP
SUPPLY HOSE - - OIL
SUMP - - TO - - OIL COOLER
LEFT- -SIDE
4.67
2004 Four Stroke PWC Service Manual
