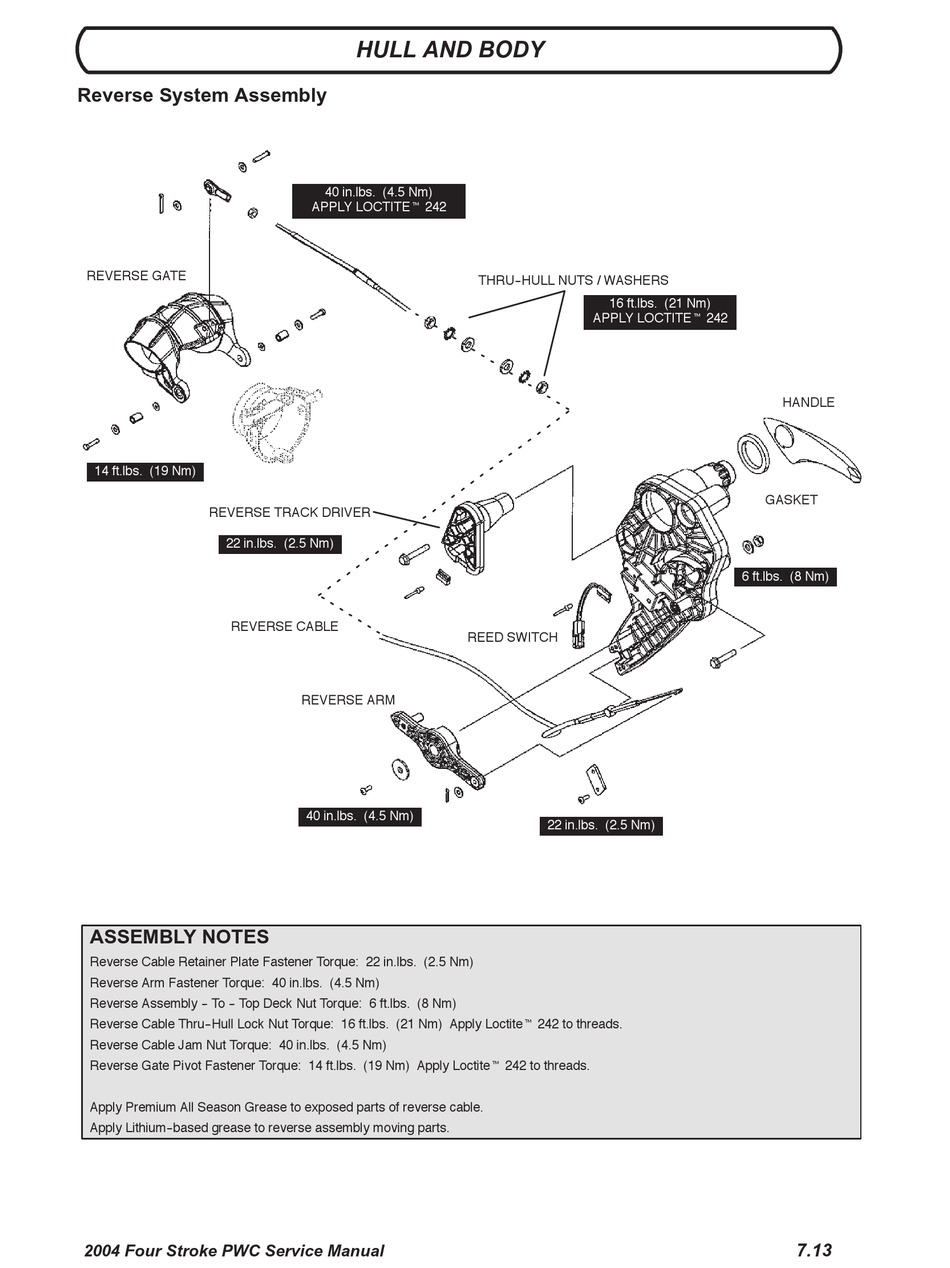

HULL AND BODY

Reverse System Assembly

40 in.lbs. (4.5 Nm)
APPLY LOCTITEt 242
REVERSE GATE
THRU- -HULL NUTS / WASHERS
16 ft.lbs. (21 Nm)
APPLY LOCTITEt 242
HANDLE
14 ft.lbs. (19 Nm)
GASKET
REVERSE TRACK DRIVER
22 in.lbs. (2.5 Nm)
6 ft.lbs. (8 Nm)
REVERSE CABLE
REED SWITCH
REVERSE ARM
40 in.lbs. (4.5 Nm)
22 in.lbs. (2.5 Nm)
ASSEMBLY NOTES
Reverse Cable Retainer Plate Fastener Torque: 22 in.lbs. (2.5 Nm)
Reverse Arm Fastener Torque: 40 in.lbs. (4.5 Nm)
Reverse Assembly - - To - - Top Deck Nut Torque: 6 ft.lbs. (8 Nm)
Reverse Cable Thru- -Hull Lock Nut Torque: 16 ft.lbs. (21 Nm) Apply Loctitet 242 to threads.
Reverse Cable Jam Nut Torque: 40 in.lbs. (4.5 Nm)
Reverse Gate Pivot Fastener Torque: 14 ft.lbs. (19 Nm) Apply Loctitet 242 to threads.
Apply Premium All Season Grease to exposed parts of reverse cable.
Apply Lithium- -based grease to reverse assembly moving parts.
