Polaris msx 110 Service Manual page 237

ECU
ECU 200
BLK/WHT
K1
RED/GRN
B1
BLU/RED
A2
GRY/RED
A1
BLU/OR
ECU 300
A1
BLU/GRN
B4
RED/WHT
G1
RED/GRN
C1
BLK/WHT
B1
H1
PEDAL POSITION UNIT (P .P .U.)
6 5 4 3 2 1
SPLICE 11
SPLICE 11
SPLICE 10
BLK/RED
1 2 3 4 5 6
ELECTRONIC THROTTLEBODY (E.T.B.)
P .P .U. INTERFACE BOX
A B C D E F
SPLICE 11
SPLICE 10

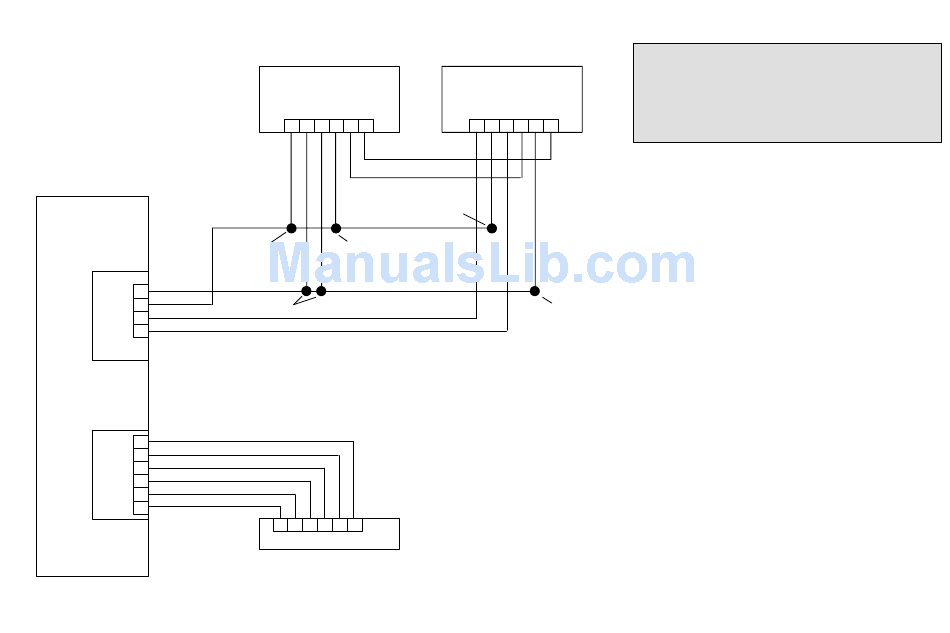

PEDAL POSITION UNIT / ELECTRONIC THROTTLEBODY LEGEND
BLK/WHT REFERENCE GROUND
RED/GRN 5V SUPPLY VOLTAGE
BLU/RED P .P .U. POSITION 2 RETURN SIGNAL
GRY/RED P .P .U. POSITION 1 RETURN SIGNAL
BLU/OR E.T.B. POSITION 1 RETURN SIGNAL
BLU/GRN E.T.B. POSITION 2 RETURN SIGNAL
RED/WHT E.T.B. THROTTLE PLATE POSITIVE (+) VOLTAGE
BLK/RED E.T.B. THROTTLE PLATE NEGATIVE (--- ) VOLTAGE
Rev. A 11/05/2003
