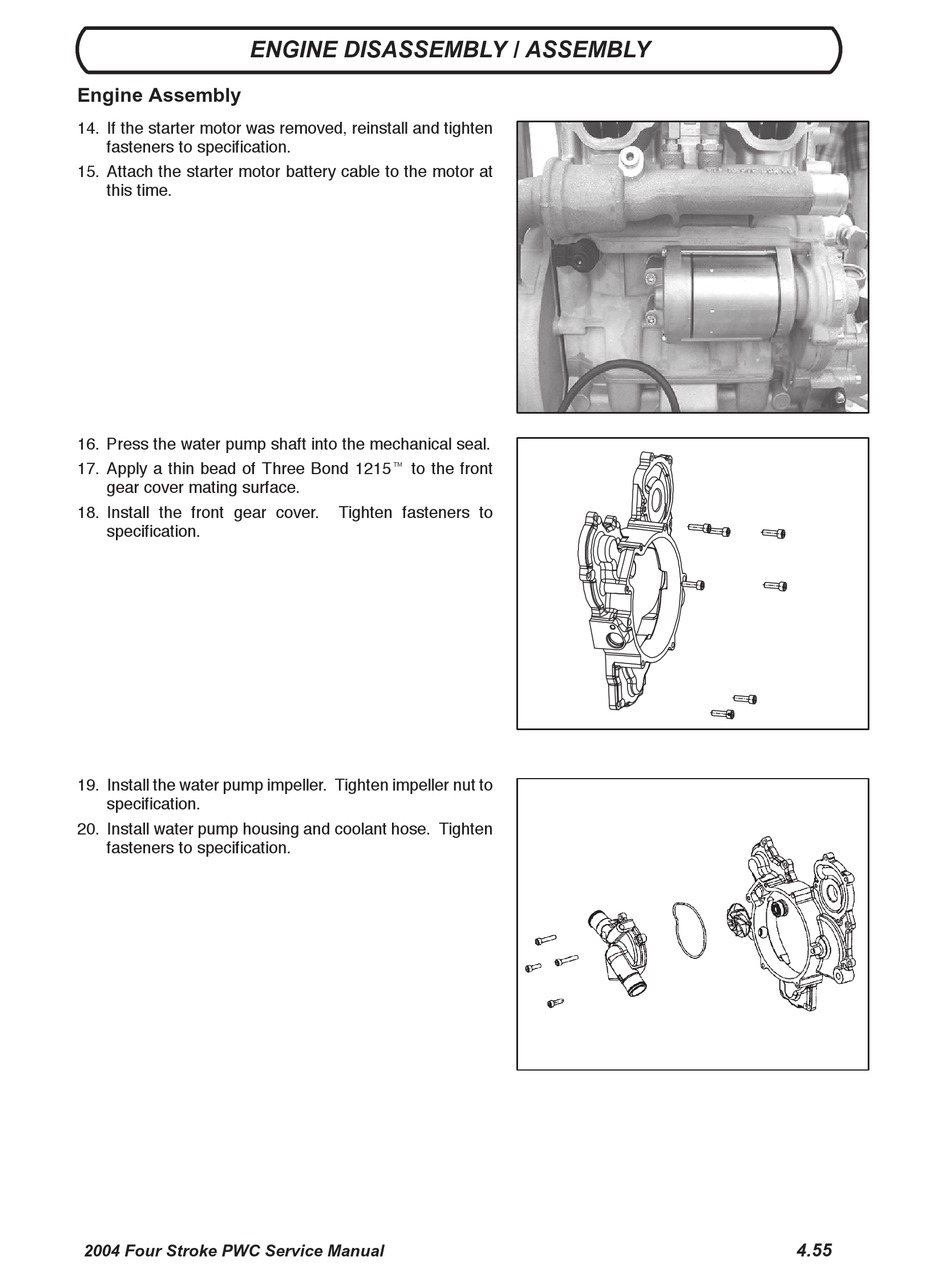

ENGINE DISASSEMBLY / ASSEMBLY
Engine Assembly
14. If the starter motor was removed, reinstall and tighten
fasteners to specification.
15. Attach the starter motor battery cable to the motor at
this time.
16. Press the water pump shaft into the mechanical seal.
17. Apply a thin bead of Three Bond 1215t to the front
gear cover mating surface.
18. Install the front gear cover.
specification.
19. Install the water pump impeller. Tighten impeller nut to
specification.
20. Install water pump housing and coolant hose. Tighten
fasteners to specification.
2004 Four Stroke PWC Service Manual
Tighten fasteners to
4.55
