ENGINE DISASSEMBLY / ASSEMBLY
Engine Assembly

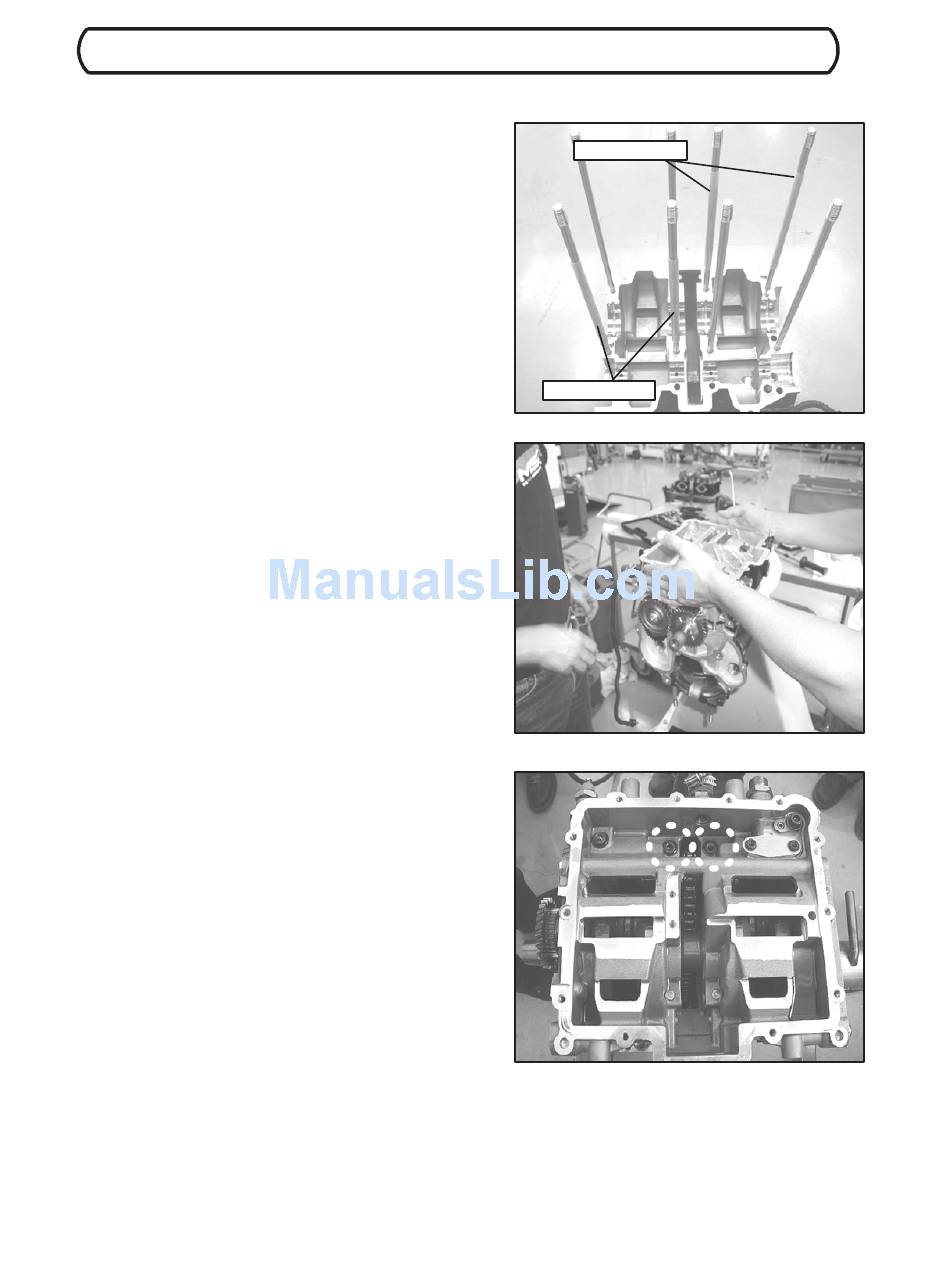

24. Verify the crankcase stud oil jackets are installed on the
four studs as outlined in the photo.
NOTE: Verify stud jackets are installed in the middle
of each stud.
25. Carefully install the lower crankcase on to the upper
crankcase.
26. Loosely install two of the four lower crankcase
fasteners.
4.46
STUD JACKETS
STUD JACKETS
