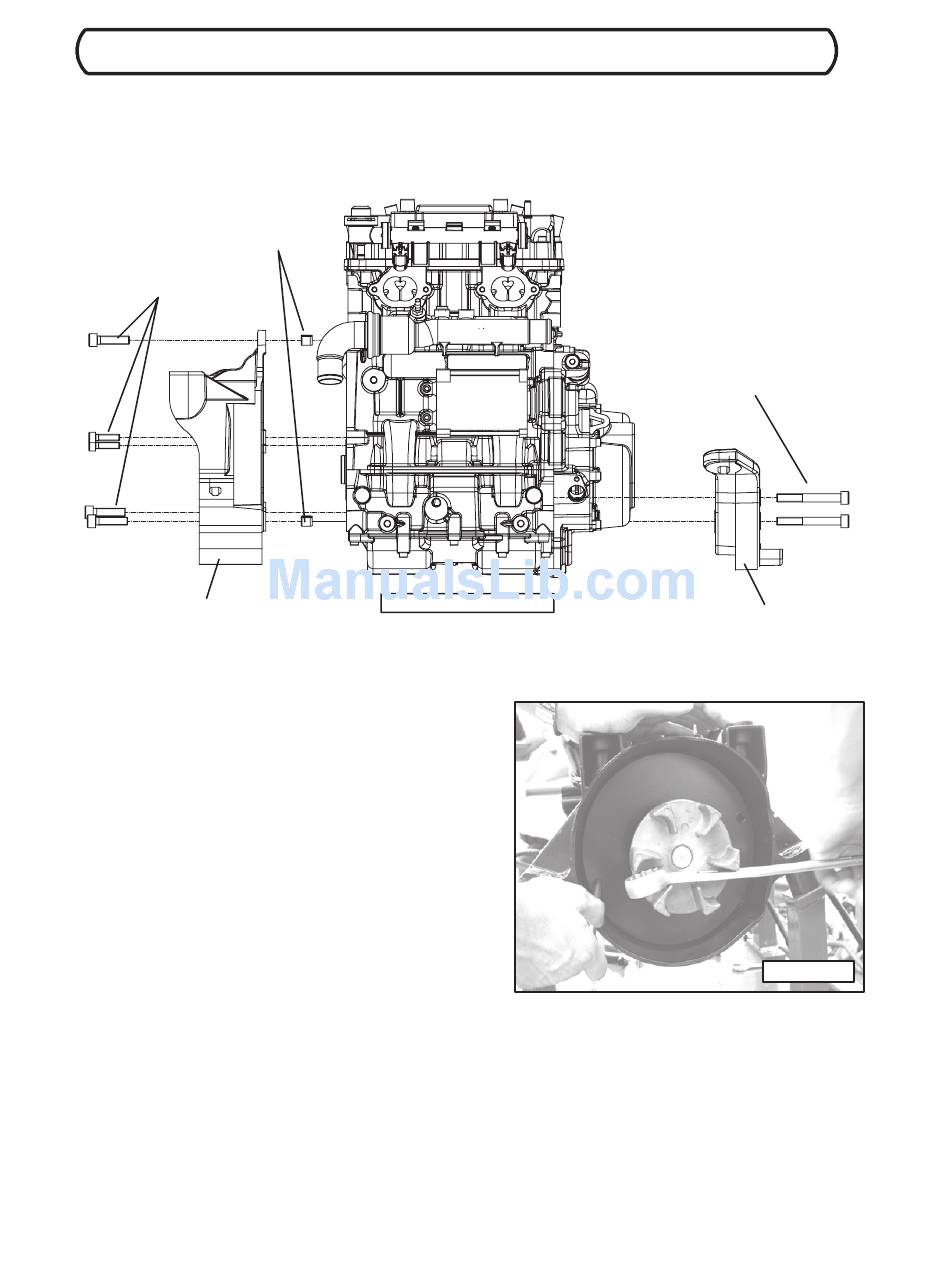

Engine Mounting Straps
The front and rear engine mounting straps are an integral part of the core engine assembly. Both straps must
be removed from the engine to proceed with any engine disassembly.
ALIGNMENT DOWELS
MOUNT FASTENERS x5
REAR ENGINE MOUNTING STRAP
1. The engine must remain suspended by the hoist
chains.
2. Remove the front engine mounting strap.
3. Insert a ratchet extension or metal dowel into the
balance plate hole. Rotate the engine until dowel
prevents engine from rotating counterclockwise.
(Photo O)
4. Place a pry bar or large open end wrench across the
coupler fingers. Rotate counter--clockwise to remove
coupler from PTO shaft.
NOTE: Wrapping the pry bar or wrench with a towel
will prevent damage to the coupler fingers.
5. With the balance plate still locked in position, continue
with the removal of the PTO stubshaft and balance
plate assembly.
