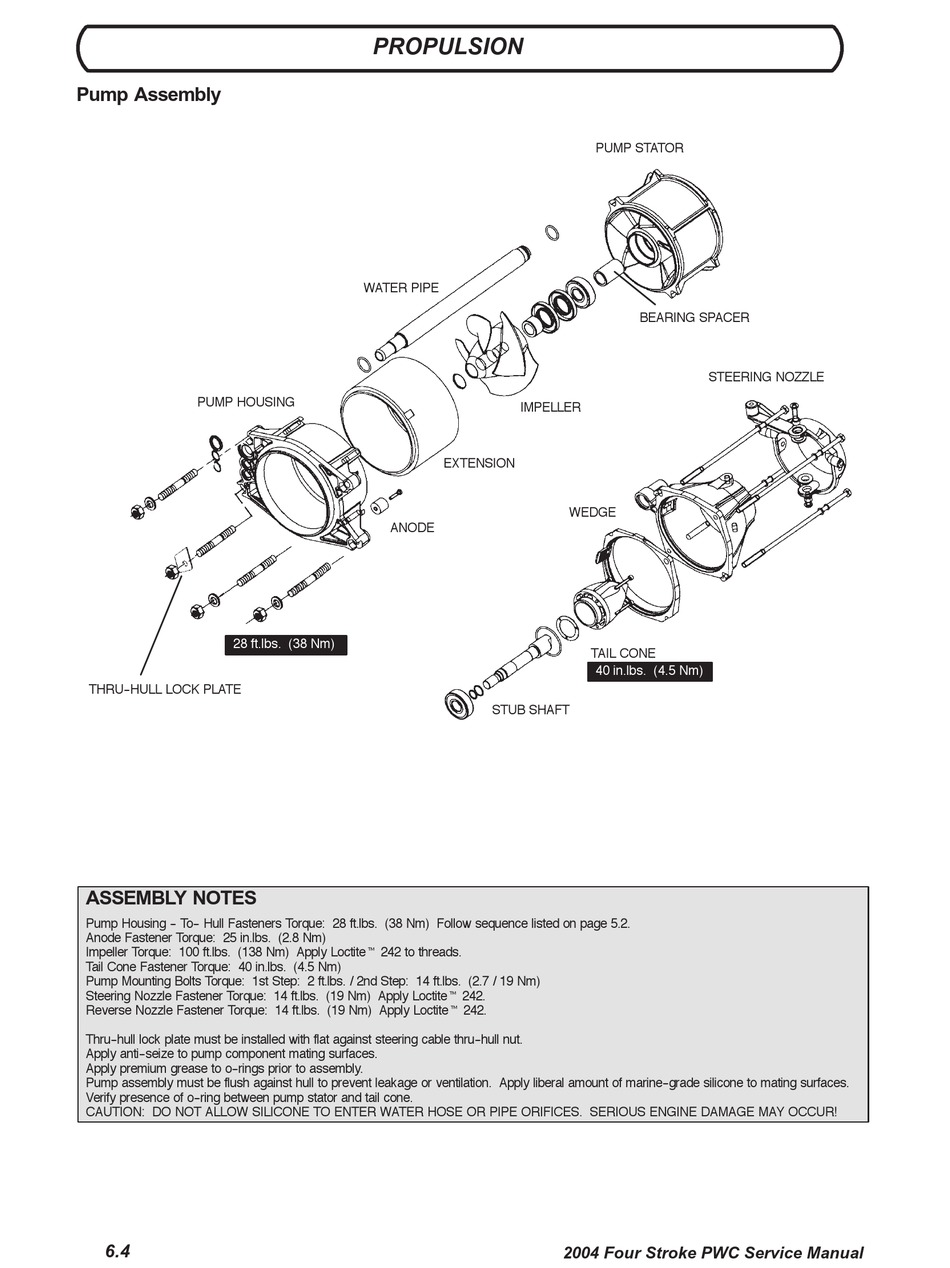

Pump Assembly
PUMP HOUSING
28 ft.lbs. (38 Nm)
THRU- -HULL LOCK PLATE
ASSEMBLY NOTES
Pump Housing - - To- - Hull Fasteners Torque: 28 ft.lbs. (38 Nm) Follow sequence listed on page 5.2.
Anode Fastener Torque: 25 in.lbs. (2.8 Nm)
Impeller Torque: 100 ft.lbs. (138 Nm) Apply Loctitet 242 to threads.
Tail Cone Fastener Torque: 40 in.lbs. (4.5 Nm)
Pump Mounting Bolts Torque: 1st Step: 2 ft.lbs. / 2nd Step: 14 ft.lbs. (2.7 / 19 Nm)
Steering Nozzle Fastener Torque: 14 ft.lbs. (19 Nm) Apply Loctitet 242.
Reverse Nozzle Fastener Torque: 14 ft.lbs. (19 Nm) Apply Loctitet 242.
Thru- -hull lock plate must be installed with flat against steering cable thru- -hull nut.
Apply anti- -seize to pump component mating surfaces.
Apply premium grease to o- -rings prior to assembly.
Pump assembly must be flush against hull to prevent leakage or ventilation. Apply liberal amount of marine- -grade silicone to mating surfaces.
Verify presence of o- -ring between pump stator and tail cone.
CAUTION: DO NOT ALLOW SILICONE TO ENTER WATER HOSE OR PIPE ORIFICES. SERIOUS ENGINE DAMAGE MAY OCCUR!
