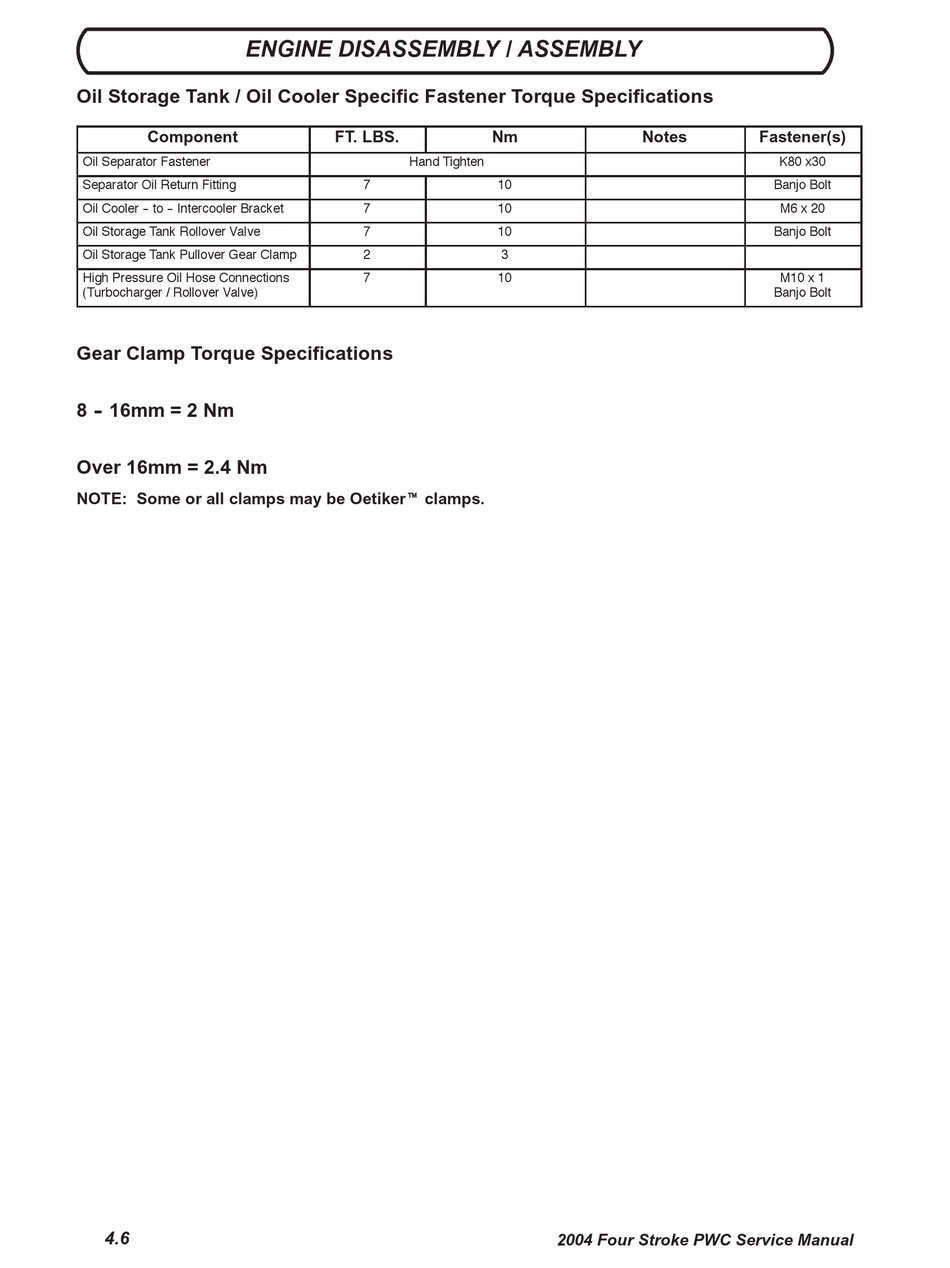

ENGINE DISASSEMBLY / ASSEMBLY
Oil Storage Tank / Oil Cooler Specific Fastener Torque Specifications
Component
Oil Separator Fastener
Separator Oil Return Fitting
Oil Cooler - - to - - Intercooler Bracket
Oil Storage Tank Rollover Valve
Oil Storage Tank Pullover Gear Clamp
High Pressure Oil Hose Connections
(Turbocharger / Rollover Valve)
Gear Clamp Torque Specifications
8 - - 16mm = 2 Nm
Over 16mm = 2.4 Nm
NOTE: Some or all clamps may be Oetikert clamps.
4.6
FT. LBS. Nm
Hand Tighten
7 10
7 10
7 10
2 3
7 10
Notes
2004 Four Stroke PWC Service Manual
Fastener(s)
K80 x30
Banjo Bolt
M6 x 20
Banjo Bolt
M10 x 1
Banjo Bolt
