Starter Motor - Polaris msx 110 Service Manual

ELECTRICAL SYSTEMS

Starter Motor

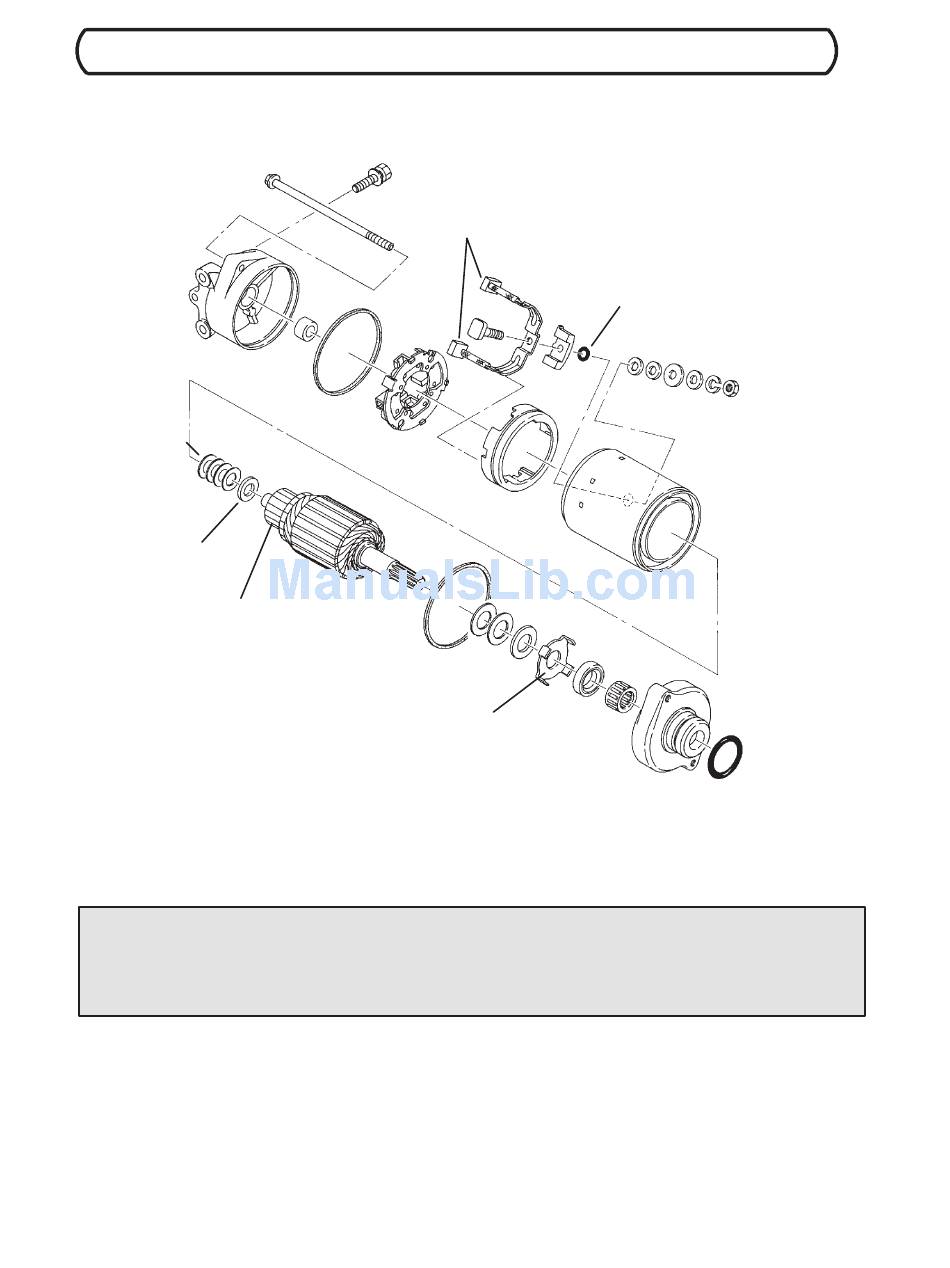

REAR HOUSING
BRUSHES
O RING
BRUSH PLATE
THRUST WASHERS (AR QTY.)
HOUSING
THRUST WASHER (1 QTY.)
ARMATURE
COMMUTATOR
O RING
PHENOLIC WASHER
FRONT HOUSING
O RING
ASSEMBLY NOTES
Through Bolt Torque: 36 in.lbs. (4 Nm)
Brush Length Service Limit: 5/ 16" (8mm)
Verify all parts are clean thoroughly prior to assembly.
Always use new o rings during reassembly.
8.13
2004 Four Stroke PWC Service Manual
