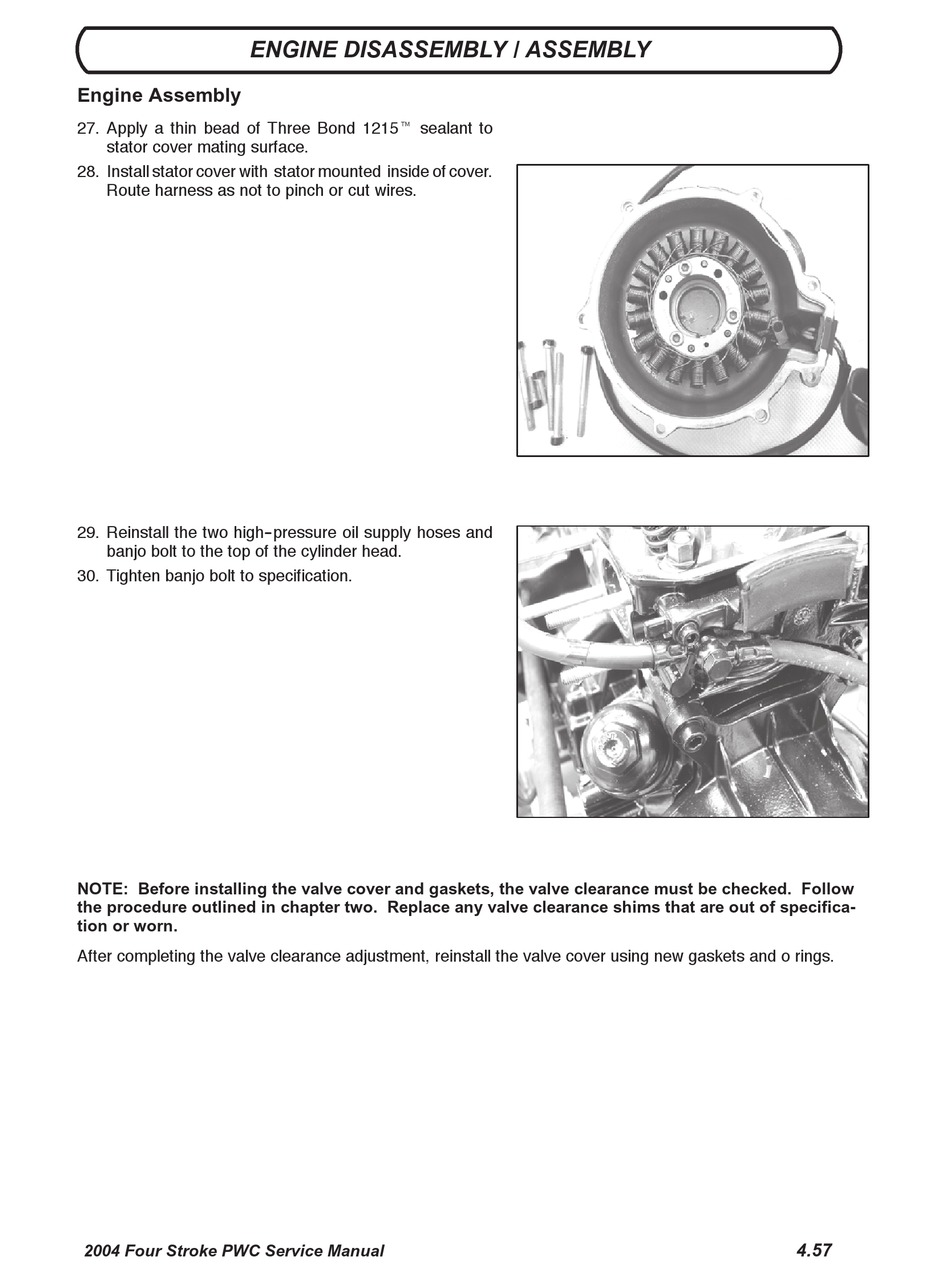

ENGINE DISASSEMBLY / ASSEMBLY
Engine Assembly
27. Apply a thin bead of Three Bond 1215t sealant to
stator cover mating surface.
28. Install stator cover with stator mounted inside of cover.
Route harness as not to pinch or cut wires.
29. Reinstall the two high--pressure oil supply hoses and
banjo bolt to the top of the cylinder head.
30. Tighten banjo bolt to specification.
NOTE: Before installing the valve cover and gaskets, the valve clearance must be checked. Follow
the procedure outlined in chapter two. Replace any valve clearance shims that are out of specifica-
tion or worn.
After completing the valve clearance adjustment, reinstall the valve cover using new gaskets and o rings.
2004 Four Stroke PWC Service Manual
4.57
