Driveshaft Alignment - - All Models
13. Carefully insert the tapered--end of the PUMP
ALIGNMENT TOOL, PN 2871343, through the pump
stator. Securely mount the pump stator to the pump
housing. (Photo D)
14. THE TAPERED END MUST FIT EASILY INTO THE
BORE USING LIGHT PUSHING FORCE. THE
SHAFT MUST FULLY ENGAGE AND HIT THE
CRANKSHAFT END. (Photo E)
If the Driveshaft Alignment Tool slides in and out of
the Driveshaft Alignment Coupler Tool as outlined in
STEP 16, adjustments to the engine strap mounting
shims ARE NOT REQUIRED.
In this case, remove the tools and proceed with the
REASSEMBLY PROCEDURES.
In the case where the Driveshaft Alignment Tool
DOES NOT fit into the Driveshaft Alignment Coupler
Tool as outlined in STEP 16; proceed with the
ALIGNMENT PROCEDURE.
2004 Four Stroke PWC Service Manual
PROPULSION
PUMP STATOR HOUSING

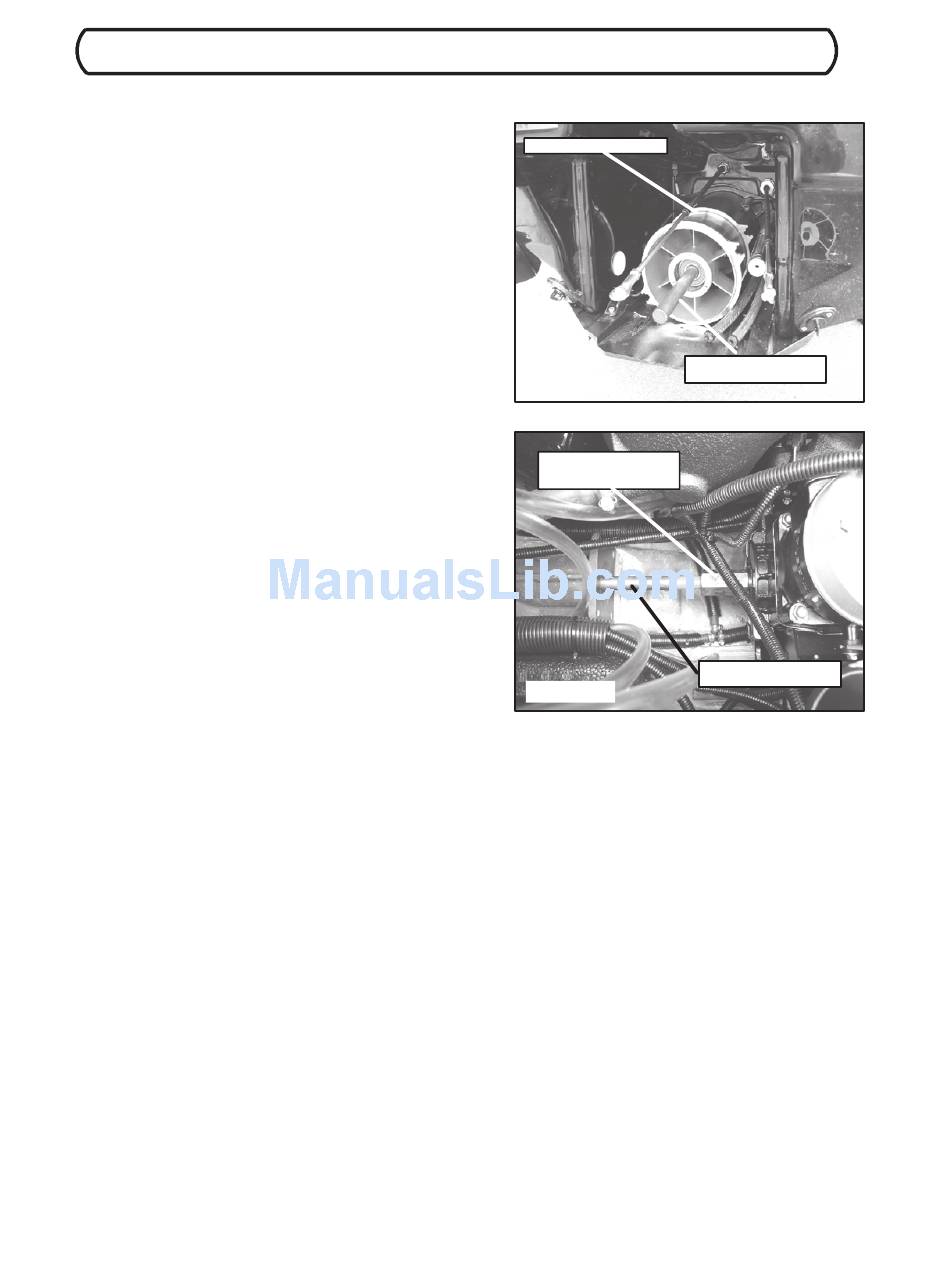

(Photo D )
DRIVESHAFT ALIGNMENT
COUPLER TOOL
PW- -46592
(Photo E )
DRIVESHAFT ALIGNMENT
TOOL 2871343
DRIVESHAFT ALIGNMENT
TOOL 2871343
6.17
