Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)

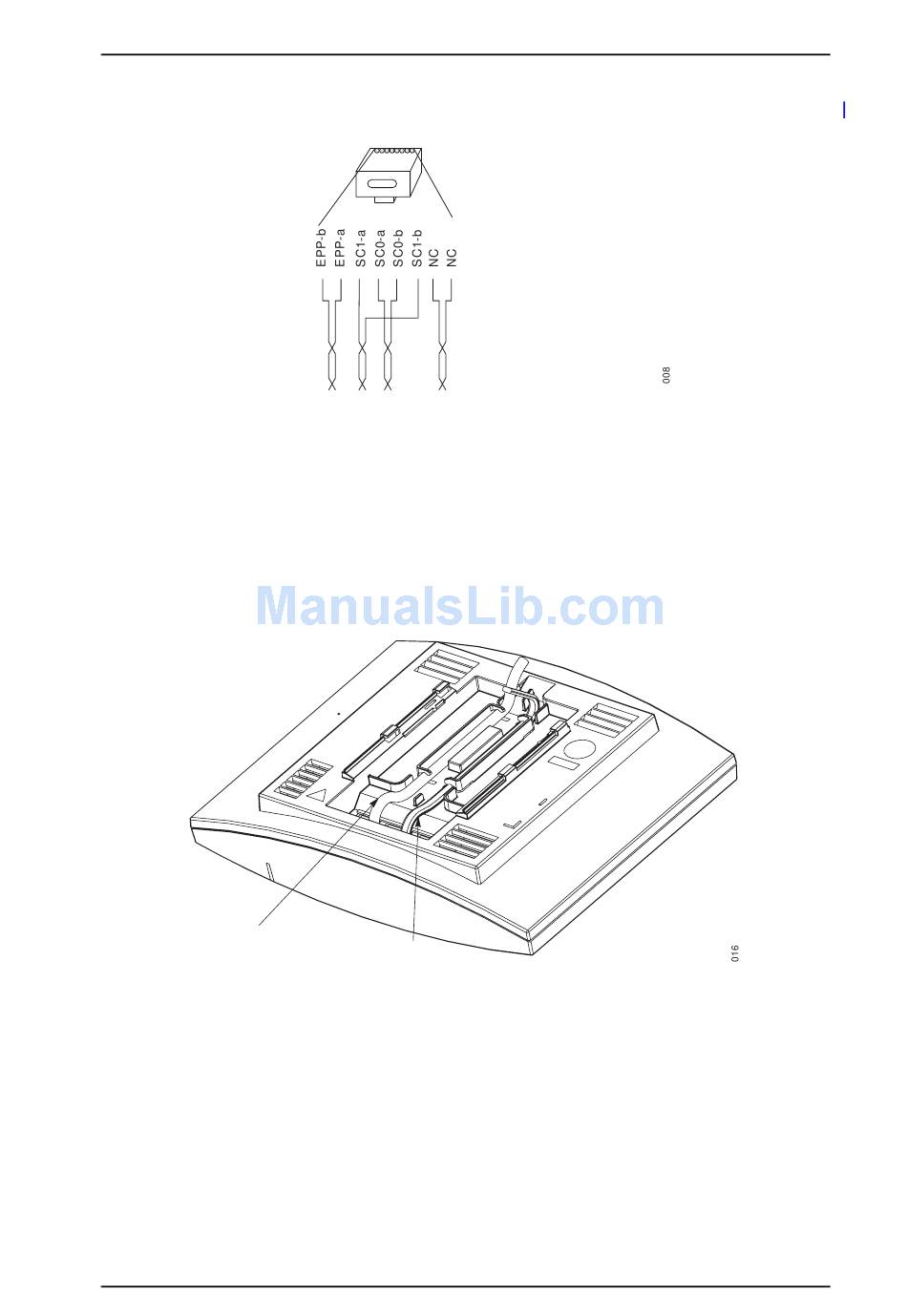

Pin the BS3x0/DB1 Cable
RJ45
modular jack
Figure 14. Connector pinning of the Data connector
IMPORTANT: If local power supply is used, the EPP cable pair must NOT be connected.
5.2.8

Connect the Base Station Cables

1 Only for IPBS1: If it is required that the cables enter the base station centrally from
above, guide the cables through the recess in the middle of the base station as
shown below.
Data cable
2 Plug the modular jack of the data cable into one of the data/power connectors.
3 When an AC-adapter is used:
• Plug the modular jack of the AC-adapter in one of the data/power connectors.
• Plug the AC-adapter into a wall-outlet.
5.2.9

Mount the Base Station

Hold the base station flat against the mounting bracket and move it downwards until it
clicks, see below.
15 February 2012 / Ver. H
Figure 11.
1 2 3 4 5 6 7 8
SC = Serial Channel
EPP = Express Power Pairs
NC = Not Connected
Power cable
(if used)
TD 92579EN
33
