IPBS2

The following versions of the IPBS2 are available:

• IPBS2 with internal antenna

• IPBS2 with external antennas
The IPBS2 is backward compatible with the IPBS1 when it comes to coverage,
functionality, accessories and mounting bracket. If an old IPBS1 has to be replaced you just
reuse the mounting bracket and install the IPBS2.
2.2.1 IPBS2 with Internal Antenna

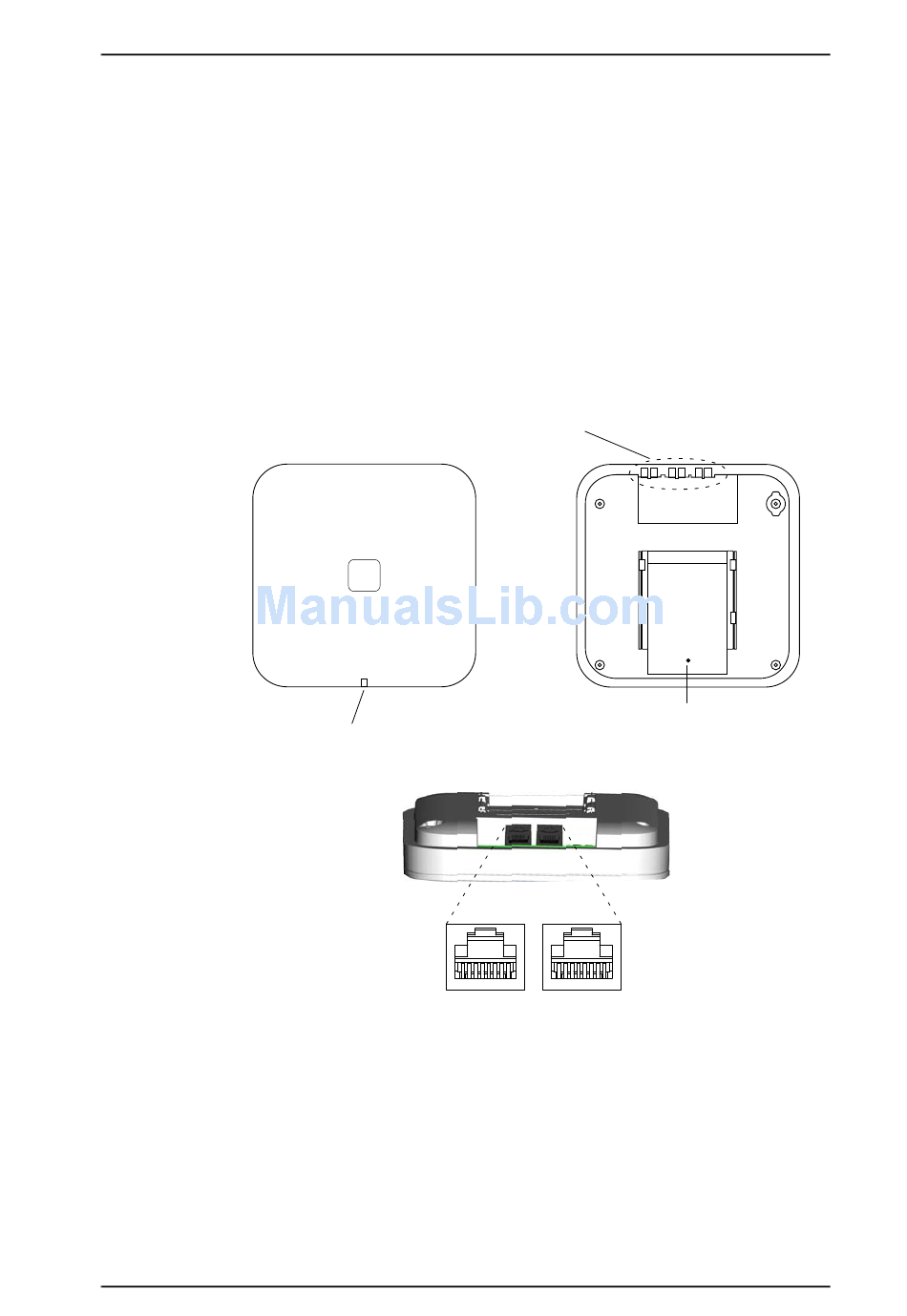

Figure 2. IPBS2 Overview
Contents of the Box
The box in which the IPBS2 is packed contains:
• An IPBS2 with integrated antennas
• A mounting bracket
• Two screws with wall plugs
15 February 2012 / Ver. H
Used for cable ties
to provide strain
relief for cables
Front view
LED
Back view while lying down
LAN
(RJ45)
Back view
Reset
Power Supply
(RJ45)
