Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
2.4

DECT Base Station (BS3x0)

The following versions are available:
• BS330 with Internal antenna
• BS340 with External antennas
2.4.1

DECT Base Station

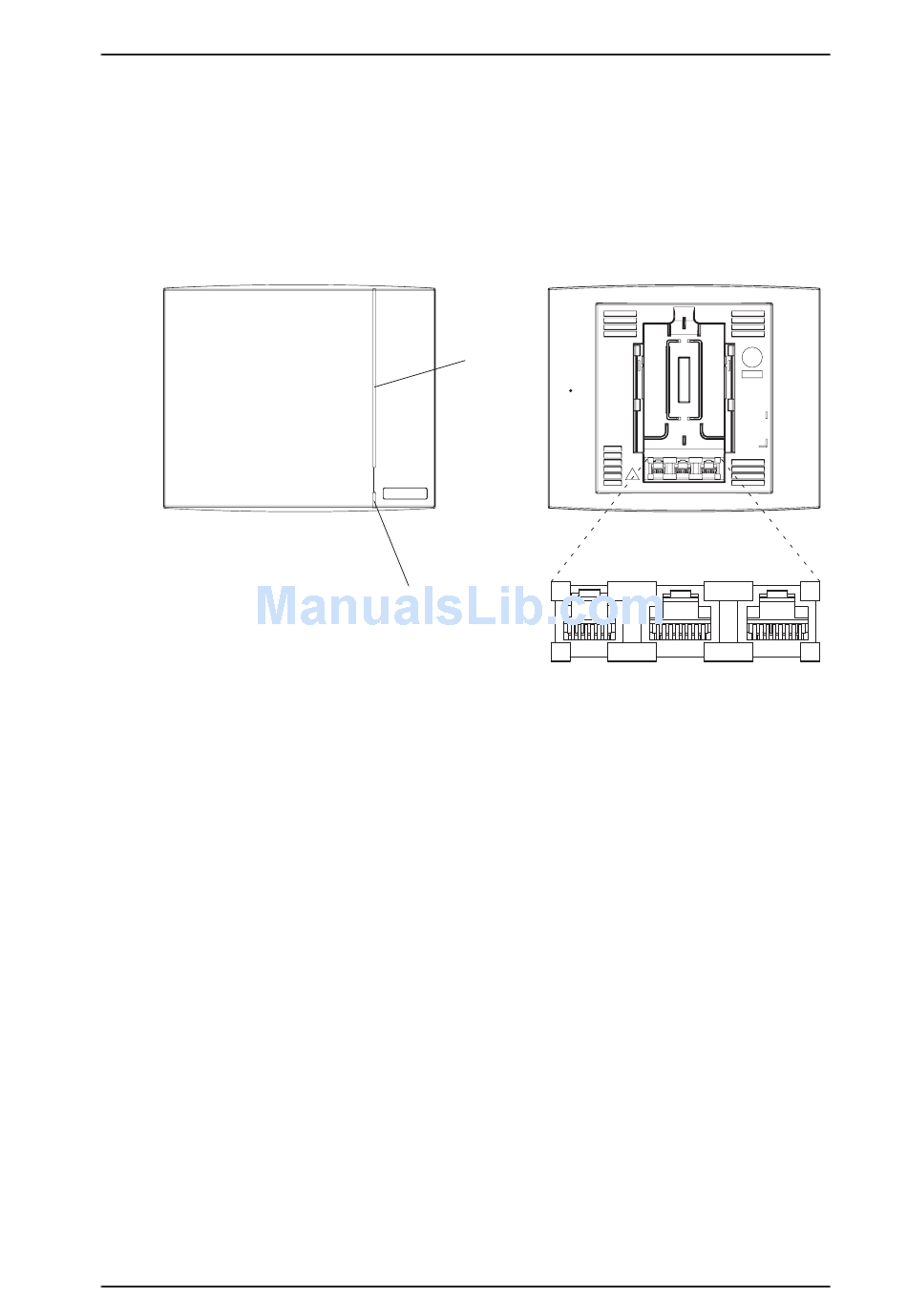

Front viewBack view
Figure 5. BS3x0 Overview
Contents of the Box
The box in which the base station is packed contains:
• A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
Note: For more information about power distribution, see
page 34.
15 February 2012 / Ver. H
LED2
LED1
(RJ12)
TD 92579EN
Test Data/Power Data/Power
(RJ45)
5.3 Power the Base Station
(RJ45)
on
13
