Fix The Mounting Bracket To A Ceiling; Fix The Mounting Bracket To A Pole Or Beam - ASCOM IPBS Installation And Operation Manual

Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway (software version 5.0.x)
Ceiling

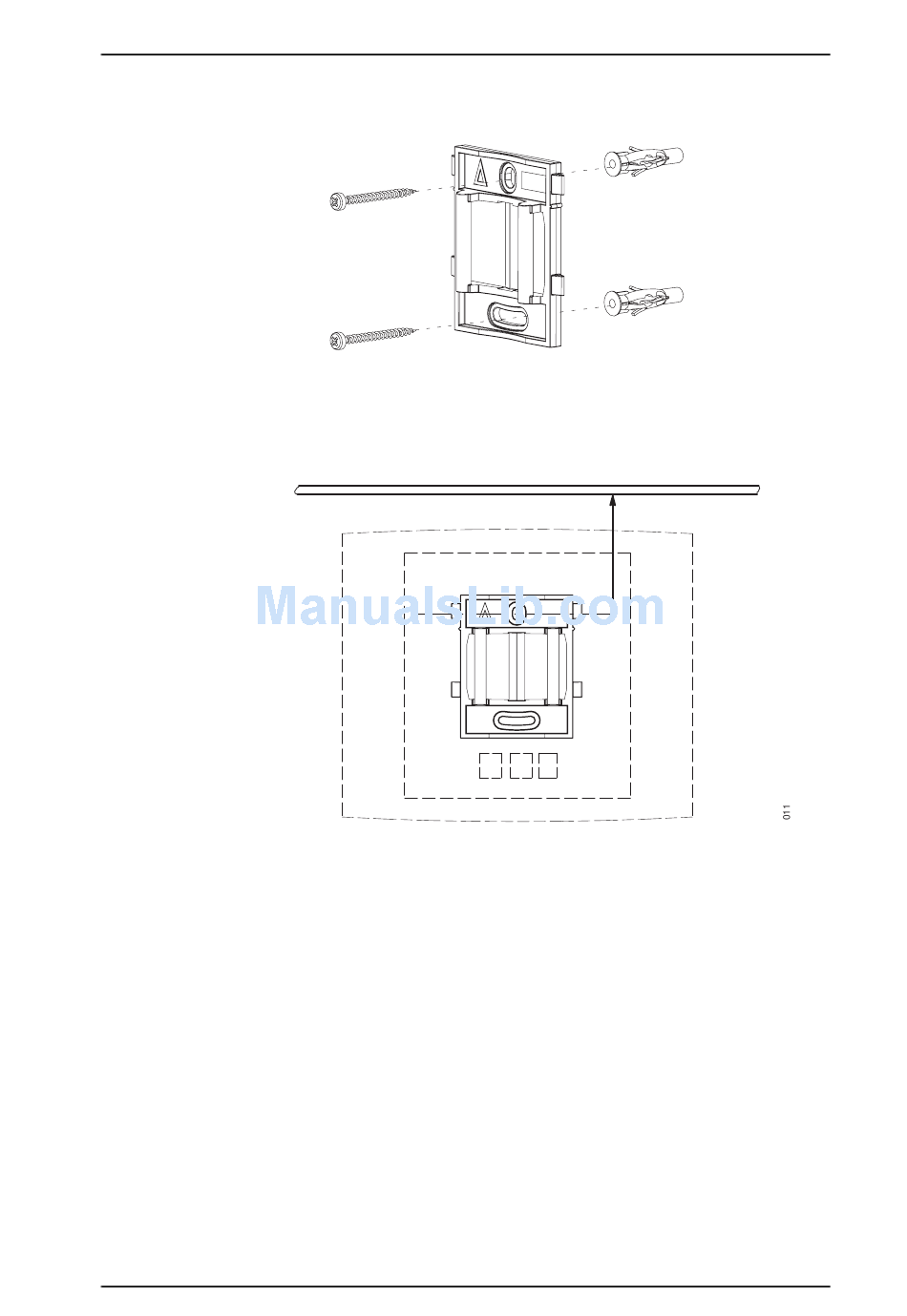

Figure 8. Fixing the mounting bracket to a wall.
5.2.2

Fix the Mounting Bracket to a Ceiling

Fixing to a ceiling is done in the same way as the a wall, see
Bracket to a
make sure that the front of the base station points downwards.
5.2.3

Fix the Mounting Bracket to a Pole or Beam

The mounting bracket can be fixed to a pole (diameter ≥ 45 mm) or a beam (wider than
50 mm) by means of a strap or flexible metal band less than 30 mm wide. The strap or
flexible metal band is not included in the box.
1 Fix the mounting bracket to a pole or beam using the metal band, see
page 29.
15 February 2012 / Ver. H
Figure 6.
Wall. When the base station has to be positioned above a suspended ceiling,
65 mm (IPBS1)
100 mm (IPBS2)
TOP
5.2.1 Fix the Mounting
TD 92579EN
figure 7 on
28
