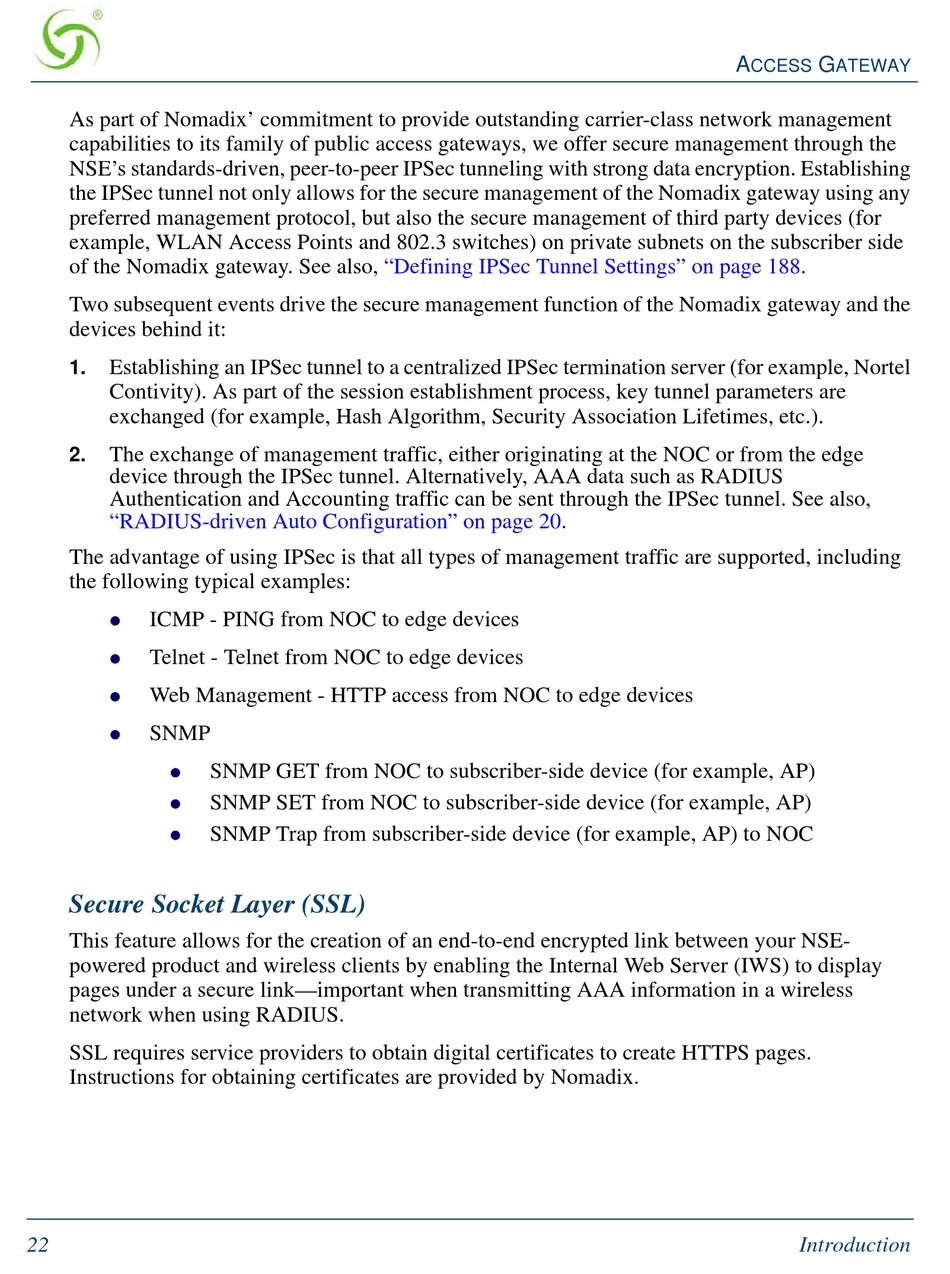

Secure Socket Layer (Ssl) - Nomadix Access gateway User Manual

As part of Nomadix' commitment to provide outstanding carrier-class network management
capabilities to its family of public access gateways, we offer secure management through the
NSE's standards-driven, peer-to-peer IPSec tunneling with strong data encryption. Establishing
the IPSec tunnel not only allows for the secure management of the Nomadix gateway using any
preferred management protocol, but also the secure management of third party devices (for
example, WLAN Access Points and 802.3 switches) on private subnets on the subscriber side
of the Nomadix gateway. See also,
Two subsequent events drive the secure management function of the Nomadix gateway and the
devices behind it:
Establishing an IPSec tunnel to a centralized IPSec termination server (for example, Nortel
1.
Contivity). As part of the session establishment process, key tunnel parameters are
exchanged (for example, Hash Algorithm, Security Association Lifetimes, etc.).
2. The exchange of management traffic, either originating at the NOC or from the edge
device through the IPSec tunnel. Alternatively, AAA data such as RADIUS
Authentication and Accounting traffic can be sent through the IPSec tunnel. See also,
"RADIUS-driven Auto Configuration" on page
The advantage of using IPSec is that all types of management traffic are supported, including
the following typical examples:
ICMP - PING from NOC to edge devices

Telnet - Telnet from NOC to edge devices

Web Management - HTTP access from NOC to edge devices

SNMP





Secure Socket Layer (SSL)

This feature allows for the creation of an end-to-end encrypted link between your NSE-
powered product and wireless clients by enabling the Internal Web Server (IWS) to display
pages under a secure link—important when transmitting AAA information in a wireless
network when using RADIUS.
SSL requires service providers to obtain digital certificates to create HTTPS pages.
Instructions for obtaining certificates are provided by Nomadix.
22
"Defining IPSec Tunnel Settings" on page
SNMP GET from NOC to subscriber-side device (for example, AP)
SNMP SET from NOC to subscriber-side device (for example, AP)
SNMP Trap from subscriber-side device (for example, AP) to NOC
20.
A G
CCESS ATEWAY
188.
Introduction
