To view the UDP Statistics, go to the Web Management Interface, click on
click on
UDP.

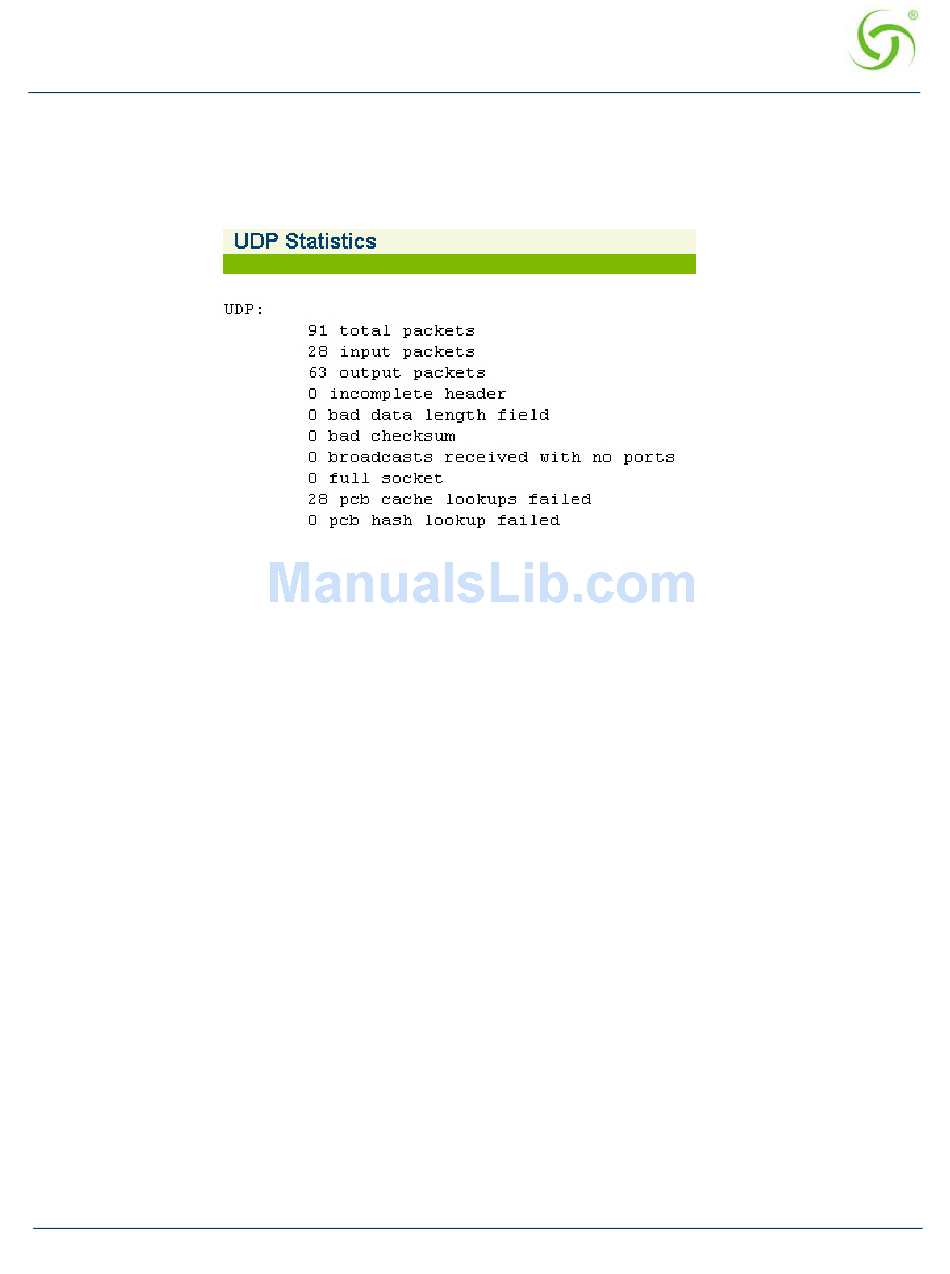

The UDP Statistics screen appears:

Port-Location Menu

The Port Location capabilities on the NSE have been enhanced. It is now possible to define a
policy on a port. The billing methods (RADIUS, Credit Card, PMS, L2TP Tunneling) and the
billing plans available on each port can now be individually configured.
This ability allows for having different billing methods and billing plans on different ports of
the NSE. A practical application of this feature is to have a normal hotel room with a plan A
that is $9.99 for a day with PMS billing and have a meeting room with a plan of $14.99 an hour
with Credit Card billing.
This new feature is called Port-based Policies. In order for the port-based policies to work it
has to be enabled from the Configuration->AAA page.
System Administration
Network Info , then
