Moving Through Program Mode Tiers And Menus - GE Interlogix Concord Security System Installation Instructions Manual

25
Button
C
Enters pauses when programming phone numbers.
D Deletes certain programmed settings.
0 thru 9
Enter numeric values wherever needed.
1 & 2 Select off (1) or on (2) wherever needed.
1 thru 6 Press and hold to enter alphabetical characters A thru F for account numbers.
7 & 9 Press and hold to enter * (7) or # (9) for phone numbers.

Moving Through Program Mode Tiers and Menus

There are two basic tiers of programming menus. Tier 1 menus are accessible immediately after
entering program mode (see Figure 30).
Tier 1
Menu
System
Programming
#
Arrows pointing right represent pressing B to advance forward through the menus. Pressing A
moves through the menus in reverse.
The arrow below the SYSTEM PROGRAMMING
gramming menus. Only when
menus (see Figure 31).
Tier 2
Menu
Security
#
Touchpad
Options
#
Accessory
Modules
#
Again, arrows pointing right represent pressing B to advance forward through the menus. Press-
ing A moves through the menus in reverse.
Arrows below each menu represent pressing # to advance to those settings that pertain to that
menu. Only when a specific menu is displayed can you advance to those settings. For example,
from the SENSORS menu pressing # gives you access to learning sensors, programming sensor
text, deleting sensors, and viewing/editing sensor programming. Settings in tier 2 menus can also
be accessed by entering shortcut numbers. See the section, "Programming Tier 2 Menu Items"
for complete details.
Table 6: Touchpad Button Functions
Programming Function
B B
Demo Kit
Partition 1
Off/On Copy
A A
*

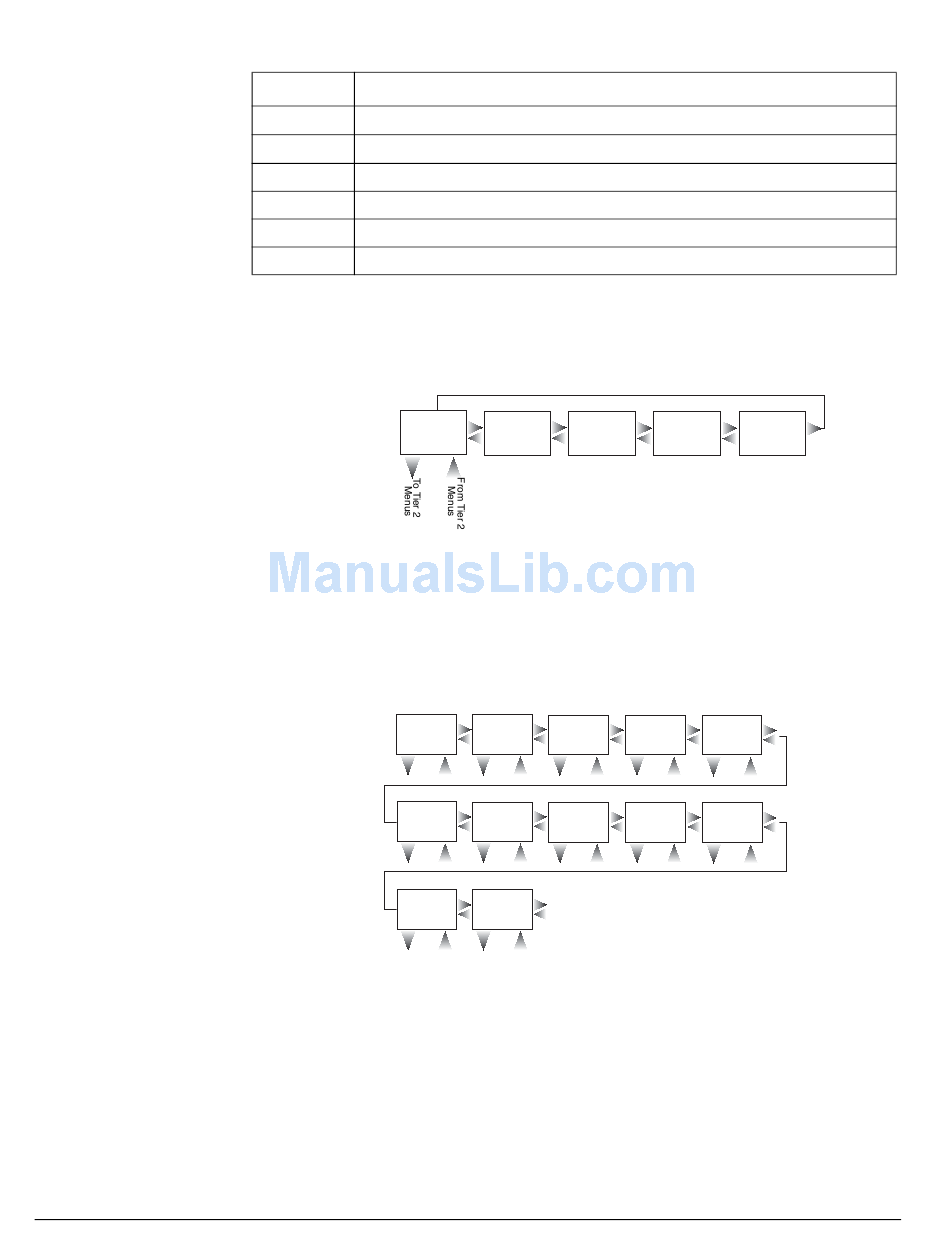

Figure 30. Tier 1 Program Menus
menu represents pressing # to advance to tier 2 pro-
SYSTEM PROGRAMMING
B B
Phone
Phones
Options
A A
* * *
#
#
B B
Siren
Reporting
Options
A A
* *
*
#
#
B B
Onboard
To Security Menu
Options
From Security Menu
A A
* *
#
Figure 31. Tier 2 Program Menus
B B
Exit
Clear
Programming
Memory
Ready
A A
is displayed can you advance to tier 2
B B
B
Light
Timers
Control
A A
A
*
*
# #
B B B
Audio
Sensors
Verification
A A
A
* *
# #
6 0 7 3 4 g 3 1 0 d . d s f
B
