Phone Test (02000)
This setting determines if the user can, at any time, test the communica-
tion from the panel to the central station or a pager by entering 8 +
+ 2 (# + 8 + CODE + 2 from a touch-tone phone).
CODE
Note
For UL 1610 & 1635 listed installations, this feature must be set to on.
Auto Phone Test (02001)
This setting determines if the panel sends a phone test automatically to the
central station or a pager on a predetermined schedule. (Refer to the
"Phone Test Freq." and "Next Phone Test" settings found under
).
GLOBAL
Note
For UL 1610 & 1635 listed installations, this feature must be set to on.
Auto Test Reset (02002)
This setting determines whether or not the Auto Phone Test interval is reset after any
successful report to the central monitoring station. (Refer to the "Phone Test Freq."
and "Next Phone Test" settings found under
When this feature is on, the panel considers any successful report to the central mon-
itoring station to be a successful phone test. Thus, any panel report resets the Next
Phone Test setting to the Phone Test Freq. value. The panel only conducts an Auto
Phone Test if no other reports have been made during the Phone Test Freq. time
period.
Note
Phone Test Freq must be set to 2 or higher for Auto Test Reset to work.
When this feature is off, an Auto Phone Test is always conducted according to the
schedule of the Phone Test Freq. setting, even if the panel makes other reports to the
central monitoring station during that time period.
Comm Failure (02003)
This setting determines whether the panel activates trouble beeps to alert users on
the premises that communication to the central station failed. Failure notification
occurs after the third unsuccessful reporting attempt to the central station/pager.
If a Phone Supervision Card (60-789) is installed, failure notification can occur
immediately if inadequate phone line voltage is detected upon the initial dialing
attempt.
Note
For UL Listed installations, Comm Failure must be turned on.
35

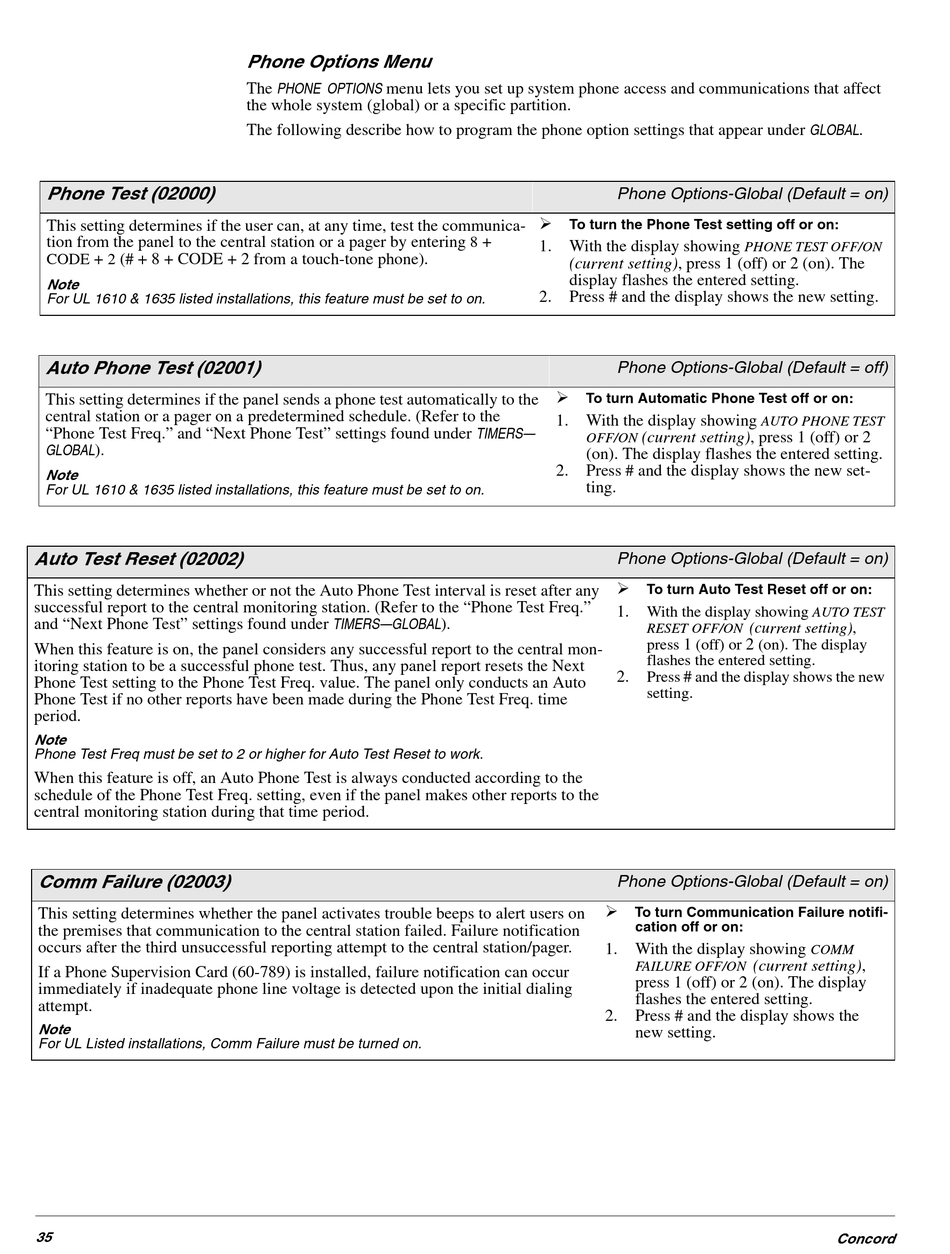

Phone Options Menu

The menu lets you set up system phone access and communications that affect
PHONE OPTIONS
the whole system (global) or a specific partition.
The following describe how to program the phone option settings that appear under
TIMERS—GLOBAL
Phone Options-Global (Default = on)
¾
To turn the Phone Test setting off or on:
1. With the display showing
(current setting), press 1 (off) or 2 (on). The
display flashes the entered setting.
2. Press # and the display shows the new setting.
Phone Options-Global (Default = off)
¾
To turn Automatic Phone Test off or on:
1. With the display showing
TIMERS—
OFF/ON
(on). The display flashes the entered setting.
2. Press # and the display shows the new set-
ting.
Phone Options-Global (Default = on)
¾
1.
).
2.
Phone Options-Global (Default = on)
¾
1.
2.
GLOBAL
PHONE TEST OFF/ON
AUTO PHONE TEST
(current setting), press 1 (off) or 2
To turn Auto Test Reset off or on:
With the display showing
AUTO TEST
(current setting),
RESET OFF/ON
press 1 (off) or 2 (on). The display
flashes the entered setting.
# and the display shows the new
Press
setting.
To turn Communication Failure notifi-
cation off or on:
With the display showing
COMM
(current setting),
FAILURE OFF/ON
press 1 (off) or 2 (on). The display
flashes the entered setting.
Press # and the display shows the
new setting.
.
