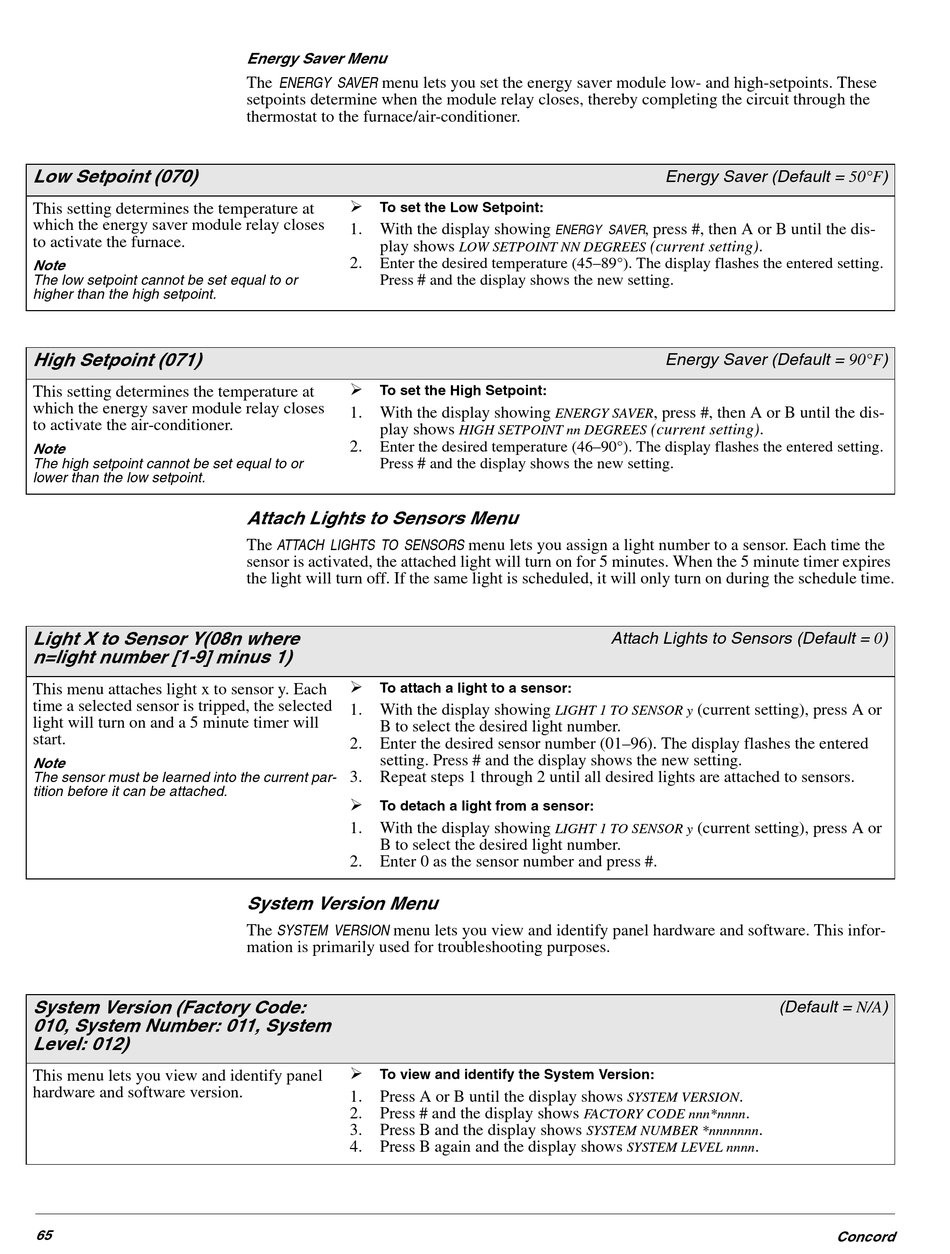

Low Setpoint (070)
This setting determines the temperature at
which the energy saver module relay closes
to activate the furnace.
Note
The low setpoint cannot be set equal to or
higher than the high setpoint.
High Setpoint (071)
This setting determines the temperature at
which the energy saver module relay closes
to activate the air-conditioner.
Note
The high setpoint cannot be set equal to or
lower than the low setpoint.
Light X to Sensor Y(08n where
n=light number [1-9] minus 1)
This menu attaches light x to sensor y. Each
time a selected sensor is tripped, the selected
light will turn on and a 5 minute timer will
start.
Note
The sensor must be learned into the current par-
tition before it can be attached.
System Version (Factory Code:
010, System Number: 011, System
Level: 012)
This menu lets you view and identify panel
hardware and software version.
65
Energy Saver Menu
The menu lets you set the energy saver module low- and high-setpoints. These
ENERGY SAVER
setpoints determine when the module relay closes, thereby completing the circuit through the
thermostat to the furnace/air-conditioner.
¾
To set the Low Setpoint:
1. With the display showing
play shows
2.
Enter the desired temperature (45–89°). The display flashes the entered setting.
# and the display shows the new setting.
Press
¾
To set the High Setpoint:
1. With the display showing
play shows
2.
Enter the desired temperature (46–90°). The display flashes the entered setting.
# and the display shows the new setting.
Press

Attach Lights to Sensors Menu

The ATTACH LIGHTS TO SENSORS
sensor is activated, the attached light will turn on for 5 minutes. When the 5 minute timer expires
the light will turn off. If the same light is scheduled, it will only turn on during the schedule time.
¾
To attach a light to a sensor:
1. With the display showing
B to select the desired light number.
2. Enter the desired sensor number (01–96). The display flashes the entered
setting. Press # and the display shows the new setting.
3. Repeat steps 1 through 2 until all desired lights are attached to sensors.
¾
To detach a light from a sensor:
1. With the display showing
B to select the desired light number.
2. Enter 0 as the sensor number and press #.

System Version Menu

The menu lets you view and identify panel hardware and software. This infor-
SYSTEM VERSION
mation is primarily used for troubleshooting purposes.
¾
To view and identify the System Version:
1. Press A or B until the display shows
2. Press # and the display shows
3. Press B and the display shows
4. Press B again and the display shows
ENERGY SAVER
LOW SETPOINT NN DEGREES
ENERGY SAVER
HIGH SETPOINT nn DEGREES
menu lets you assign a light number to a sensor. Each time the
Attach Lights to Sensors (Default = 0)
LIGHT 1 TO SENSOR y
LIGHT 1 TO SENSOR y
SYSTEM VERSION
FACTORY CODE nnn*nnnn
SYSTEM NUMBER *nnnnnnn
SYSTEM LEVEL nnnn
Energy Saver (Default = 50°F)
, press #, then A or B until the dis-
(current setting).
Energy Saver (Default = 90°F)
, press #, then A or B until the dis-
(current setting).
(current setting), press A or
(current setting), press A or
(Default = N/A)
.
.
.
.
